4JB1/4JB1T/4JB1TC/4JG2 – ENGINE 6A1 – 73

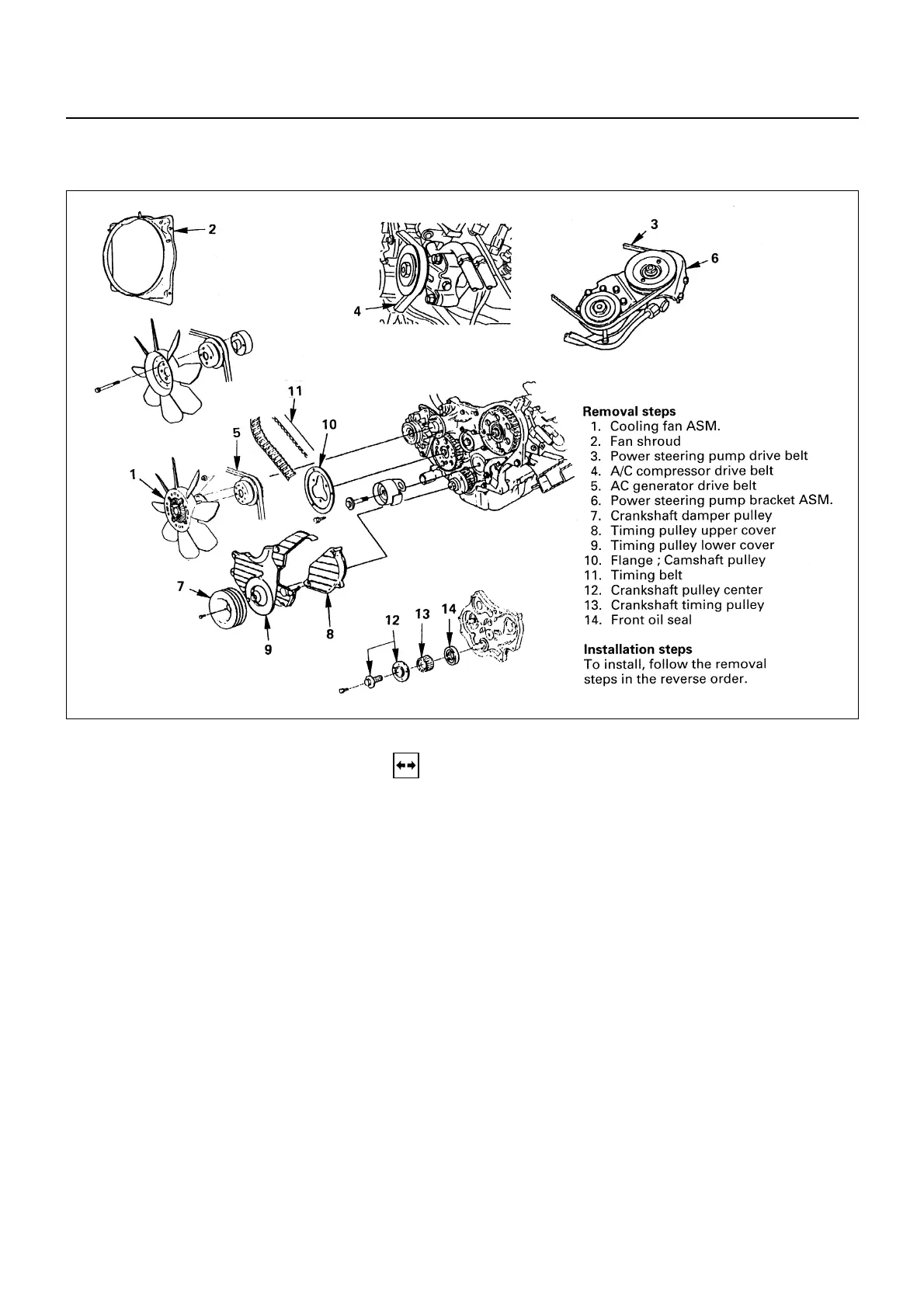

CRANKSHAFT FRONT OIL SEAL (Belt Drive Type)
REMOVAL
Preparation:
• Disconnect battery ground cable.
• Drain coolant.
1. Cooling Fan Assembly
2. Fan Shroud
3. Power Steering Pump Drive Belt (P/S Model)
4. A/C Compressor Drive Belt (A/C Model)
5. AC Generator Drive Belt
6. Power Steering Pump Bracket Assembly (P/S Model)
7. Crankshaft Damper Pulley
8. Timing Pulley Upper Cover
9. Timing Pulley Lower Cover
10. Flange; Camshaft Pulley
11. Timing Belt
Above works refer to “TIMING BELT (Belt Type)” Section
in this manual.
6A1-73-1.tif
