6A1 – 12 4JB1/4JB1T/4JB1TC/4JG2 - ENGINE

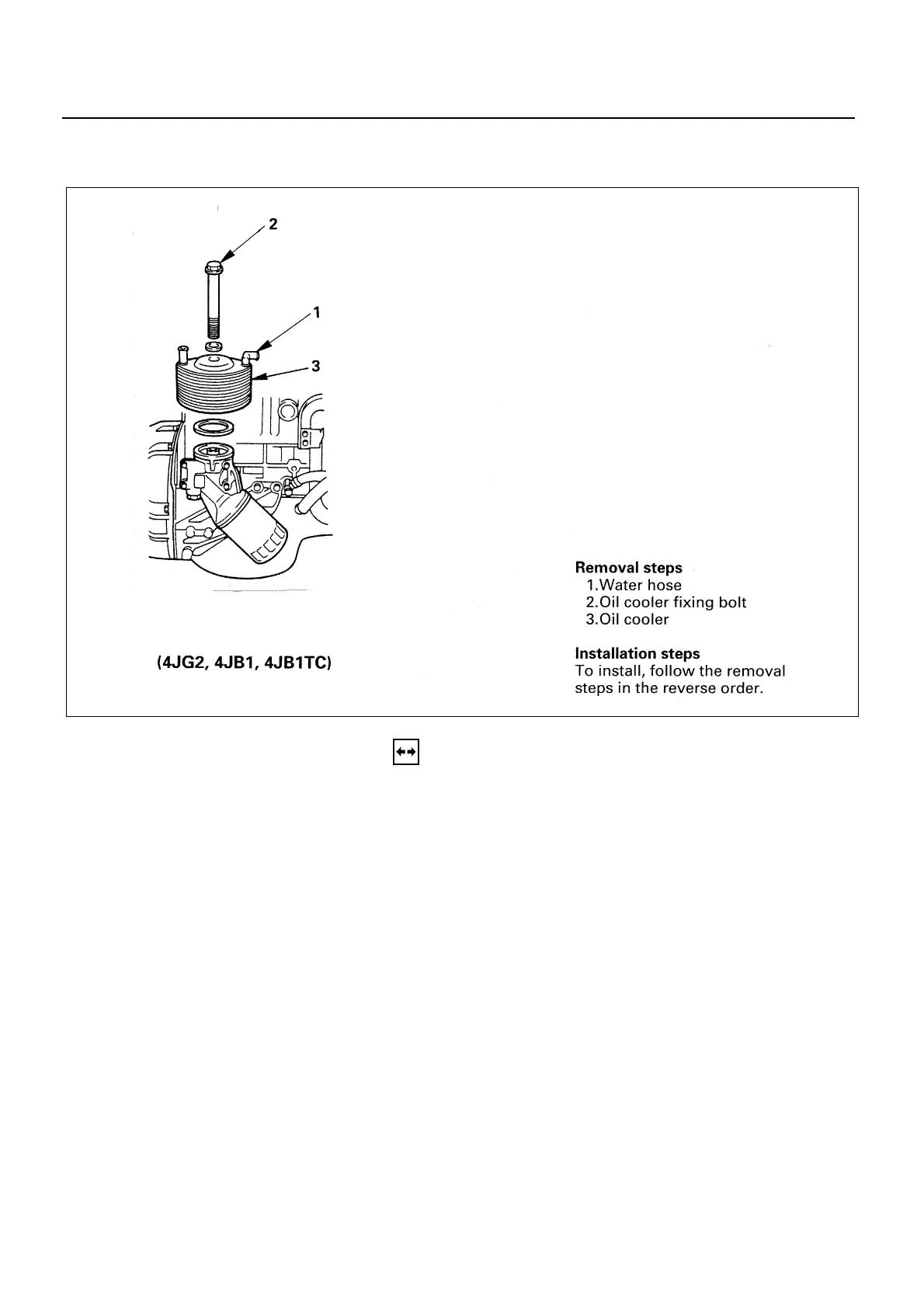

OIL COOLER (Oil Cooler Model)

REMOVAL

Preparation:

• Disconnect battery ground cable

• Drain coolant

• Put rag to beneath side of oil cooler to prevent oil

leaking.

1. Water Hose

• Disconnect water inlet and outlet hose.

2. Oil Cooler Fixing Bolt

3. Oil Cooler

6A1-12-1.tif
