6A1 – 96 4JB1/4JB1T/4JB1TC/4JG2 - ENGINE

ENGINE ASSEMBLY

REMOVAL

Preparation:

• Disconnect Battery Ground Cable

• Drain Coolant

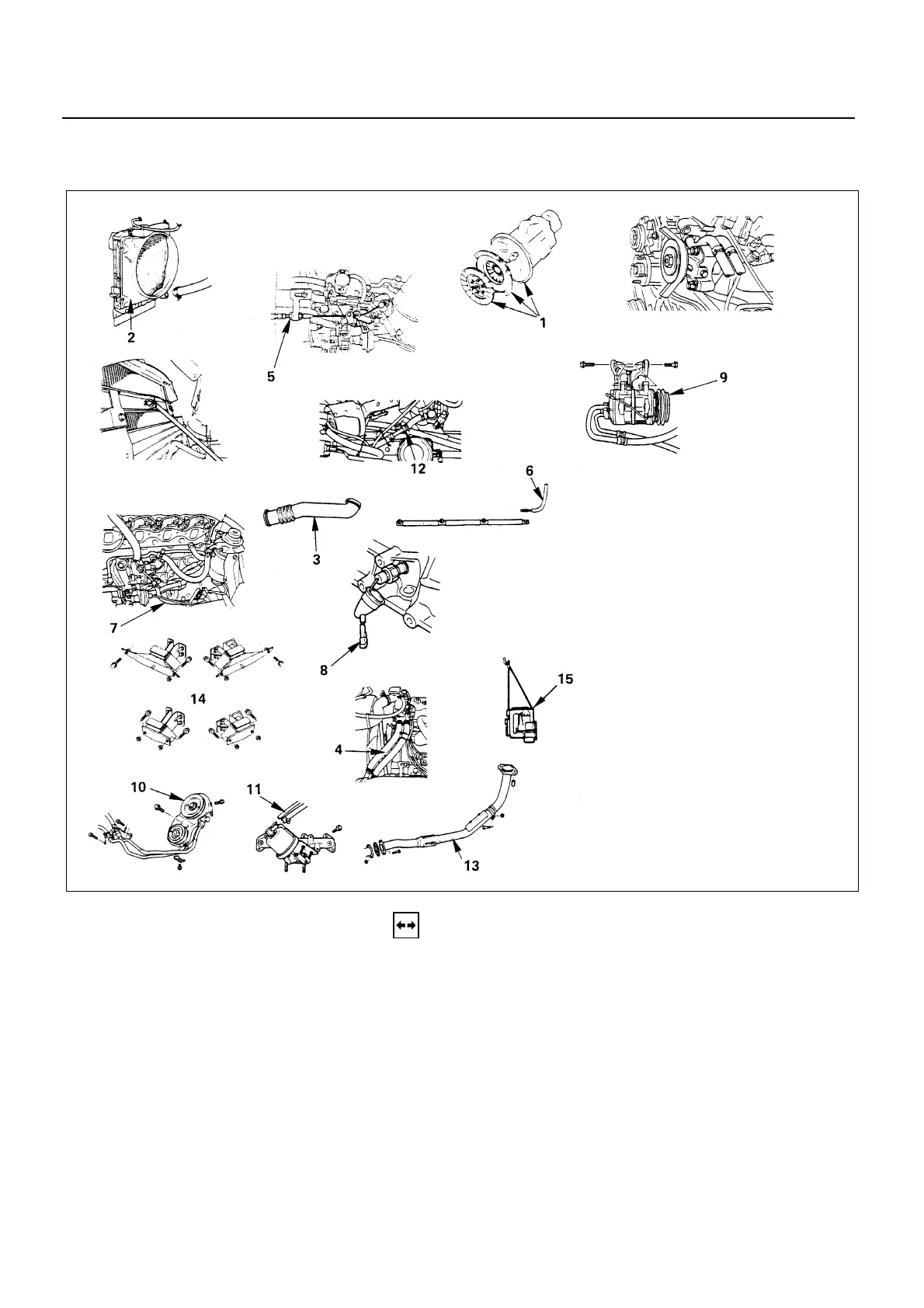

6A1-96-1.tif

Removal steps

1. Transmission and clutch Assembly

2. Radiator Assembly

3. Intake air duct

4. Heater hose

5. Engine control cable

6. Glow plug harness

7. Fuel hose

8. Oil pressure switch harness

9. A/C Compressor Assembly.

(A/C model)

10. Power steering pump & bracket

Assembly

(Power steering model)

11. Actuator vacuum hose

(Exhaust brake model)

12. Vacuum pump hose

13. Front exhaust pipe

14. Support rubber

15. Engine Assembly

Installation steps

To install, follow the removal steps in

the reverse order.
