ENGINE FUEL 6C - 35
INSTALLATION

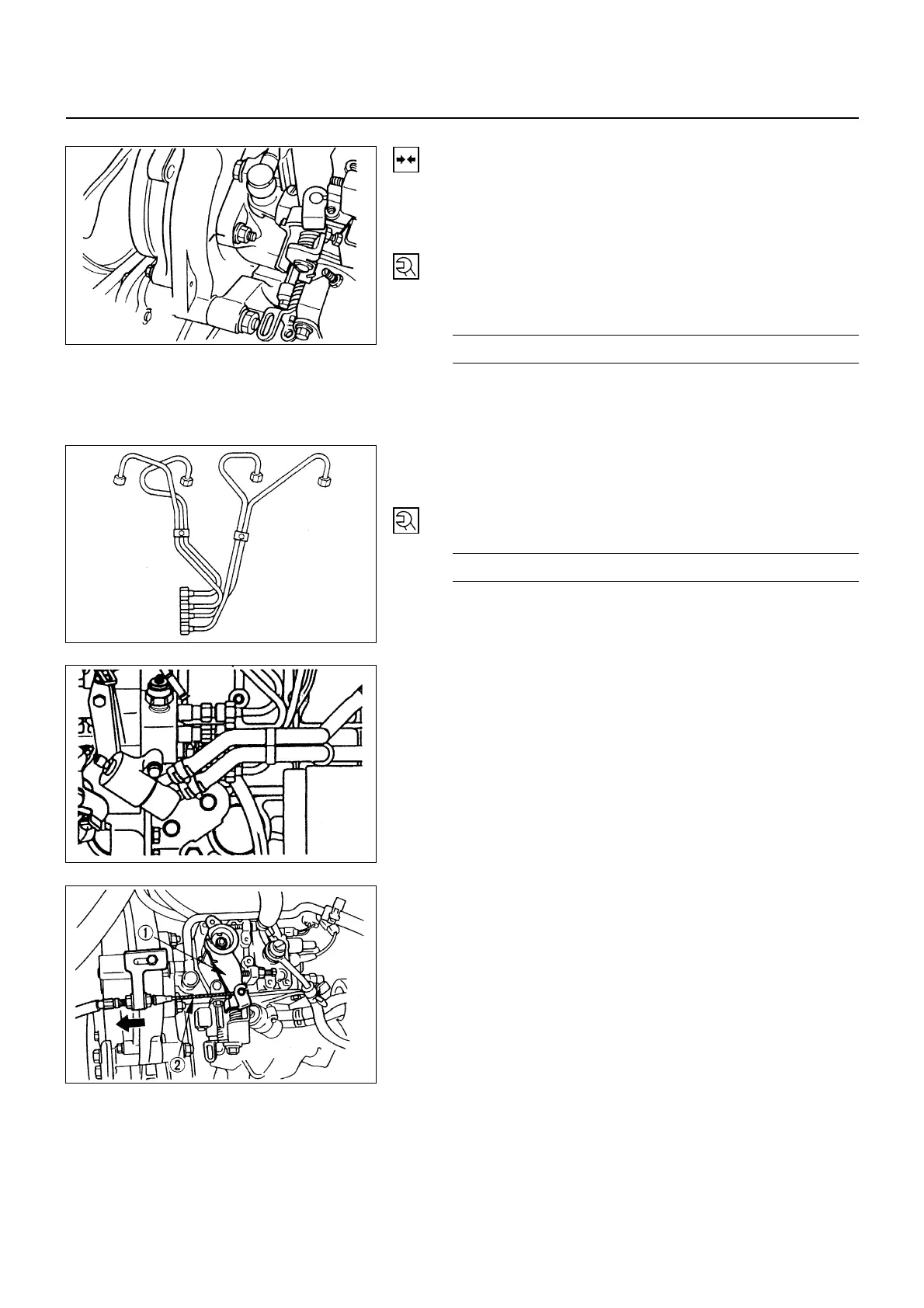

19. Injection Pump Assembly
• Put the timing pulley housing side and injection pump
side setting marks together, and temporarily tighten.
• After adjusting injection timing retighten.
• Mount rear bracket on cylinder block and tighten to the
specified torque.
N∙m (Kg∙m/lb∙ft)
19 (1.9/14)
• Install adjust lock bolt and lightly tighten.
• After adjusting injection timing, retighten.
18. Injection Pipe
• Connect the pump side and nozzle side of the pipe,
and tighten securely.
• Install clip where it was.
Sleeve Nut Torque N∙m (Kg∙m/lb∙ft)
29 (3.0/22)
17. Injection Pump Harness
• Mount engine harness and connect it to switches.
16. CSD Water Hose
• Connect the water hose and tighten clip securely.
15. Fuel Hose
• Connect the fuel feed hose and fuel return hose.
• Connect the rear off hose.
14. Injection Pump Control Cable
1) Install the Control wire to the engine control lever.
2) Hold the accelerator lever
!
in the fully closed
position and stretch the control cable
"
in the
direction indicated by the arrow to remove any slack.
3) Tighten the accelerator cable bracket bolt.
6C-34-1.tif
6C-34-2.tif
6C-34-3.tif
6C-34-4.tif
To Next Page
