STARTING SYSTEM 6D2 – 3
ON-VEHICLE SERVICE

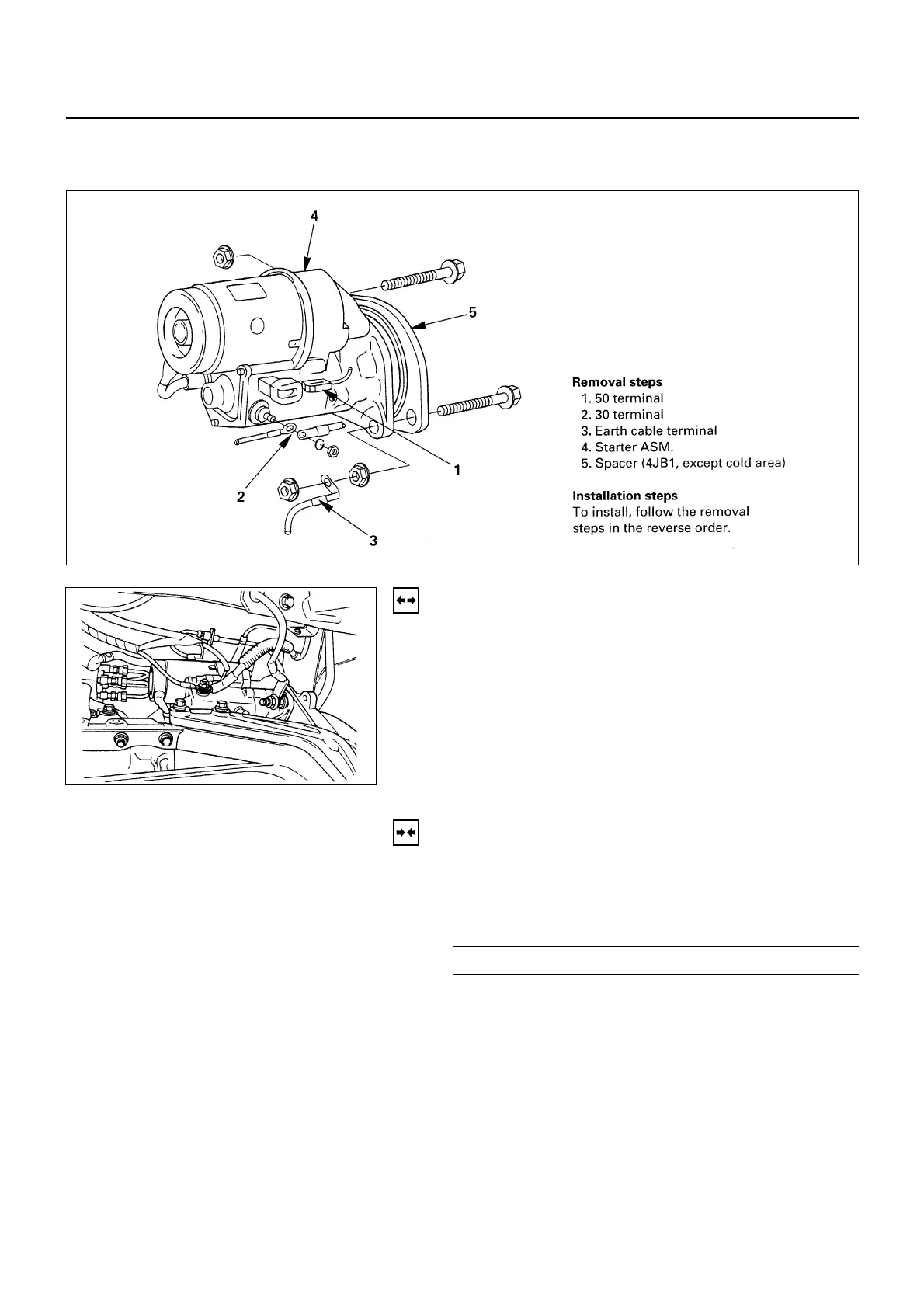

REMOVAL
Preparation
• Disconnect Battery Ground Cable.
1. "50" Terminal
2. "30" Terminal
3. Earth Cable Terminal
4. Starter Assembly
5. Spacer (4JB1, Except cold area)
INSTALLATION
5. Spacer (4JB1, Except cold area)
4. Starter Assembly
• Tighten the fixing bolt and nut to the specified torque
Starter Bolts and Nuts Torque N∙m (Kg∙m/lb∙ft)
81 (8.3 / 60)
3. Earth Cable Terminal
• Connect the earth cable terminal.
6D2-3-1.tif
6D2-3-2.tif
