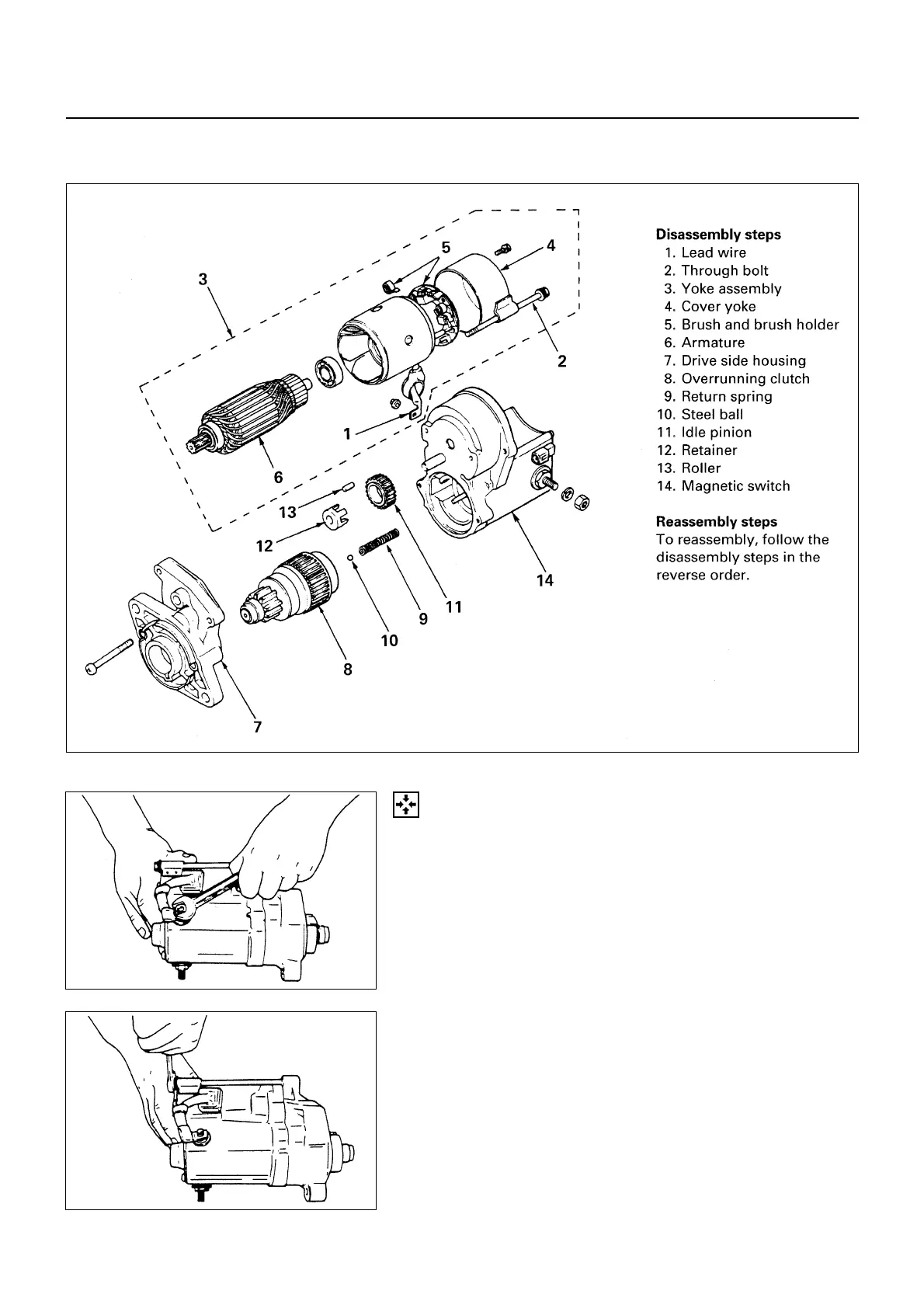

STARTING SYSTEM 6D2 – 5

UNIT REPAIR

DISASSEMBLY

1. Lead Wire

Disconnect the lead wire from the magnetic switch.

2. Through Bolt

Remove the through bolts from the yoke.

6D2-5-1.tif

6D2-5-2.tif

6D2-5-3.tif
