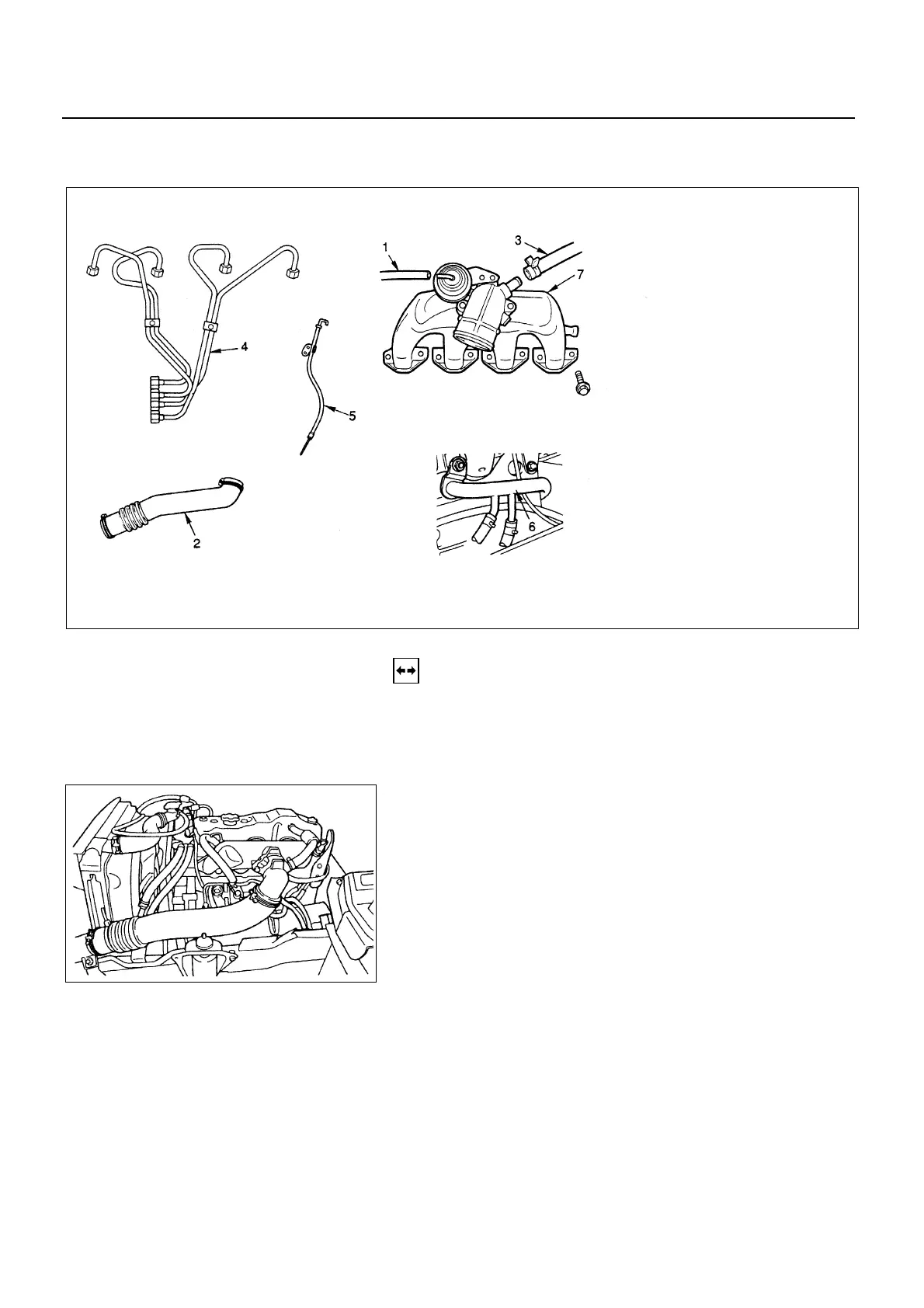

6A1 – 8 4JB1/4JB1T/4JB1TC/4JG2 - ENGINE

INLET MANIFOLD

REMOVAL

Preparation:

• Disconnect battery ground cable.

• Drain coolant.

1. Vacuum Hose

2. Air Intake Duct

3. PCV Hose

4. Injection Pipe

• Release injection pipe clip.

• Loosen the flare nut on the injection pump side.

• Loosen the flare nut on the injection nozzle side,

disconnect and put a side the pipe.

5. Oil Level Gauge Guide Tube

• Remove the fixing bolt and remove level gauge guide

tube.

6A1-8-1.tif

6A1-8-2.tif

Removal steps

1. Vacuum hose

2. Air intake duct

3. PCV hose

4. Injection pipe

5. Oil level gauge guide tube

6. Oil cooler water pipe (Oil

Cooler Model)

7. Inlet manifold

Installation steps

To install, follow the removal

steps in the reverse order.
