Isuzu NPR 4J Series User Manual

6C - 58 ENGINE FUEL
ACCELERATOR CONTROL
ACCELERATOR CONTROL CABLE
REMOVAL
1. Adjust Nut
• Loosen the adjust nut on the cable bracket mounted
on the inlet manifold.
2. Accelerator Control Wire (Injection Pump Side)
• Remove the control wire from injection pump control
lever.
3. Accelerator Control Wire (Accelerator Pedal Side)
• Remove the accelerator control wire from accelerator
pedal.
4. Accelerator Control Cable
• Remove the cable clip from intake manifold duct.
• Remove the cable clip from chassis frame.
• Pull out the wire to the chassis side through the
grommet hole of the floor board, and remove the
control cable.

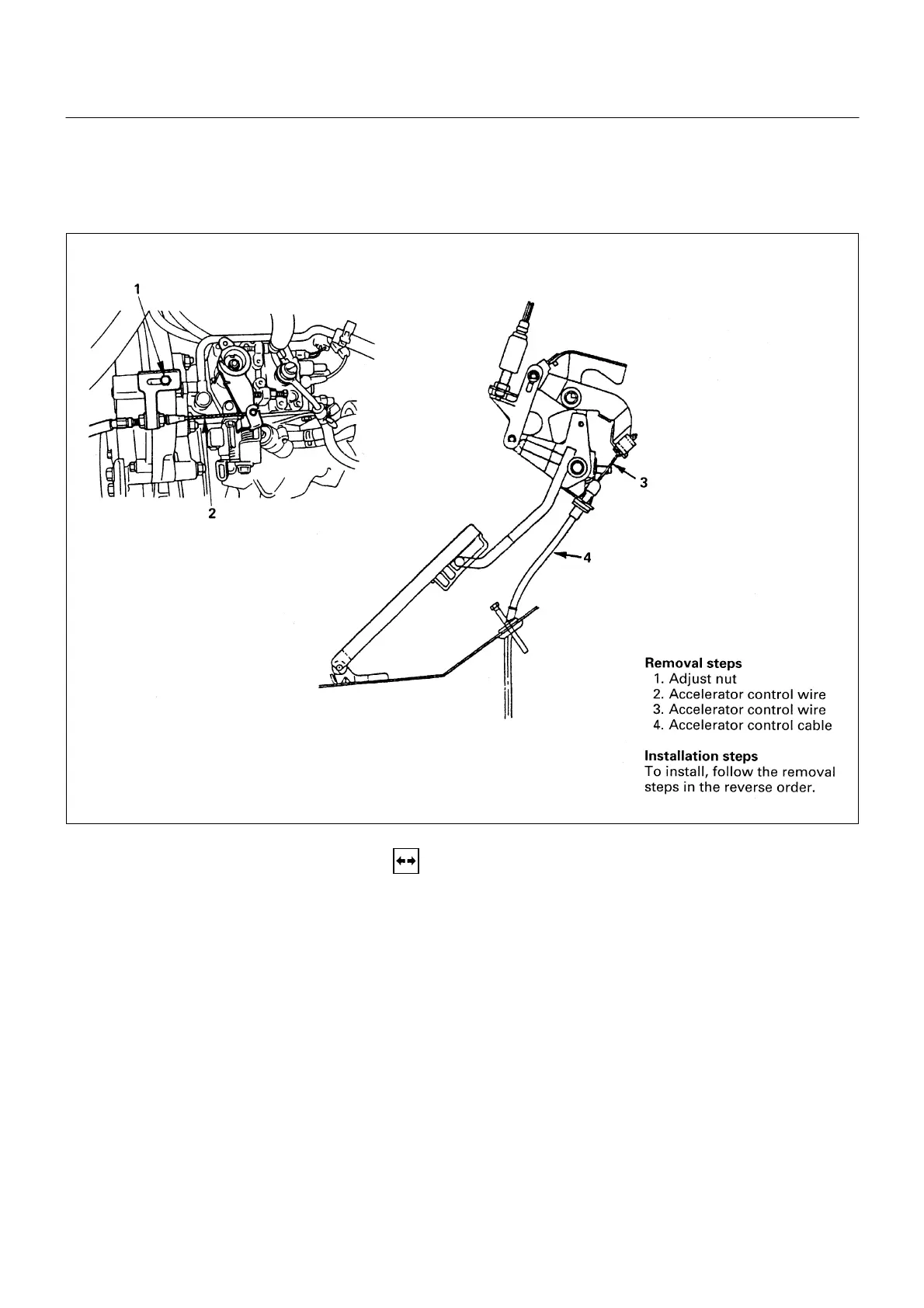

6C-57-1.tif

Isuzu NPR 4J Series Specifications

General

Brand	Isuzu
Model	NPR 4J Series
Category	Engine
Language	English
