ENGINE FUEL 6C - 3
FUEL FLOW
The fuel system consists of the fuel tank, the water
separator, the fuel filter, the injection pump, and the
injection nozzle.
The fuel from the fuel tank passes through the water
separator and the fuel filter where water particles and
other foreign material are removed from the fuel.
Fuel, fed by the injection pump plunger, is delivered to
the injection nozzle in the measured volume at the
optimum timing for efficient engine operation.

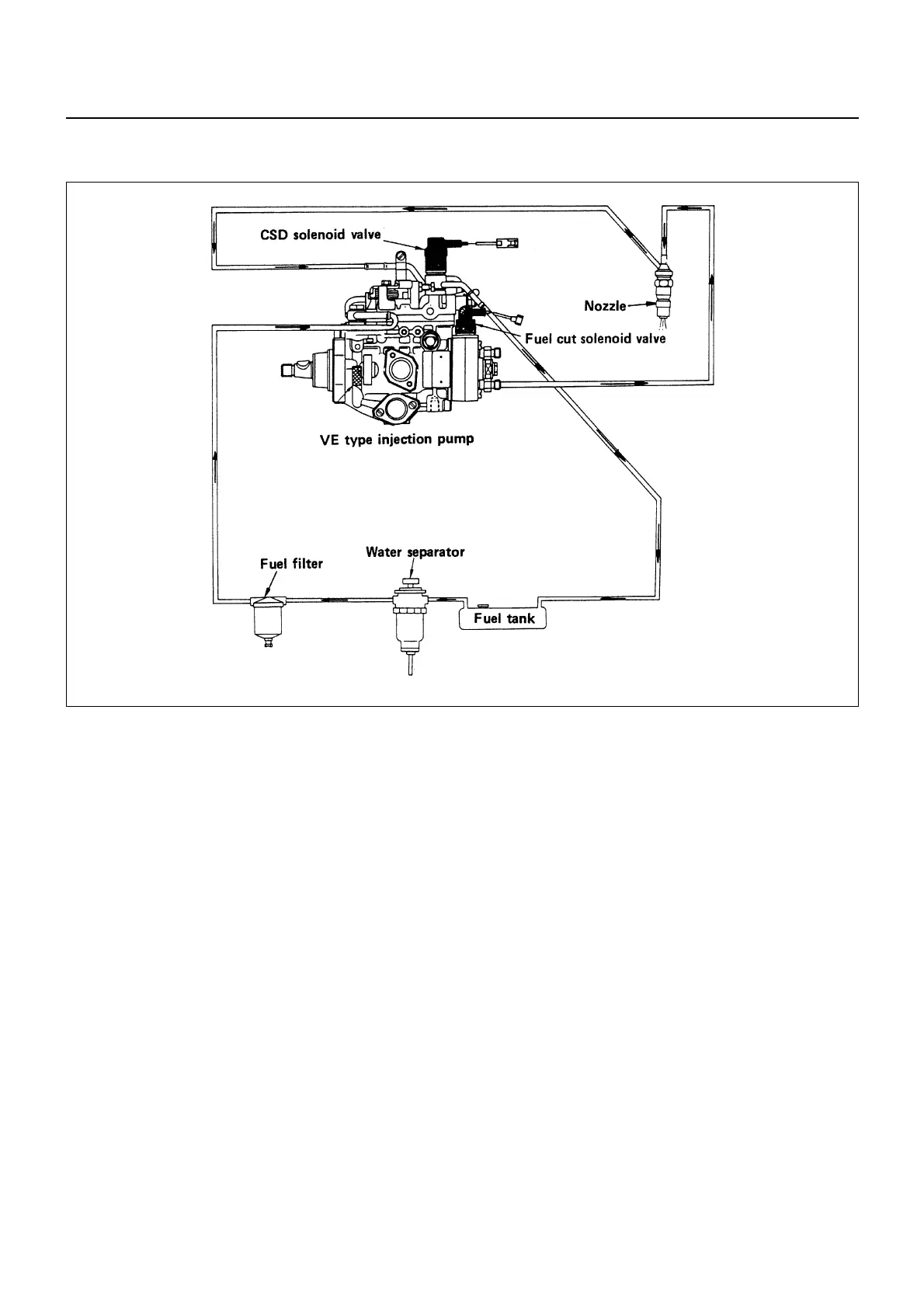

6C-2-1.tif
