6A1 – 84 4JB1/4JB1T/4JB1TC/4JG2 - ENGINE

INSTALLATION

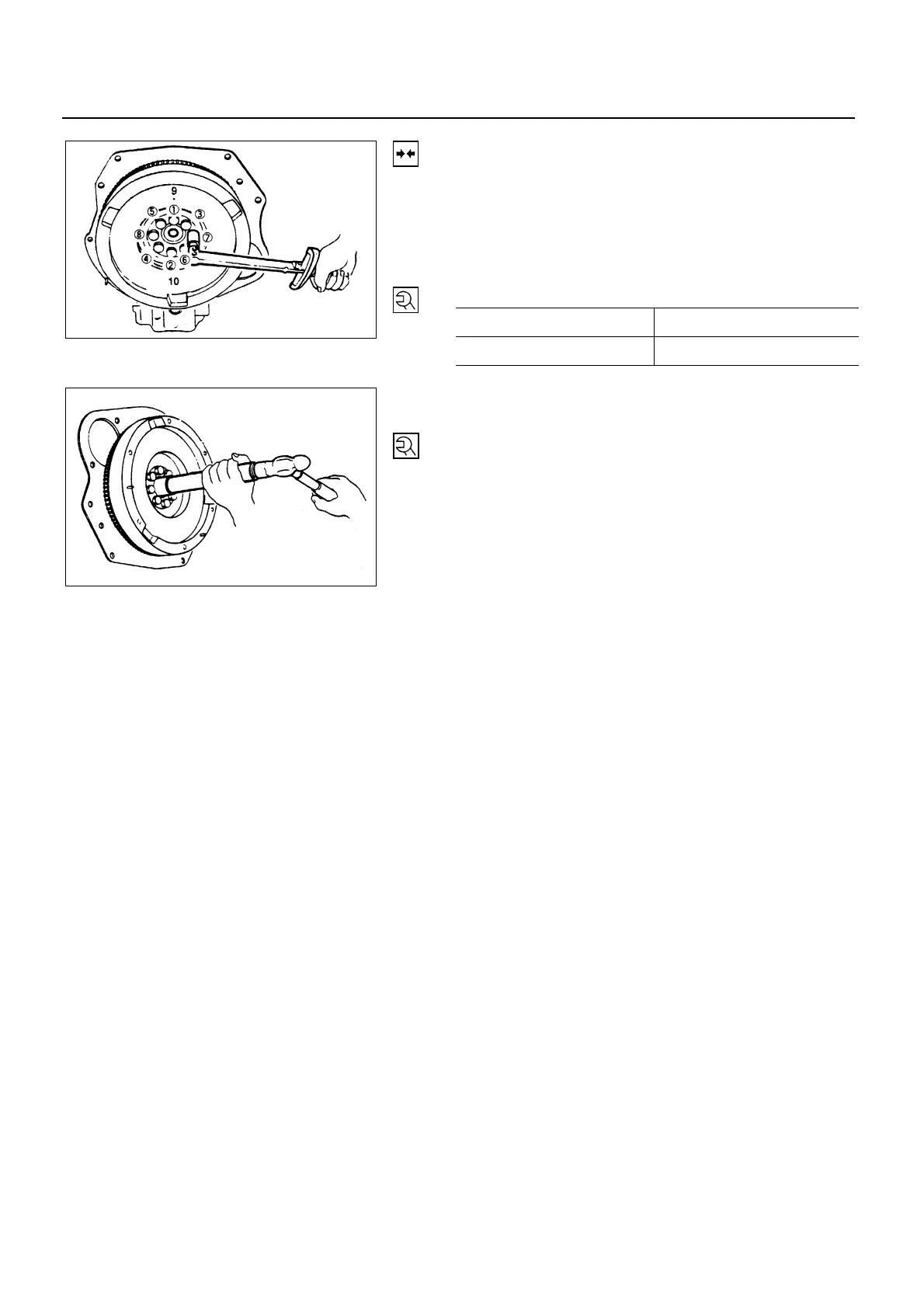

3. Flywheel

• Apply engine oil to fixing bolts.

• Tighten the flywheel bolts to the specified torque in two

steps using the Angular Tightening Method.

Follow the numerical order shown in the illustration.

Flywheel Bolt Torque N∙m (kg∙m/lb∙ft)

1st Step 2nd Step

59 (6.0/43) 60° - 90°

2. Pilot Bearing

• Install the pilot bearing using installer.

Pilot bearing Installer: 5-8522-0024-0

1. Transmission and Clutch Assembly

2) Clutch

1) Transmission

Above works refer to “ENGINE ASSEMBLY” Section in

this manual.

6A1-84-1.tif

6A1-84-2.tif
