4JB1/4JB1T/4JB1TC/4JG2 – ENGINE 6A1 – 51

OIL PUMP ASSEMBLY

REMOVAL

Preparation:

• Disconnect battery ground cable.

• Lift up car.

• Drain engine oil.

NOTE

Install drain plug with new washer.

N∙m(kg∙m/lb∙ft)

44 (4.5/33)

1. Vacuum Pump Oil Hose

• Remove the oil hose !

from oil pan.

6A1-51-2.tif

6A1-51-1.tif

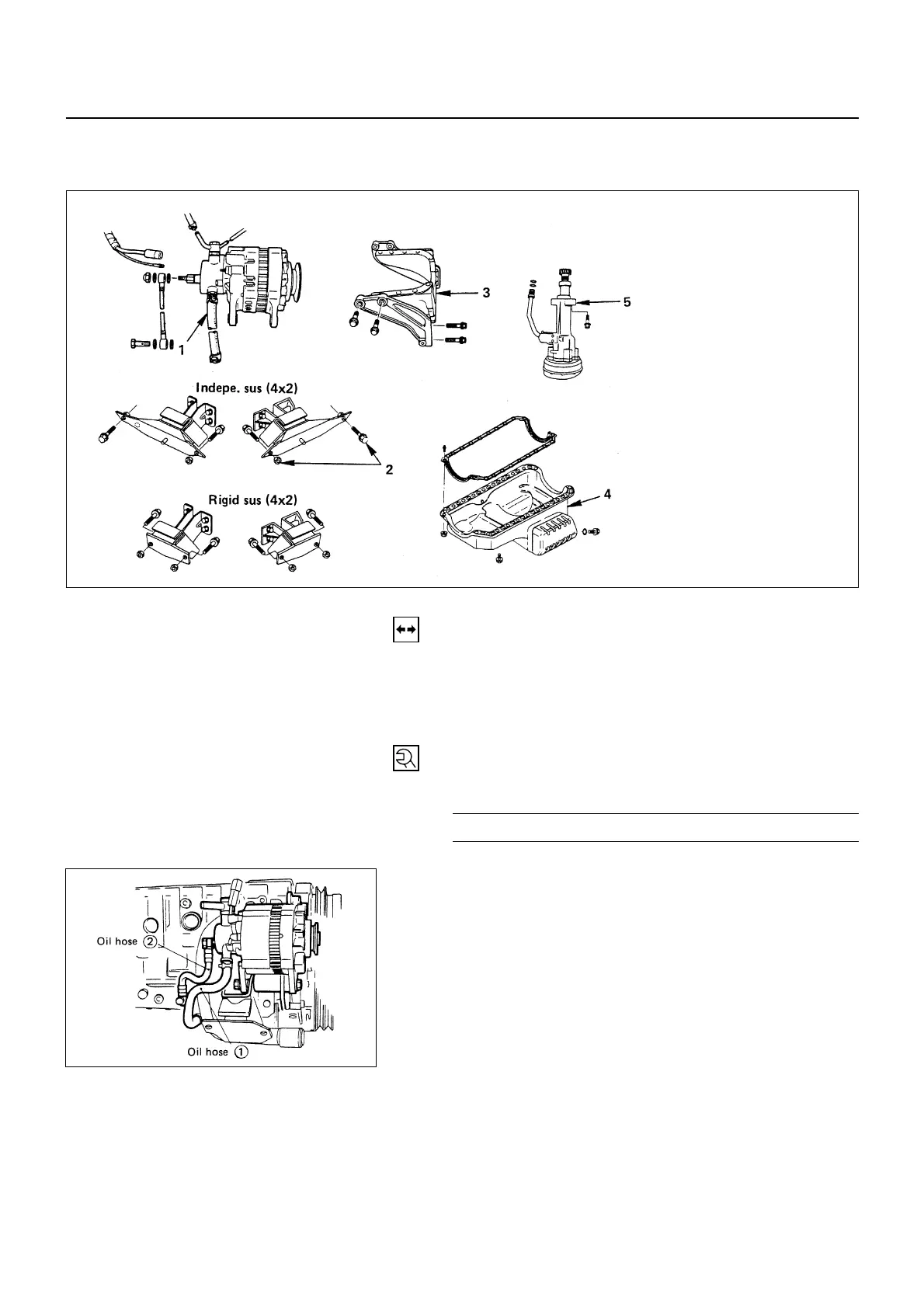

Removal steps

1. Vacuum pump oil hose

2. Engine mount bolts

3. Stiffener and space rubber

4. Oil pan Assembly

5. Oil pump Assembly

Installation steps

To install, follow the removal

steps in the reverse order.
