Isuzu NPR 4J Series User Manual

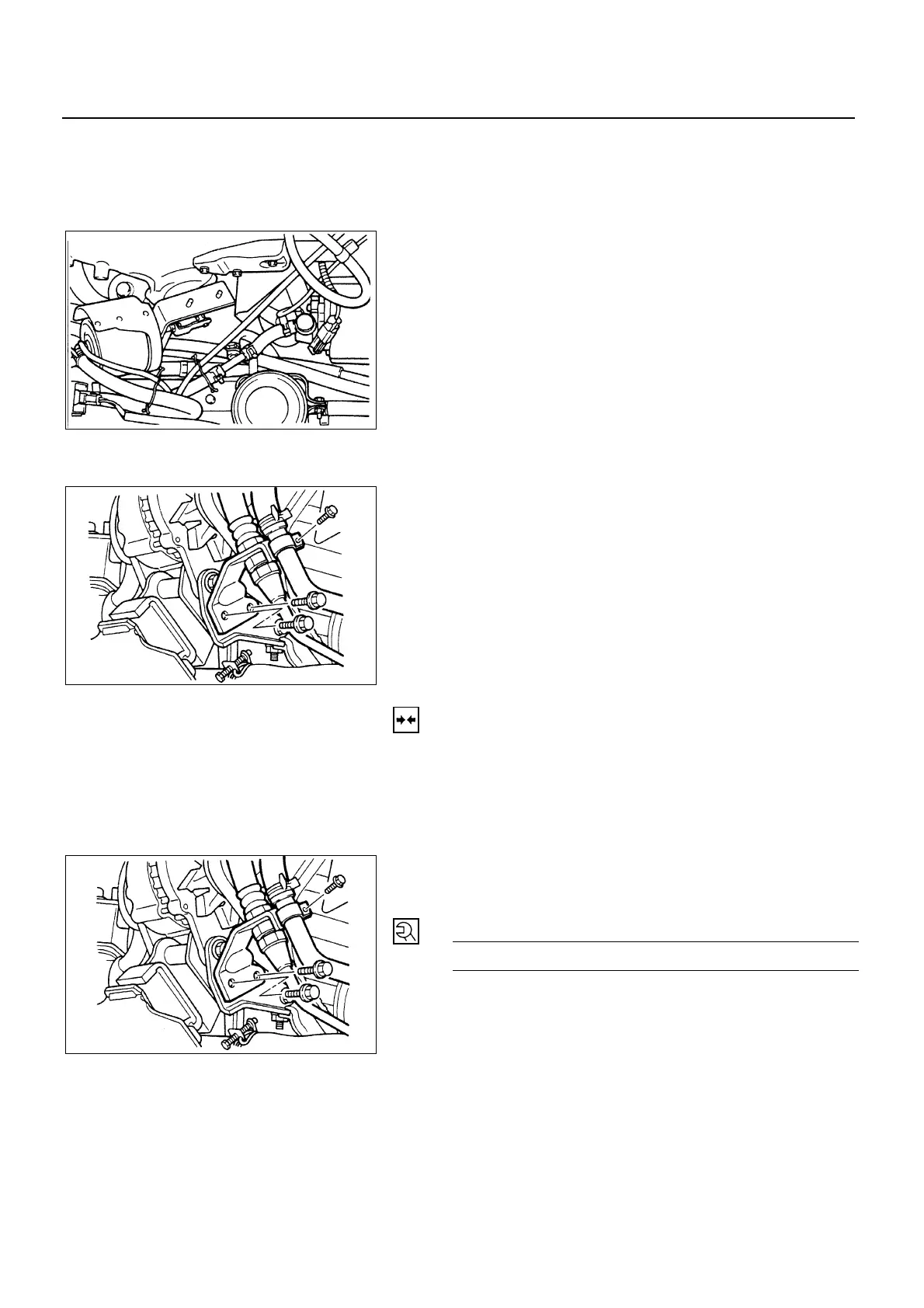

6D3 – 6 CHARGING SYSTEM
3. Harness Connector (A/C Model)
• Disconnect the "L", "S", "IG" terminal.
• Disconnect the "B" terminal.
4. Vacuum Hose (EXH. Brake Model)
• Remove the vacuum hose to vacuum tank and
exhaust actuator.
5. Oil Hose
• Remove the oil hose from oil pan.
• Remove the oil hose of vacuum pump side.
6. AC Generator Drive Belt
• Loosen the adjust plate fixing bolt.
• Remove the adjust bolt.
• Loosen the AC Generator fixing bolt then remove the
fan belt.
7. Power Steering Oil Pipe Bracket (P/S Model)
• Remove the oil pressure pipe bracket fixing bolt and
pipe clip bolt.
• Remove the oil suction pipe clip bolt.
8. AC Generator Fixing Bolts
9. AC Generator Assembly
INSTALLATION
9. AC Generator Assembly
• Set the AC generator.
8. AC Generator Fixing Bolts
• Temporary install the AC generator fixing bolt.
7. Power Steering Oil Pipe Bracket (P/S Model)
• Install the oil pipe bracket and tighten bolts to the
specified torque.
Pipe Bracket Bolt torque N∙m (kg∙m/lb∙ft)
19 (1.9/14)
6D3-6-1.tif
6D3-6-2.tif
6D3-6-3.tif
