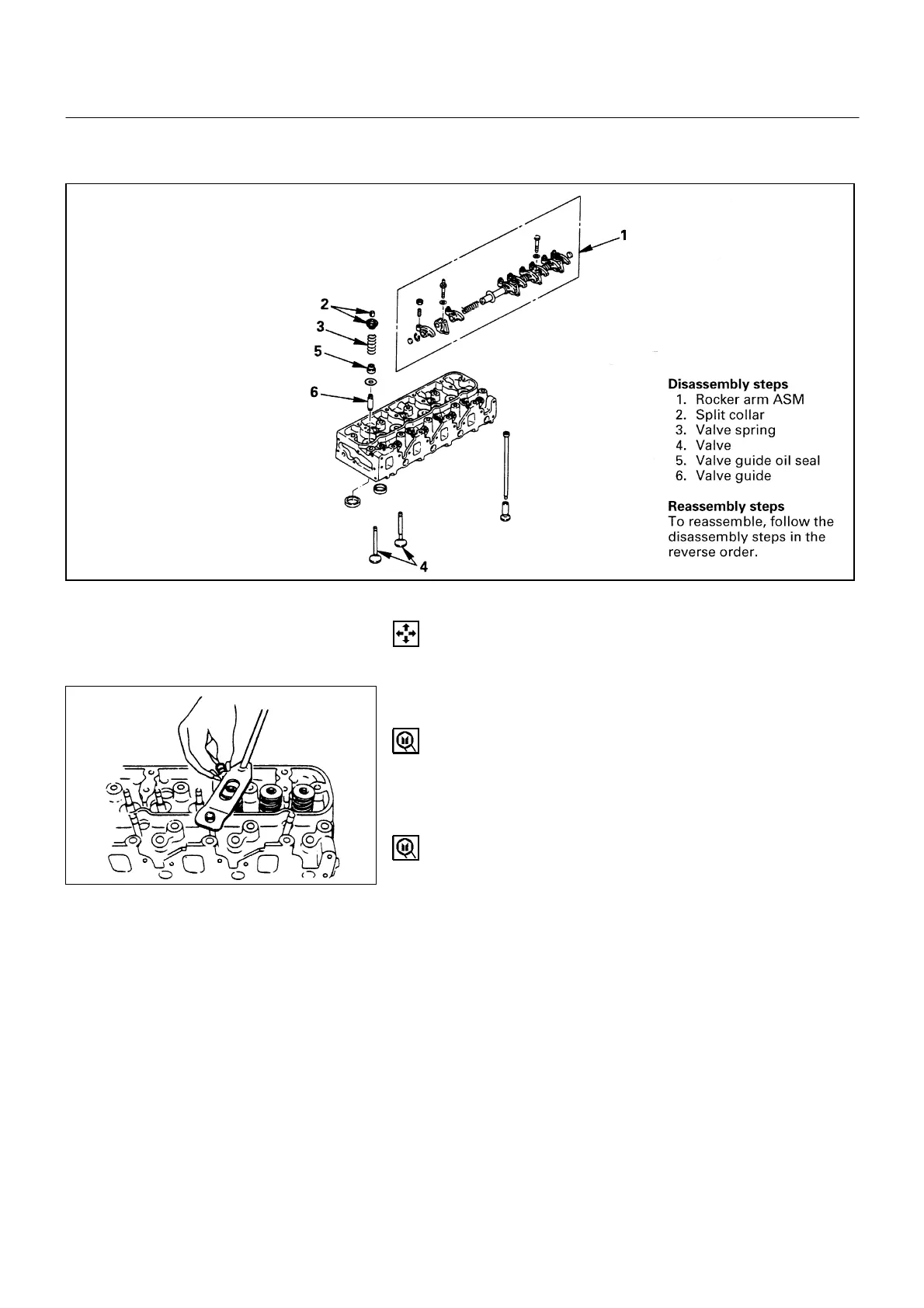

6A – 10 GENERAL ENGINE MECHANICAL

VALVE SPRING, VALVE GUIDE OIL SEAL, VALVE GUIDE, PUSH ROD

DISASSEMBLY

1. Rocker Arm Assembly

2. Split Collar

Using special Tool, compress valve spring

Valve spring compressor: 9-8523-1423-0 (J-29760)

3. Valve Spring

4. Valve

5. Valve Guide Oil Seal

6. Valve Guide

Valve Guide Replacer: 9-8523-1212-0

6A-10-2.tif

6A-10-1.tif
