6C - 62 ENGINE FUEL

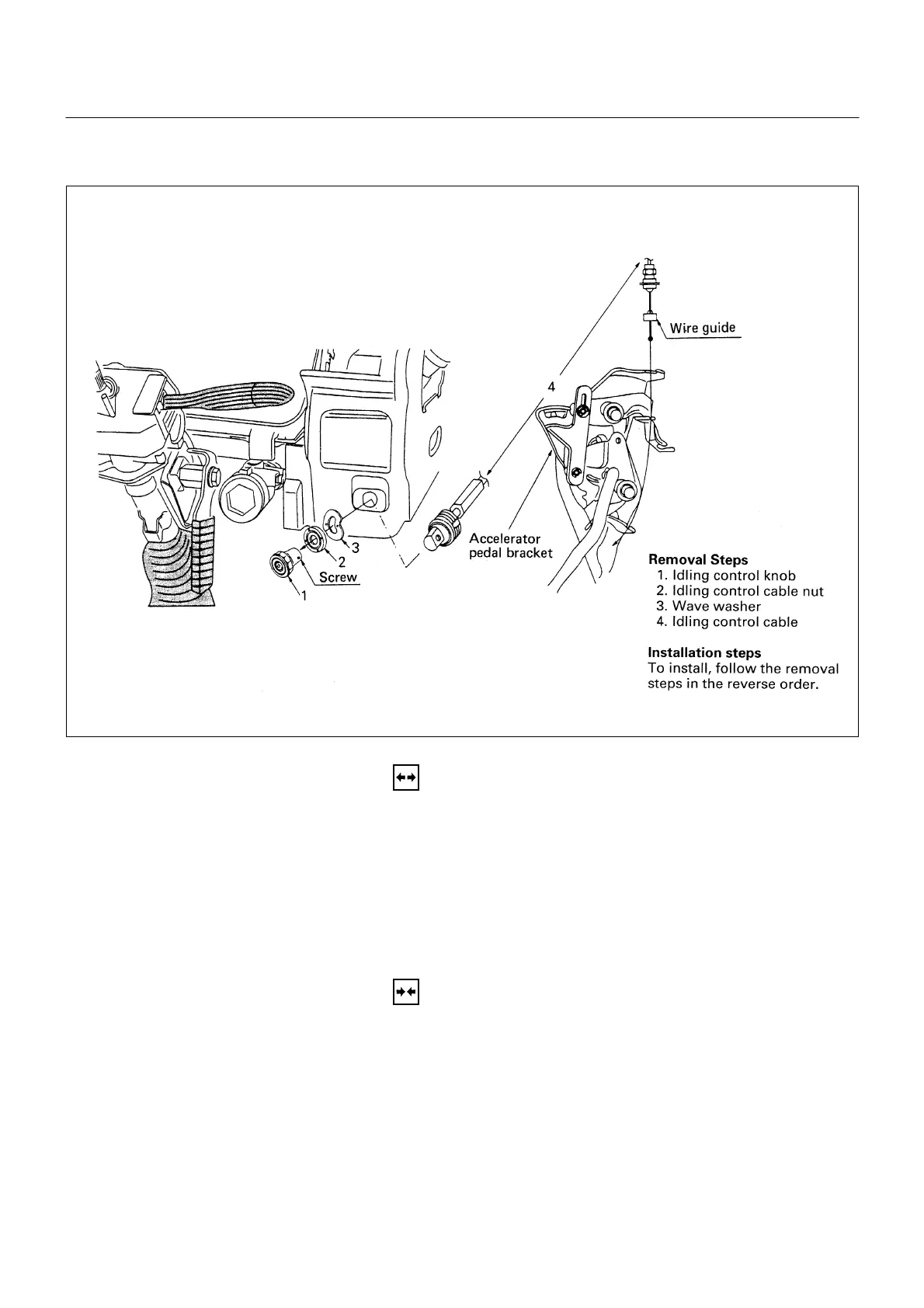

IDLING CONTROL CABLE

REMOVAL

1. Idling Control Knob

• Loosen the idling control knob screw and remove the

knob from cable.

2. Idling Control Cable Nut

3. Wave Washer

4. Idling Control Cable

• Remove control cable from accelerator pedal bracket.

INSTALLATION

4. Idling Control Cable.

• Install Control Cable to Accelerator pedal bracket.

3. Wave Washer

2. Idling Control Cable Nut

• Insert the idling control cable into the specified hole of

the instrument panel.

• Install the washer to the cable, and tighten it with the

nut.

6C-61-1.tif
