ENGINE FUEL 6C - 7

ON-VEHICLE SERVICE

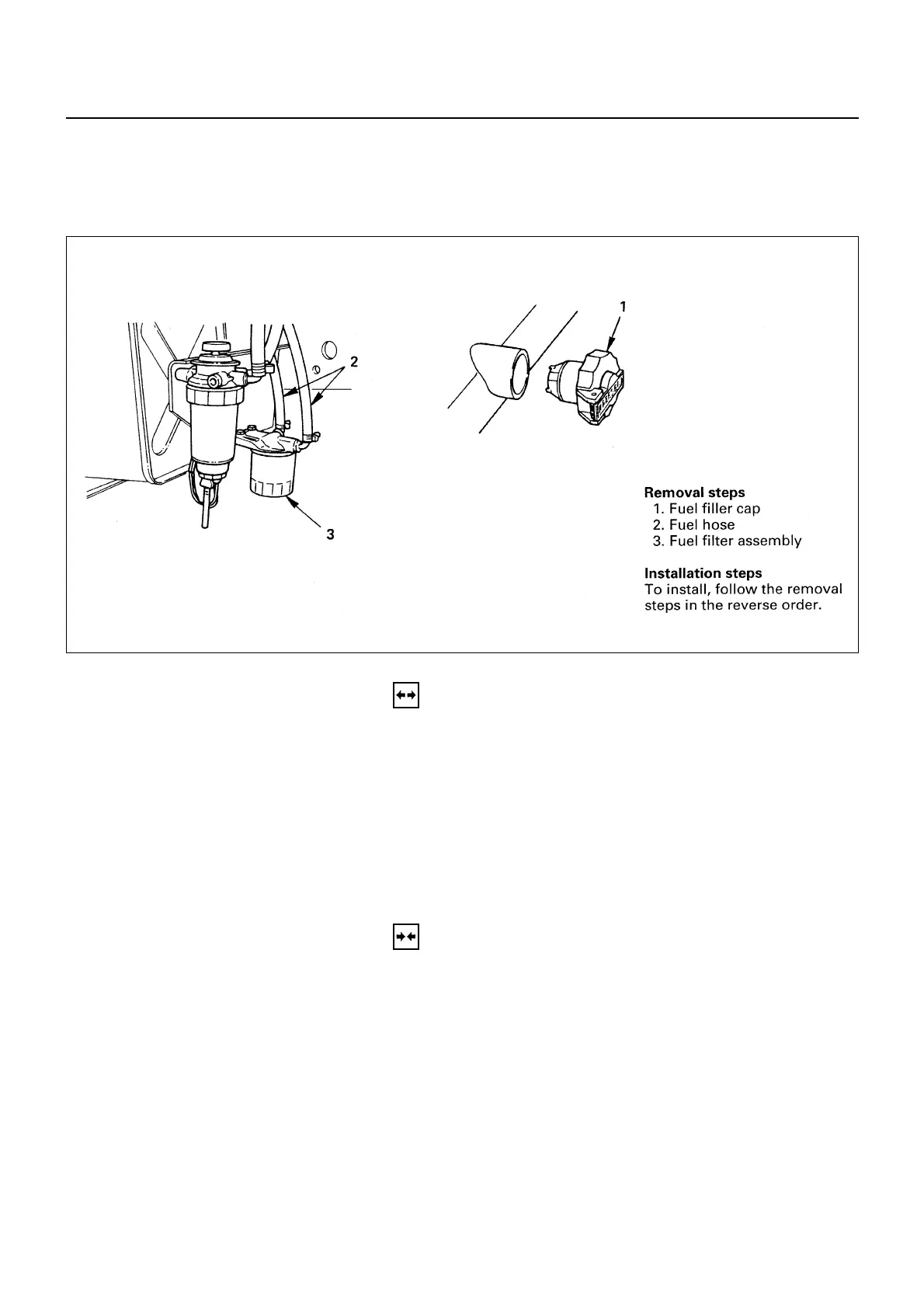

FUEL FILTER ASSEMBLY

REMOVAL

Preparation

• Disconnect battery ground cable.

1. Fuel Filler Cap

2. Fuel Hose

• Disconnect fuel hose from filter body.

Plug the hose ends to prevent fuel spillage.

3. Fuel Filter Assembly

• Remove the fixing bolts on fuel filter bracket.

INSTALLATION

3. Fuel Filter Assembly

• Install the fuel filter bracket then tighten fixing bolt.

2. Fuel Hose

• Connect hoses to filter body.

1. Fuel Filler Cap

• Connect the battery ground cable.

• Feed fuel to the injection pump by means of the

priming, and bleed the fuel system.

6C-6-1.tif
