CHARGING SYSTEM 6D3 – 17
UNIT REPAIR
DISASSEMBLY

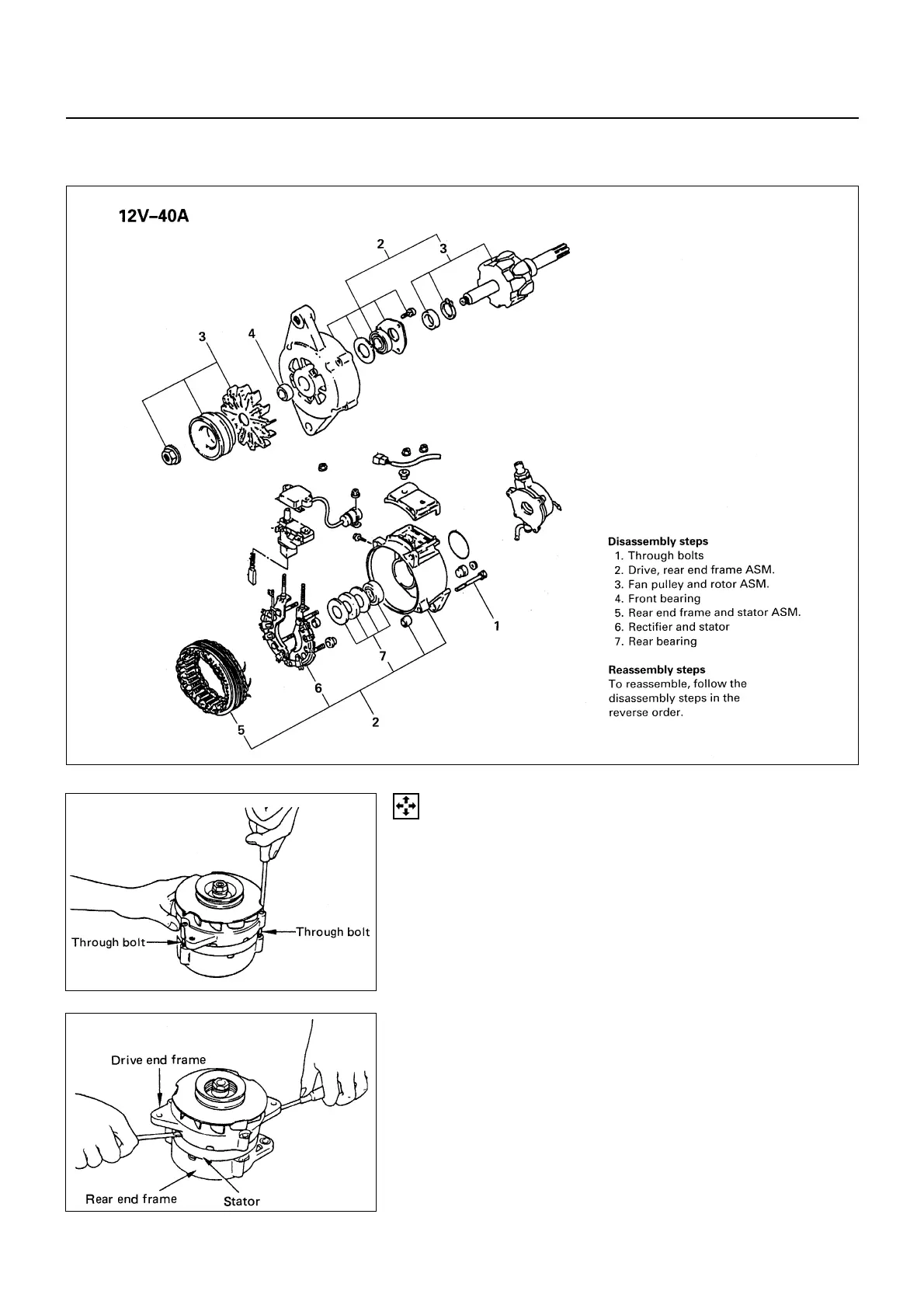

1. Removal of Through Bolts
Remove the three through bolts.
2. Separation of Drive End Frame and Rear End Frame &
Stator
As illustrated, put a screw-driver into the notched part of
the drive end frame and separate the rear end frame and
stator from the drive end frame.
NOTE:
Be careful not to put in a screw-driver to excess so as
to prevent the stator coil from being scratched.
