LOCK

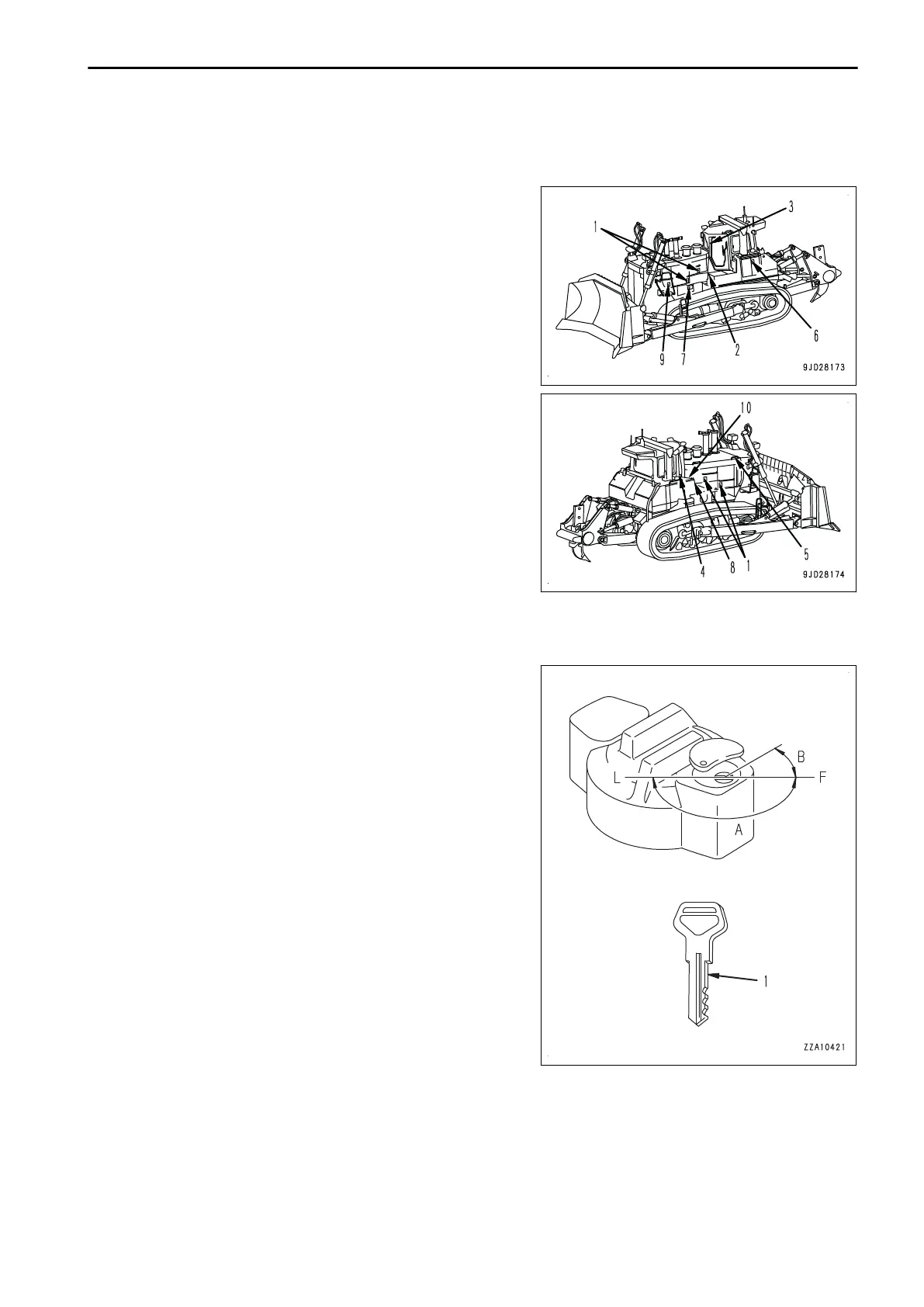

The following sections are lockable to prevent vandalism.
Places where can be locked with the starting switch key
(1) R.H. and L.H. engine side covers (2 places on left side, 2
places on right side)
(2) Battery inspection cover
(3) Cab door opener (1 place on left side, 1 place on right side)
(4) Hydraulic tank oil filler cap
(5) Radiator water filler port cover
(6) L.H. cab side cover
(7) Water separator inspection cover
(8) Hydraulic tank oil level inspection cover
(9) Engine nameplate inspection cover
(10) Damper dipstick pipe cover
METHOD FOR OPENING AND CLOSING CAP WITH LOCK
PROCEDURE FOR OPENING CAP WITH LOCK
1.
Insert the key into the key slot.
Make
sure that you have inserted the key fully (1) before
turning it.
If the key is turned when only partially inserted, it may
break.
Position (L) : LOCK
(F) : OPEN position
(A) : Working angle of key 180 °
(B): 45 °
