8.
Check
that the oil is between the H and L marks on the
dipstick by referring to “METHOD FOR CHECKING OIL
LEVEL IN DAMPER CASE AND ADDING OIL”.
9.
Close the inspection cover.
METHOD FOR CHANGING OIL IN FINAL DRIVE CASE
WARNING
• Immediately
after the engine is stopped, its parts and oil are still very hot and may cause burn in-
jury. Accordingly, wait until they have cooled down before starting the work.
• If there is remaining pressure inside the case, the oil or plug may jump out. Loosen the plug slowly
to release the pressure, and then remove it.
• Refill capacity61 ℓ
1.

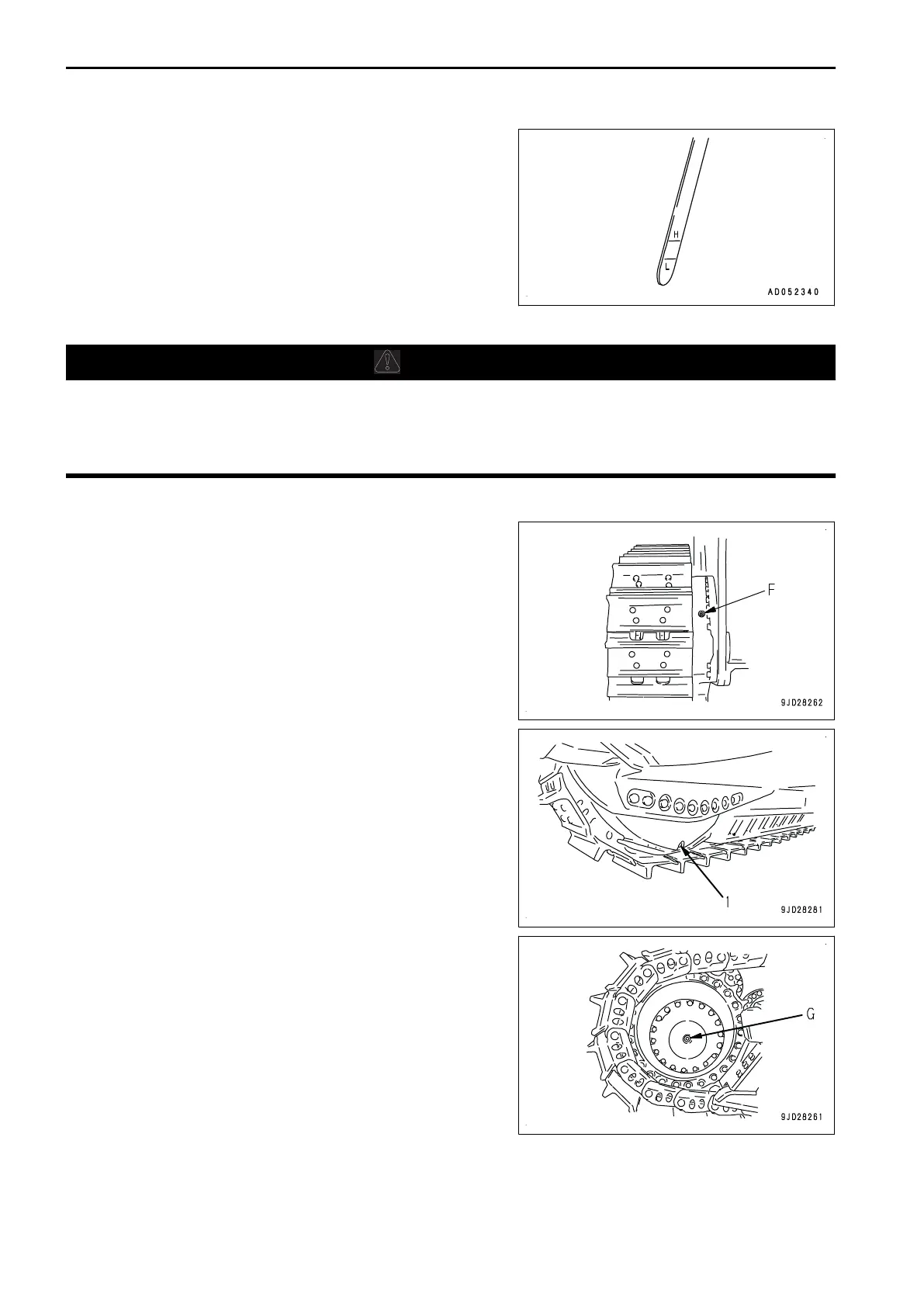

Remove the oil filler plug (F), drain plug (1), and level plug
(G), and drain the oil.
Remove
any dirt around the oil filler plug (F). Take care not
let dirt enter when adding the oil.
2.
After draining the oil, install the drain plug (1).
3.
Remove the level plug (G) and add the gear oil through the
oil filler plug hole (F) until the oil flows out of the level plug
hole (G).
4.
After adding the oil, tighten each plug.
MAINTENANCE PROCEDURE MAINTENANCE
4-68
