2.

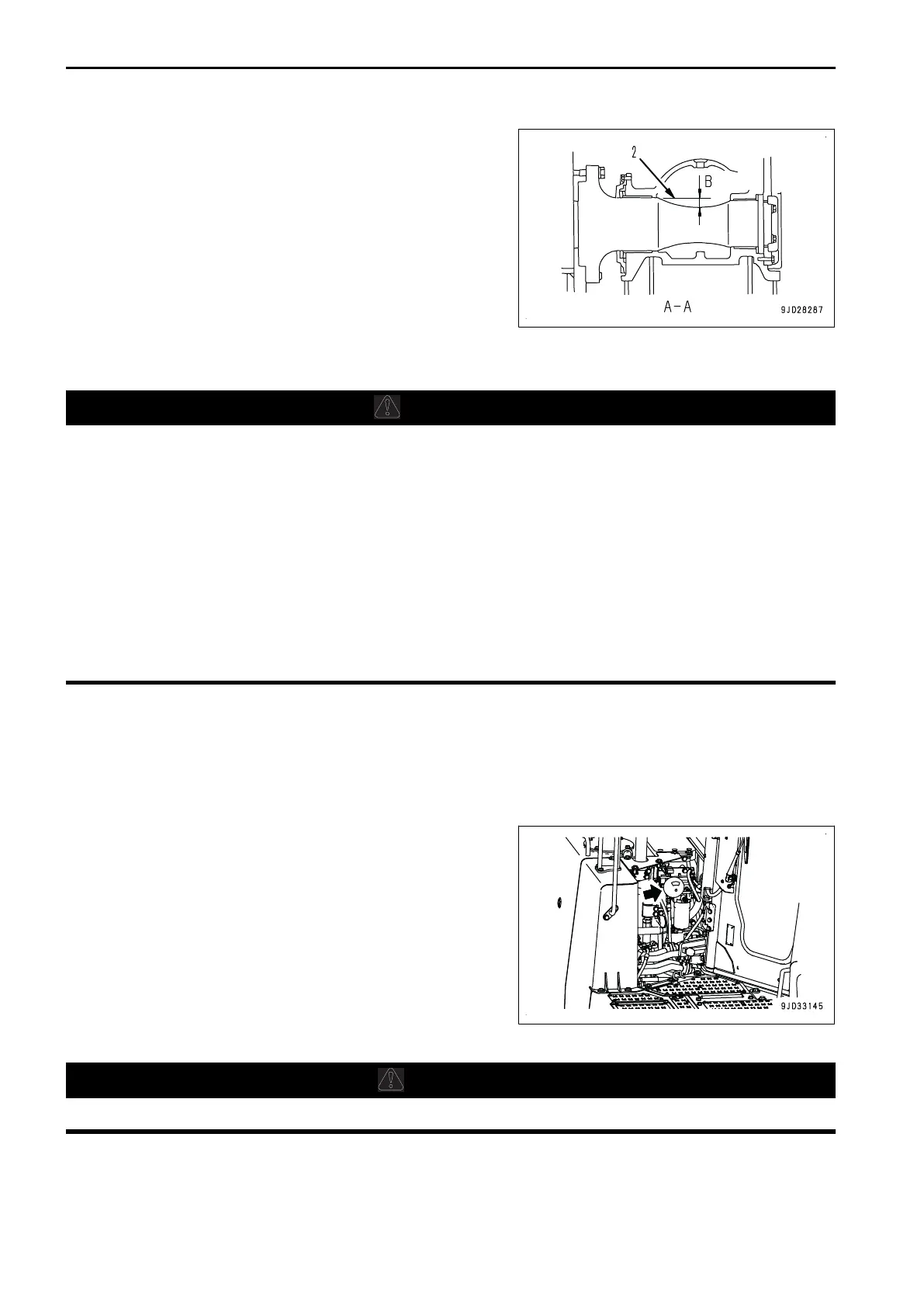

Check
that the oil level (2) is at or above the level shown in
the figure.
If insufficient, add the engine oil through the hole of plug
(1).
(B): 10 to 30 mm
3.
Install the plug (1).
METHOD FOR CHECKING AND RELEASING NITROGEN GAS CHARGE PRES-
SURE IN ACCUMULATOR (FOR CONTROL CIRCUIT)
WARNING
The accumulator is charged with high-pressure nitrogen gas, so improper operation may cause an ex-
plosion, which will lead to serious injury or death. For handling, always observe the following.
• The
pressure in the hydraulic circuit cannot be completely removed. When removing the hydraulic
equipment, do not stand in the direction that the oil spurts out when performing the operation. In
addition, loosen the bolts slowly when performing the work.
• Do not disassemble it.
• Do not bring open flame close to it or do not dispose of it in fire.
• Do not perform drilling, welding or flame-cutting.
• Do not hit or roll it, or subject it to any impact.
• When disposing of it, the gas must be released. Ask your Komatsu distributor to have this work per-
formed.
NOTICE
If the nitrogen gas charge pressure in the accumulator is low and operations are continued, it becomes
impossible to release the remaining pressure inside the hydraulic circuit if a failure occurs on the ma-
chine.
FUNCTION OF ACCUMULATOR
The accumulator stores the pressure of the control circuit in it.
Even after the engine is stopped, the control circuit can be op-
erated, so the following actions are possible.
• If the control lever is operated in the direction to lower the
work equipment, it is possible for the work equipment to go
down under its own weight.
• The pressure in the hydraulic circuit can be released.
The accumulator is installed to the position shown in the figure.
METHOD FOR CHECKING FUNCTION OF ACCUMULATOR
CAUTION
When performing the inspection, check first that there is no person or obstacle in the surrounding area.
Check the nitrogen gas charge pressure as follows.
1.
Place the machine on a firm, level ground.
MAINTENANCE PROCEDURE MAINTENANCE
