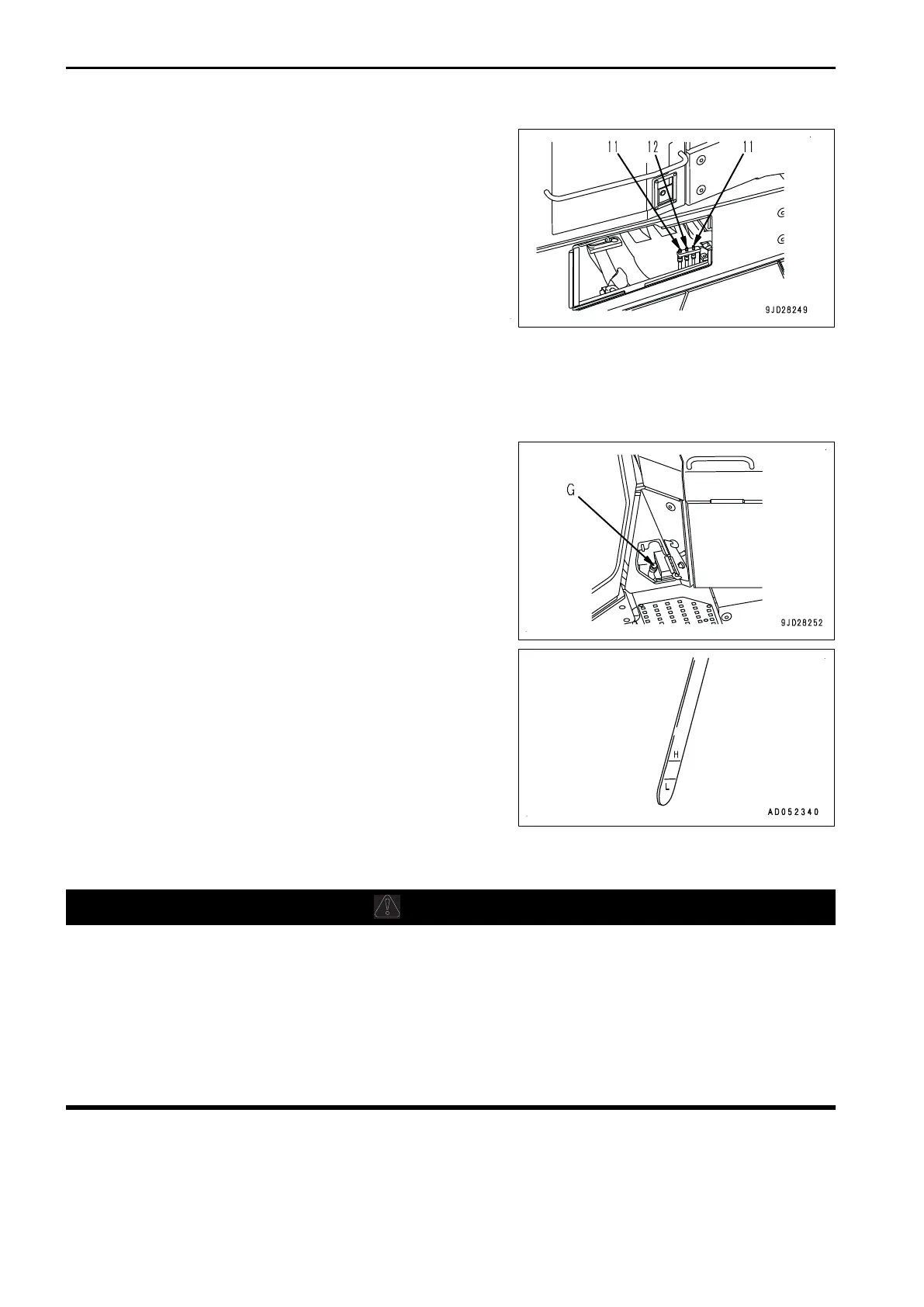

(11) Suspension (equalizer bar shaft) (2 places)
(12) Suspension (equalizer bar center shaft) (1 place)
4.
Perform the lubrication to the suspension (equalizer bar
center shaft) through the grease fittings shown by arrow
.
5.
Operate the lubrication lever back and forth 3 to 5 times.
6.
After greasing, wipe off any old grease that is pushed out.
METHOD FOR CHECKING OIL LEVEL IN DAMPER CASE AND ADDING OIL
•
If the machine is inclining, make it level before checking.
• Perform the oil level check while the engine is stopped.
1.
Pull out the dipstick (G) and wipe the oil off with a cloth.
2.
Fully insert the dipstick (G) into the dipstick pipe again,
then pull it out.
3.
Check if the oil is sticking up to between marks H and L on
dipstick (G).
It is appropriate if the oil level is between marks H and L.
4.
If the oil level is below the mark L, add oil through the dip-
stick holder
.
5.
If the oil level is higher than H mark, remove the drain plug
and drain the excessive oil.
6.
Check the oil level again.
METHOD FOR CHECKING BATTERY ELECTROLYTE LEVEL
Perform this procedure before operating the machine.
WARNING
Do not use the battery if the battery electrolyte level is below LOWER LEVEL line. If you do so, it will
deteriorate
the battery inside and reduce the service life of the battery. In addition, it may cause an ex-
plosion.
Do not bring any open flame near the battery. Otherwise, it may explode since the battery generates the
flammable gas.
Battery electrolyte is dangerous object. If it gets in your eyes or on your skin, wash it off with a large
amount of water and consult a doctor.
Do not use a dry wipe to clean the battery. A wet wipe will prevent fire or explosion from static electrici-
ty.
