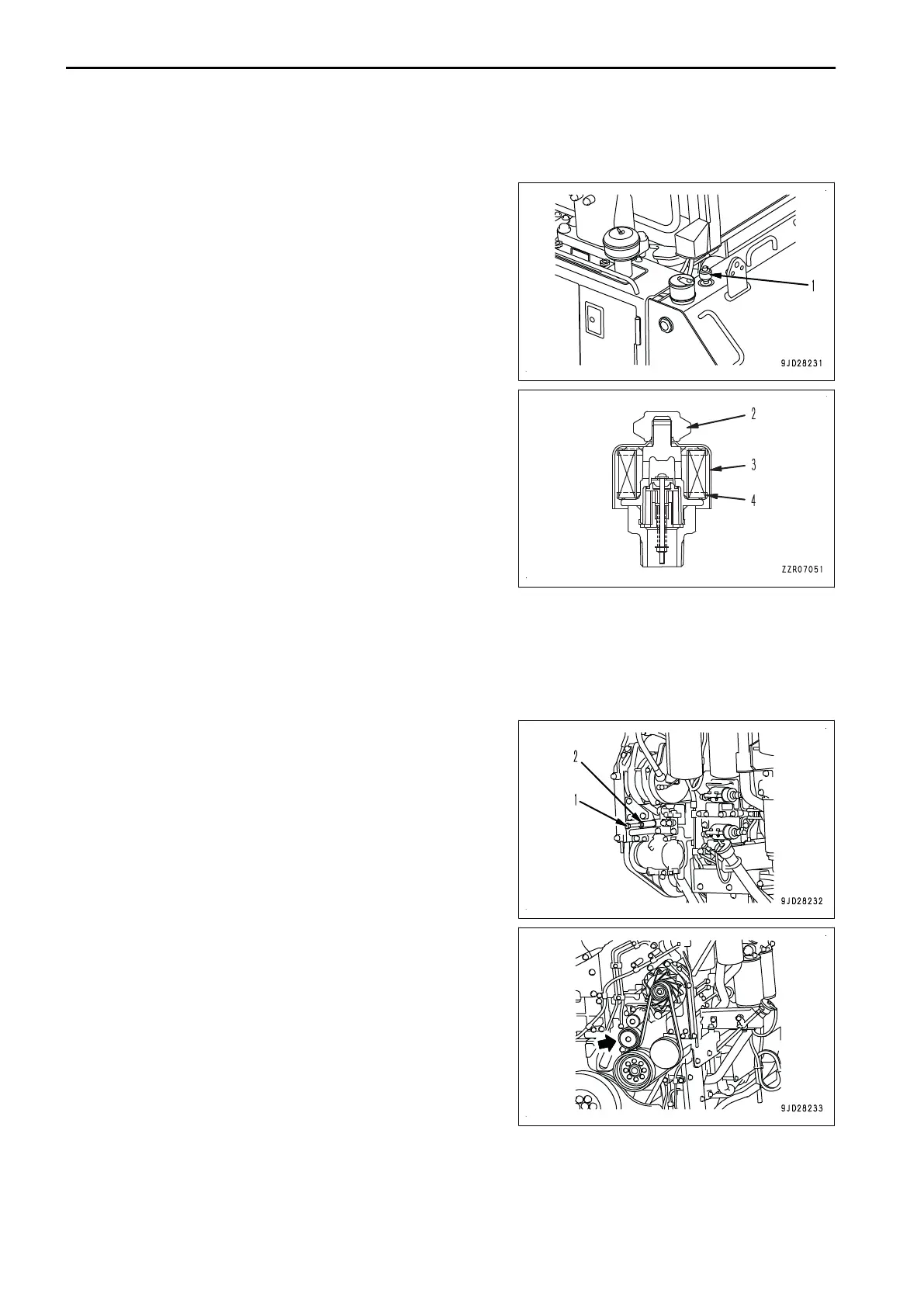

METHOD FOR CLEANING FUEL TANK BREATHER
If the breather is found dirty at inspection or maintenance, clean it.
1.
Remove nut (2) of breather assembly (1) on the top of the
fuel tank.
2.
Remove cover (3).
3.
Remove dirt sticking to breather element (4).
4.
Clean in clean diesel fuel or flushing oil.
5.
Install cover (3) and nut (2).
In order not to damage the threaded portion of nut, tighten
nut
(2) by hand until it is seated, then tighten it 15 to 30 °
by using a tool.
METHOD FOR CHECKING AND ADJUSTING ALTERNATOR AND AIR CONDI-
TIONER COMPRESSOR BEL
T TENSION
Check the belt and replace it with a new one in the following cases.
• The belt is cracked or peeled.
• The belt is worn and split lengthwise.
1.
Loosen lock nut (2) of push bolt (1).
2.
Tighten push bolt (1) fully.
3.
Loosen the tension pulley.
4.
Replace the belt.
5.
Loosen push bolt (1) until the thread portion comes out ap-
proximately
65 mm.
6.
Tighten lock nut (2).
MAINTENANCE PROCEDURE MAINTENANCE
4-34
