4.
Look

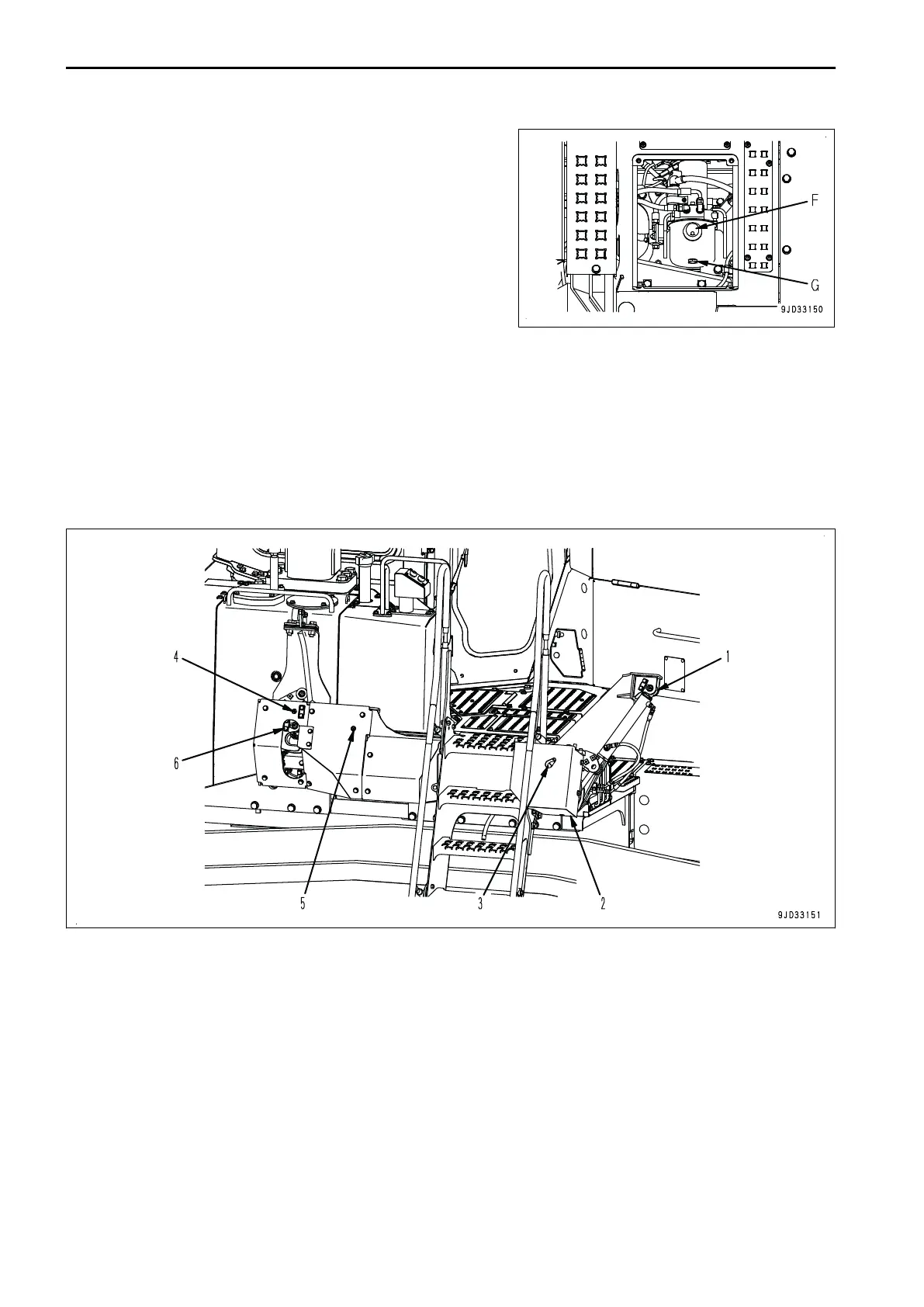

at the sight gauge (G) and check if the oil surface
can be seen.
5.
If the oil surface cannot be seen, add the Komatsu genu-
ine power train oil TO10 through the oil filler port (F).
EVERY 1000 HOURS MAINTENANCE
METHOD FOR LUBRICATING
NOTICE
Komatsu recommends using Komatsu genuine grease fitting for greasing.
1.
Stop the engine.
2.
Lower the ladder to the lowest position.
3.
By using a grease pump, pump in grease through the grease fitting shown by arrow.
(1) Ladder cylinder pin (bottom side)
(2) Ladder cylinder pin (head side)
(3) Ladder pin
(4) Hook
(5) Hook cylinder pin (bottom side)
(6) Hook cylinder pin (head side)
4.
After greasing, wipe off any old grease that is pushed out.
HANDLE HYDRAULIC TYPE LADDER ATTACHMENTS AND OPTIONS
6-22
To Next Page
