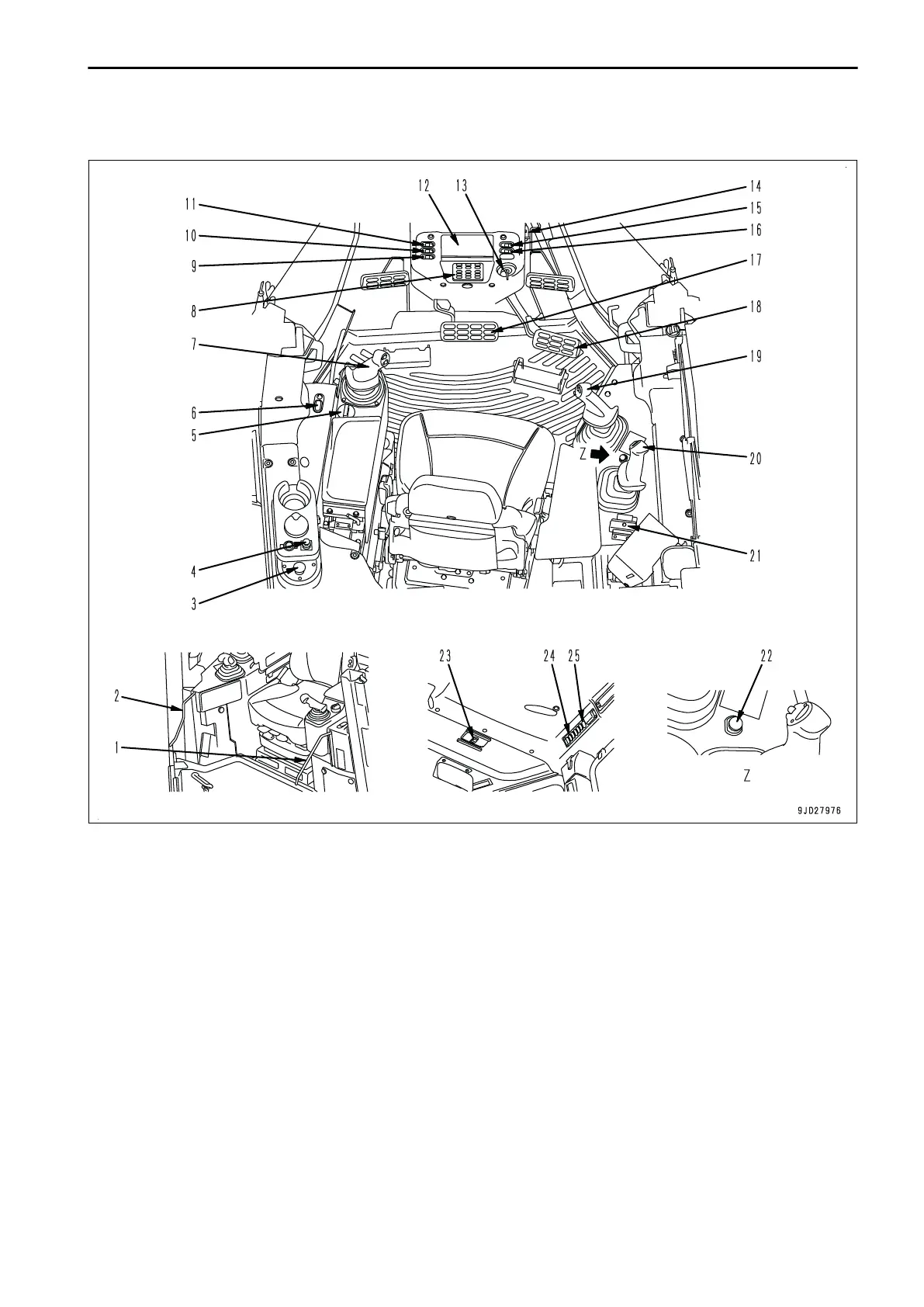

CONTROLS AND GAUGES NAMES
(1) Parking brake lever
(2) W
ork equipment lock lever
(3) Engine emergency shut down switch (if equipped)
(4) Cigarette lighter
(5) Fuel control dial
(6) Console lifter switch
(7) Joystick (steering, directional and gear shift lever)
(8) Air conditioner panel or heater panel
(9) Engine room light switch (if equipped)
(10) Rear lamp switch
(11) Head lamp, working lamp switch
(12) Machine monitor
(13) Starting switch
(14) Engine shutdown secondary switch
(15) Additional working lamp switch (if equipped)
(16) Access light switch (if equipped)
(17) Brake pedal
(18) Decelerator pedal
(19) Blade control lever
(20) Ripper control lever
(21) Pin puller control switch (if equipped)
(22) Horn switch
(23) Room lamp
(24) Wiper switch
(25) Revolving lamp switch (if equipped)
OPERATION GENERAL VIEW
