6.
Clean
the filter head, fill the new filter cartridge with clean fuel, thinly apply oil to the packing surface, then
install it to the filter head.
NOTICE

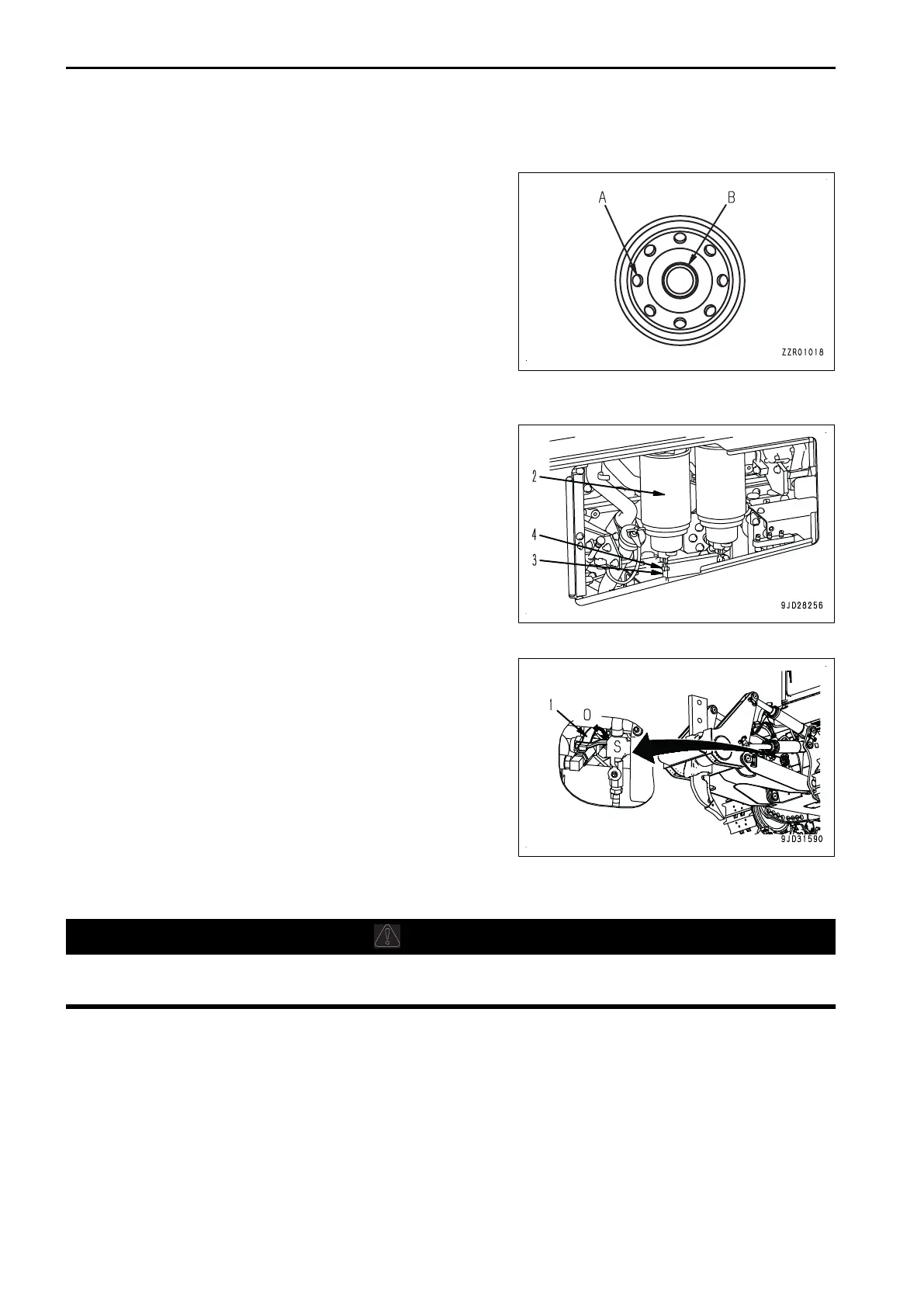

• When filling the filter cartridge with fuel, do not re-
move the cap (B) at center. Always fill with fuel
from small holes (A) (8 places) on the dirty side.
• After filling with fuel, remove the cap (B) at center
and install the fuel filter.
• Always fill with clean fuel. Be careful not to let any
dirt or dust get into the fuel. In particular, center
portion is the clean side, so do not remove the cap
(B) when filling with fuel. Be careful not to let dirt
or dust get into the center portion on the clean
side.
7.
When installing the cartridge, tighten it until the packing
surface
contacts the sealing surface of the filter head, then
tighten it 3/4 of a turn.
REMARK
If the filter cartridge is tightened too far, the packing will be
damaged and this will lead to leakage of fuel. If the filter
cartridge is tightened too loose, fuel will also leak from the
packing, so always tighten to the specified angle.
When tightening with a filter wrench, be extremely careful
not to dent or damage the filter.
8.
Connect the hose (3) to the drain valve (4).
9.
Open the fuel supply valve (1) of the fuel tank.
(S): CLOSE
(O): OPEN
METHOD
FOR REPLACING TRANSMISSION FILTER ELEMENT AND TORQUE
CONVERTER FILTER ELEMENT
WARNING
Before opening the filter case, depress the brake pedal several times to release the pressure, then lock
the brake pedal. If pressure remains in the filter
, the oil may spurt out.
MAINTENANCE PROCEDURE MAINTENANCE
4-54
