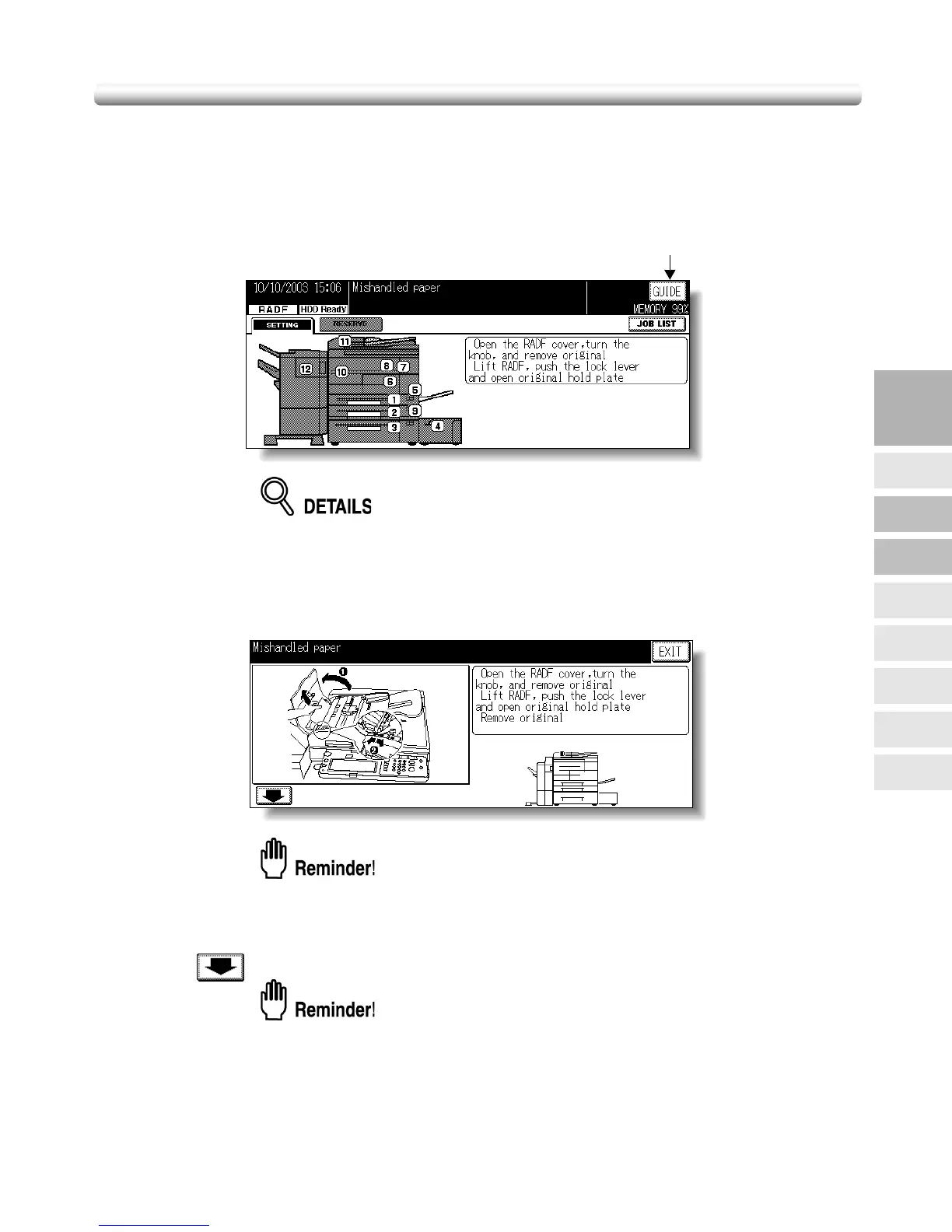

Clearing Mishandled Paper
When a paper misfeed occurs, the copier stops making copies and mishandled paper
codes display on the screen to indicate misfeed area(s). Copying operation cannot be
continued until all the misfeed locations are cleared.
The above screen displays all the jam locations for the sake of explanation.
Only the relevant numbers appear when a paper misfeed actually occurs.
1. Touch GUIDE on the screen.
The screen illustrating the method for the disposal action will be displayed.
Before performing the clearing procedure, see p. 1-2 for the caution label
locations inside the machine.
2. Follow the procedure on the screen to remove misfed paper.
Touch on the screen, if provided, to go to the next page of a series of illustrations.
When removing mishandled paper, be sure to leave no torn paper inside the
machine.
GUIDE key
Touch to display the subsequent
screens for the disposal action.
Paper jam position
Numbers flashing or
lighting indicate the
jammed positions.
display
Instruction message
An action will be
displayed.
area
