[3] Preset Key (continued)
13-17
7 Touch OK to complete the setting and return to the Preset Key Setting Menu Screen.
8 Touch RETURN to restore the System/Copier Setting Menu Screen.
9 If no further changes are required, turn the machine power OFF then ON for normal copying
operations.
[2] Magnification
The preset and userset ratios are used to reduce and enlarge the original image to
accommodate copy paper size, and are available on the Basic Screen.
NOTE:
Normally, users are allowed to change the three USER PRESETs in the bottom line
on the Userset Magnification Setting Screen. The preset keys in the top and middle
lines can also be programmed in 2-5 DIPSW mode; however, changing them is not
recommended.
❒ Setting options : Userset or Preset ratio
❒ Default setting : USER PRESET1: 2.00
USER PRESET2: 4.00
USER PRESET3: 0.50
Procedure
1 Touch 3. Preset key on the System/Copier Setting Menu Screen to display the Preset Key
Setting Menu Screen.
2 Touch 2. Magnification to display the Userset Magnification Setting Screen.
3 Touch the desired Magnification key you want to change, then enter a ratio from 0.25~4.00,
using the keypad.
If a ratio under 0.25 is entered, 0.25 will be displayed.
If a ratio over 4.00 is entered, 4.00 will be displayed.
4 Touch OK to complete the setting and return to the Preset Key Setting Menu Screen.
5 Touch RETURN to restore the System/Copier Setting Menu Screen.
6 If no further changes are required, turn the machine power OFF then ON for normal copying
operations.

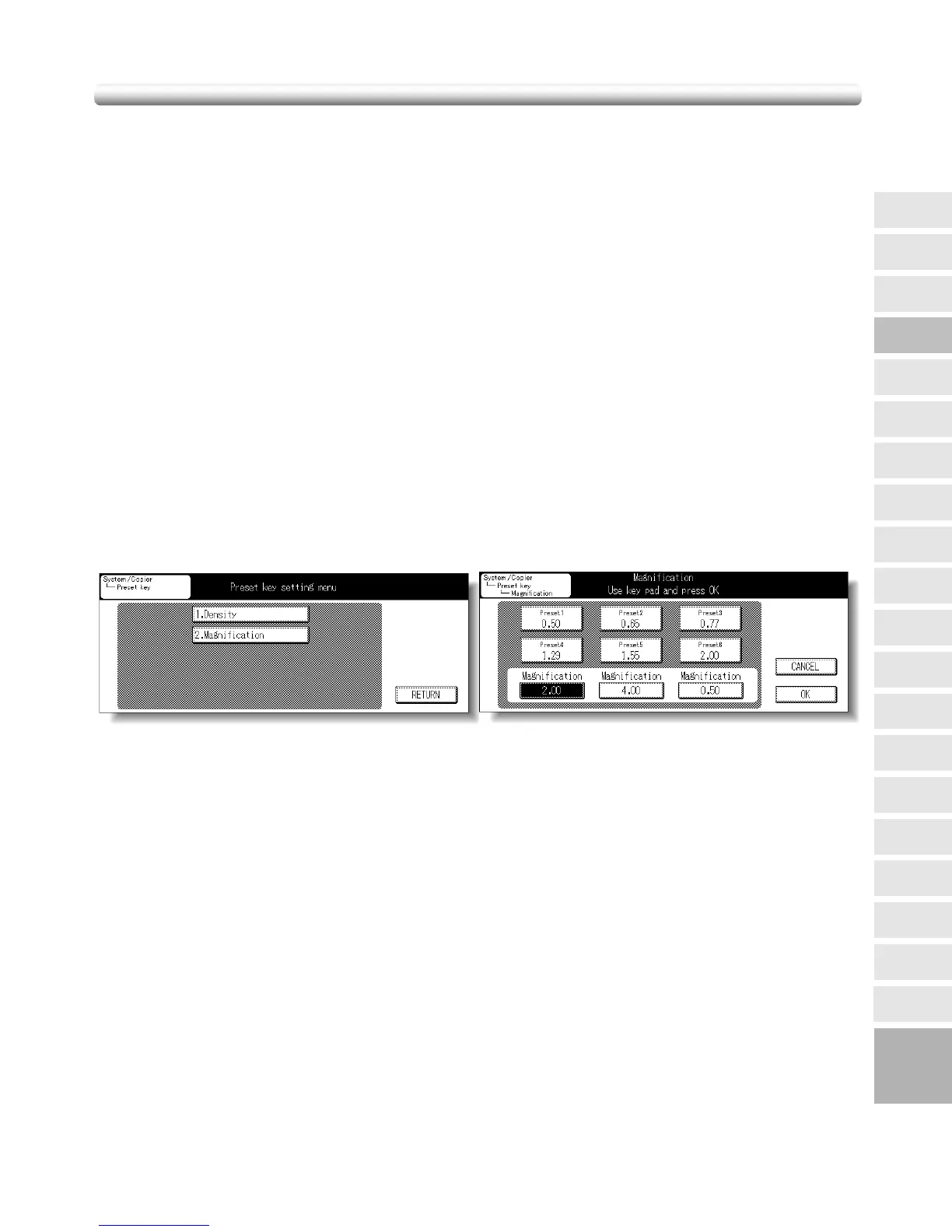

Preset Key Setting Menu Screen
Userset Magnification Setting Screen
13
