ENGINE
BX1870,BX2370,BX2670,LA203A,LA243A,RCK48(P),RCK54(P),RCK60B,RCK60D,RCK54D, WSM
1-S26
[2] DISASSEMBLING AND ASSEMBLING
(1) Separating Engine

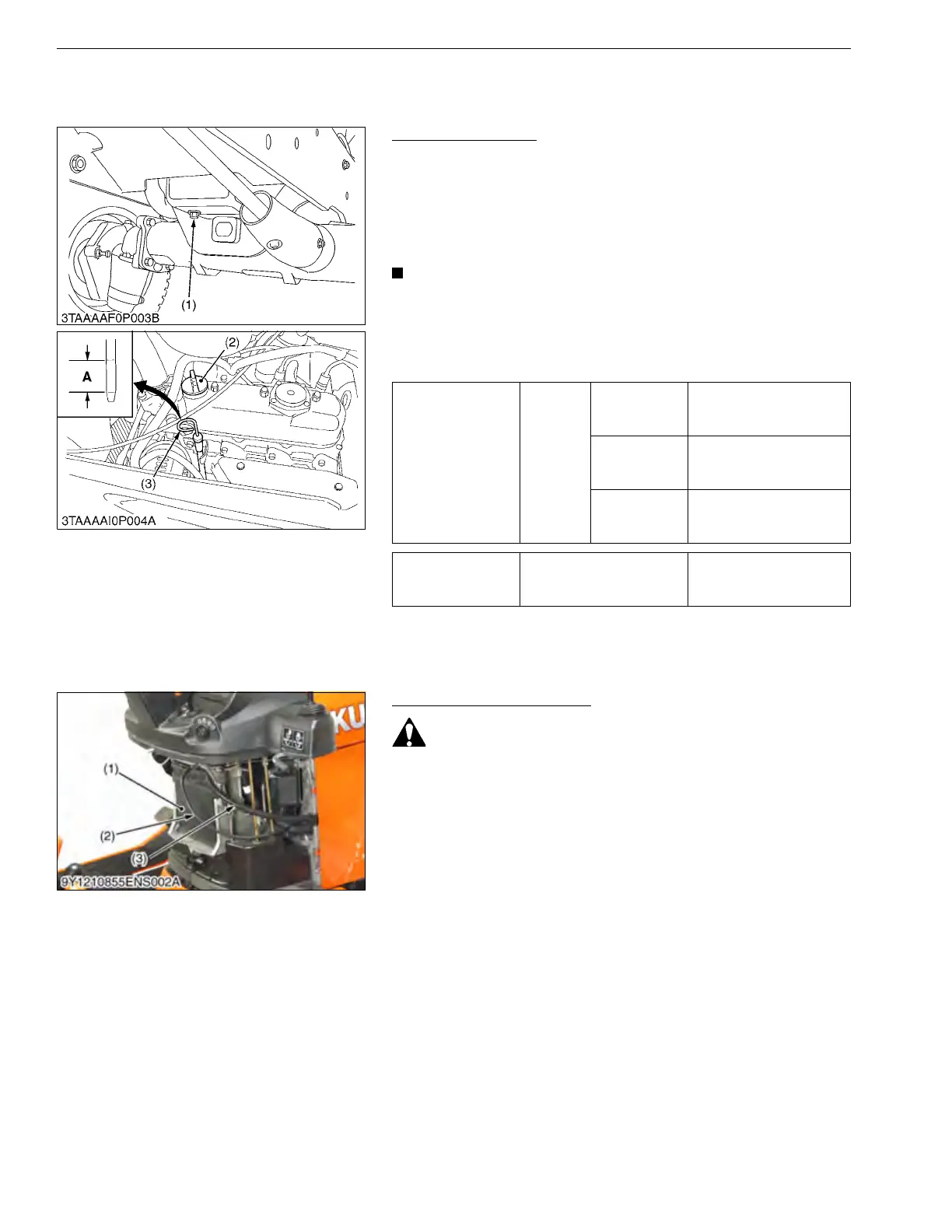

Draining Engine Oil
1. Start and warm up the engine for approx. 5 minutes.
2. Place an oil pan underneath the engine.
3. Remove the drain plug (1) to drain oil.
4. After draining, screw in the drain plug (1).
(When refilling)
• Fill the engine oil up to the upper line on the dipstick (3).
• Never mix two different type of oil.
• Use the proper SAE Engine Oil according to ambient
temperature.
Refer to "4. LUBRICANTS, FUEL AND COOLANT" on page
G-9.
9Y1210855ENS0023US0
Battery Cables and Battery
• When disconnecting the battery cables, disconnect the
negative cable from the battery first. When connecting,
connect the positive cable to the battery first.
1. Remove the under panel.
2. Disconnect the negative cable (2) from the battery (1).
3. Disconnect the positive cable (3) from the battery (1) and
remove the battery (1).
9Y1210855ENS0024US0
Engine oil Capacity
BX1870D
(D722-E4)
2.9 L
3.1 U.S.qts
2.6 Imp.qts
BX2370D
(D902-E4)
3.1 L
3.3 U.S.qts
2.7 Imp.qts
BX2670D
(D1005-E4)
3.5 L
3.7 U.S.qts
3.1 Imp.qts
Tightening torque
Drainer plug with copper
gasket (M12, 1.25)
33 to 37 N·m
3.3 to 3.8 kgf·m
24 to 27 lbf·ft
(1) Drain Plug
(2) Oil Inlet
(3) Dipstick
A: Oil level is acceptable within this
range.
(1) Battery
(2) Negative Cable
(3) Positive Cable
