Kubota BX1870 Workshop Manual

FRONT LOADER
BX1870,BX2370,BX2670,LA203A,LA243A,RCK48(P),RCK54(P),RCK60B,RCK60D,RCK54D, WSM
8-S6
[2] FRONT LOADER
(1) Bucket, Boom and Hydraulic Cylinders
Bucket (Quick Hitch)
NOTE
• Attachments should be located on a flat, firm surface when
attaching and detaching them.

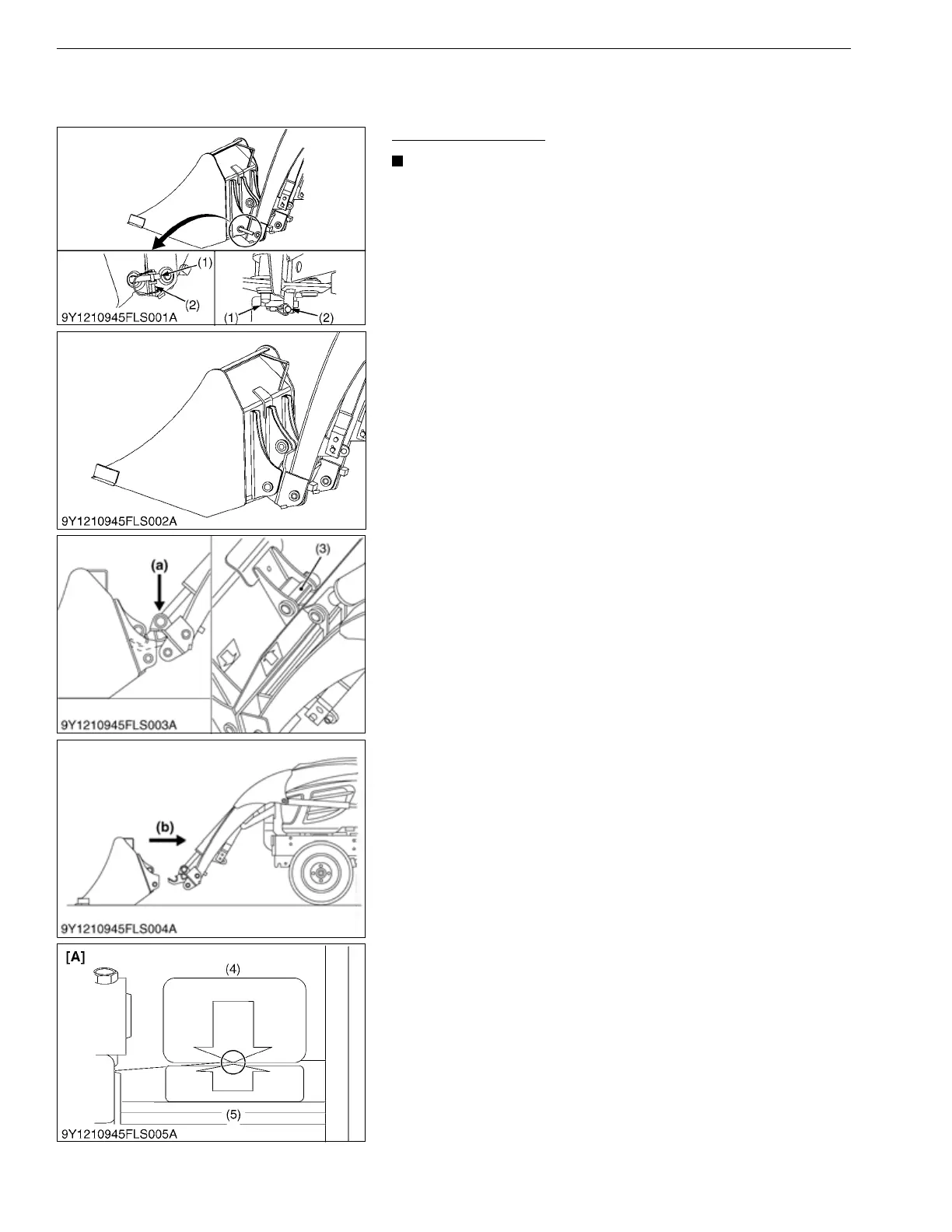

1. Remove the both snapper pins (2) and hitch pins (1).
2. Operate the loader control lever to the "Dump" position until the
attachment at ground level.
3. Lower the boom of the loader until the quick coupler receivers
comes off from the pin (3) at the upper bosses of the attachment
seat.
4. Move the tractor rearward slowly.
(When reassembling)
• Be sure to assemble the hitch pins (1) and snapper pins (2)
properly as shown the figure.
• Move the tractor slowly for forward until the arrow marker on the
attachment label is close to that on the quick coupler label as
shown figure.
9Y1210855FLS0017US0
(1) Hitch Pin
(2) Snapper Pin
(3) Pin
(4) Front Attachment Side
(5) Quick Coupler Side
(a) Lower
(b) Move Rearward
[A] When viewed from the operator's
seat
KiSC issued 02, 2017 A
