FRONT LOADER
BX1870,BX2370,BX2670,LA203A,LA243A,RCK48(P),RCK54(P),RCK60B,RCK60D,RCK54D, WSM
8-S4
4. DISASSEMBLING AND SERVICING
[1] DISMOUNTING AND MOUNTING FRONT LOADER
• When dismounting the loader, park the tractor on flat and hard ground, apply the parking brake.
• When starting the engine or using the hydraulic control valve, always sit in the operator's seat.
9Y1210855FLS0004US0

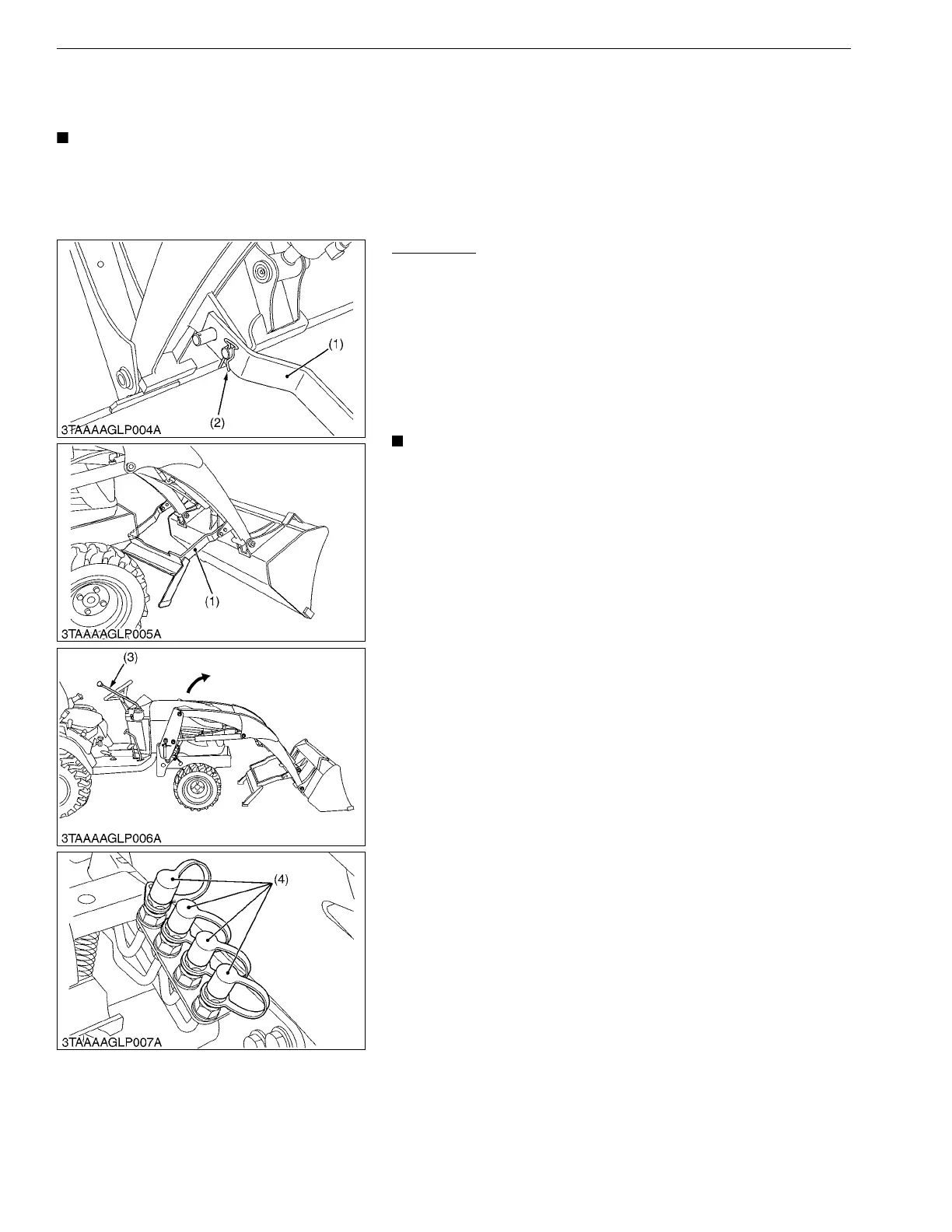

(1) Dismounting Front Loader From Tractor
Side Frame
1. Raise the boom until the stands (1) can be rotated.
2. Stop the engine.
3. Remove the spring pin (2) holding the stand (1) to the boom.
4. Slide the stands (1) leftward and rotate it until the hole in the
stand and pin on the boom are aligned. Then slide the stand (1)
rightward and insert the spring pin (2) as shown.
5. Start the engine and run at idle.
6. Dump the bucket approximately 20 degrees.
7. Lower the boom and raise the front wheels slightly.
• Lift the front wheels with the bucket. Do not try to lift the
with the stand.
8. Stop the engine.
9. Remove the mounting pins from the loader side frames and hold
them in the plate of side frame.
10. Start the engine and run at idle. Slowly move the hydraulic
control lever (3) to rollback position to raise the loader side
frames up and out of the receives of the main frames as shown.
11. Stop the engine.
12. Slowly release all hydraulic pressure by moving the hydraulic
control lever (3) in all directions.
13. Disconnect the four hoses with quick couplers at the control
valve and place them on the right side of the boom.
14. Place the protective caps and plugs (4) on the quick coupler
ends.
15. Start the engine and slowly back the tractor away from the
loader.
9Y1210855FLS0005US0
(1) Stand
(2) Spring Pin
(3) Hydraulic Control Lever
(4) Protective Plug
To Next Page
