ELECTRICAL SYSTEM
BX1870,BX2370,BX2670,LA203A,LA243A,RCK48(P),RCK54(P),RCK60B,RCK60D,RCK54D, WSM
6-S15

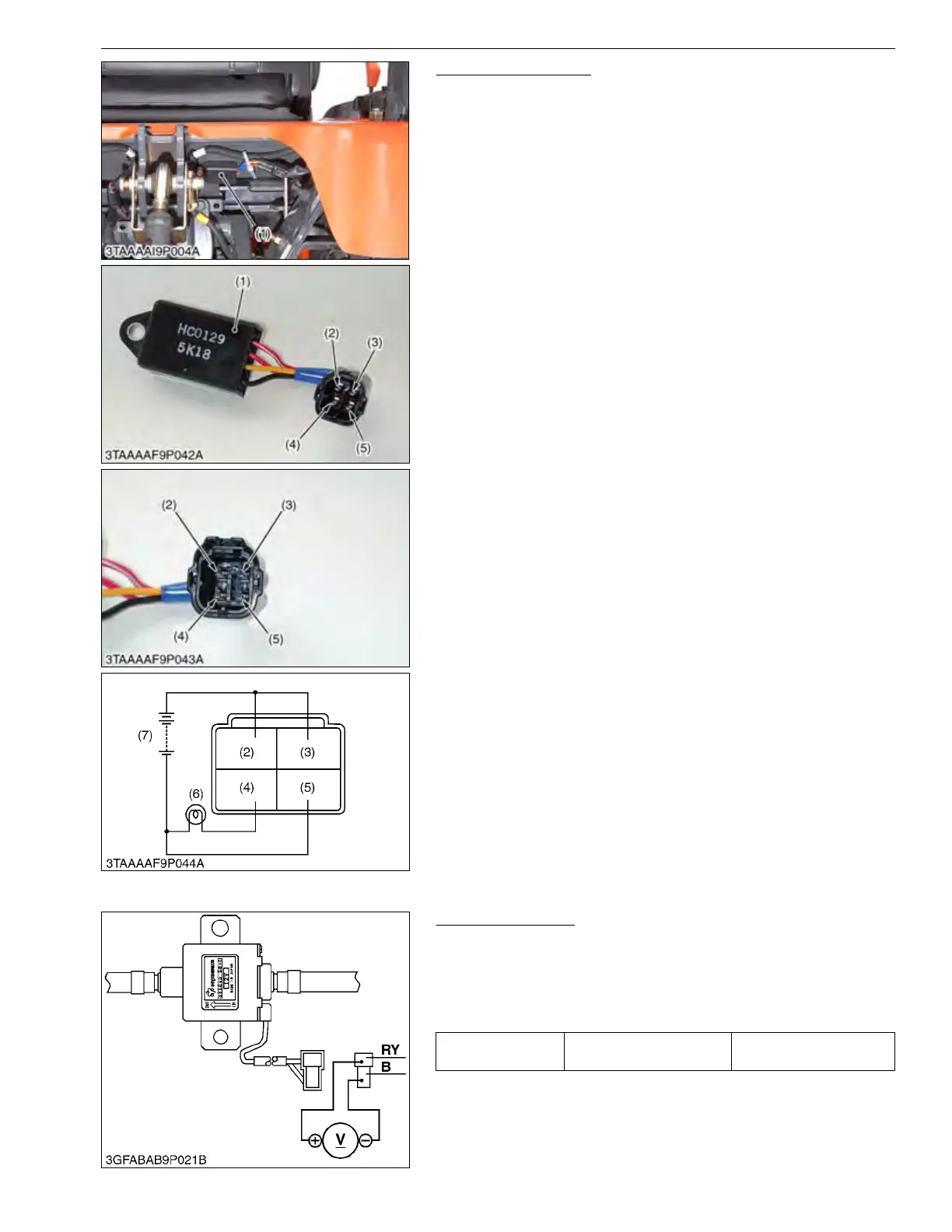

Checking OPC Timer
1. Remove the OPC timer. (The OPC timer is located under the
fender center stay.)
2. Connect the jumper leads across the battery terminal and the
Red / White terminal (2), and across the battery positive
terminal and the Yellow terminal (3).
3. Connect the jumper lead across the battery negative terminal
and the Black terminal (5), and across the battery negative
terminal and the Blue terminal.
4. Connect the jumper lead across the Red terminal (4) and the
bulb terminal.
5. The bulb lights up when disconnecting the jumper lead from the
Red / White terminal (2) 0.7 to 1.3 seconds, the OPC timer (1)
is proper.
9Y1210855ELS0017US0
(7) Fuel Pump
Connector Voltage
1. Disconnect the 2P connector from the fuel pump.
2. Turn the main switch key to the "ON" position, and measure the
voltage with a voltmeter between the connector terminals.
3. If the voltage differs from the battery voltage, the wiring harness
or main switch is faulty.
9Y1210855ELS0018US0
(1) OPC Timer
(2) Red / White Terminal (From Battery)
(3) Yellow Terminal (From OPC Switch)
(4) Red Terminal
(To Key Stop Solenoid)
(5) Black Terminal (To Frame Earth)
(6) Bulb (Load)
(7) Battery
Voltage
Between connector
terminals
Approx. battery voltage
To Next Page
