Kubota BX1870 Workshop Manual

FRONT LOADER
BX1870,BX2370,BX2670,LA203A,LA243A,RCK48(P),RCK54(P),RCK60B,RCK60D,RCK54D, WSM
8-S9

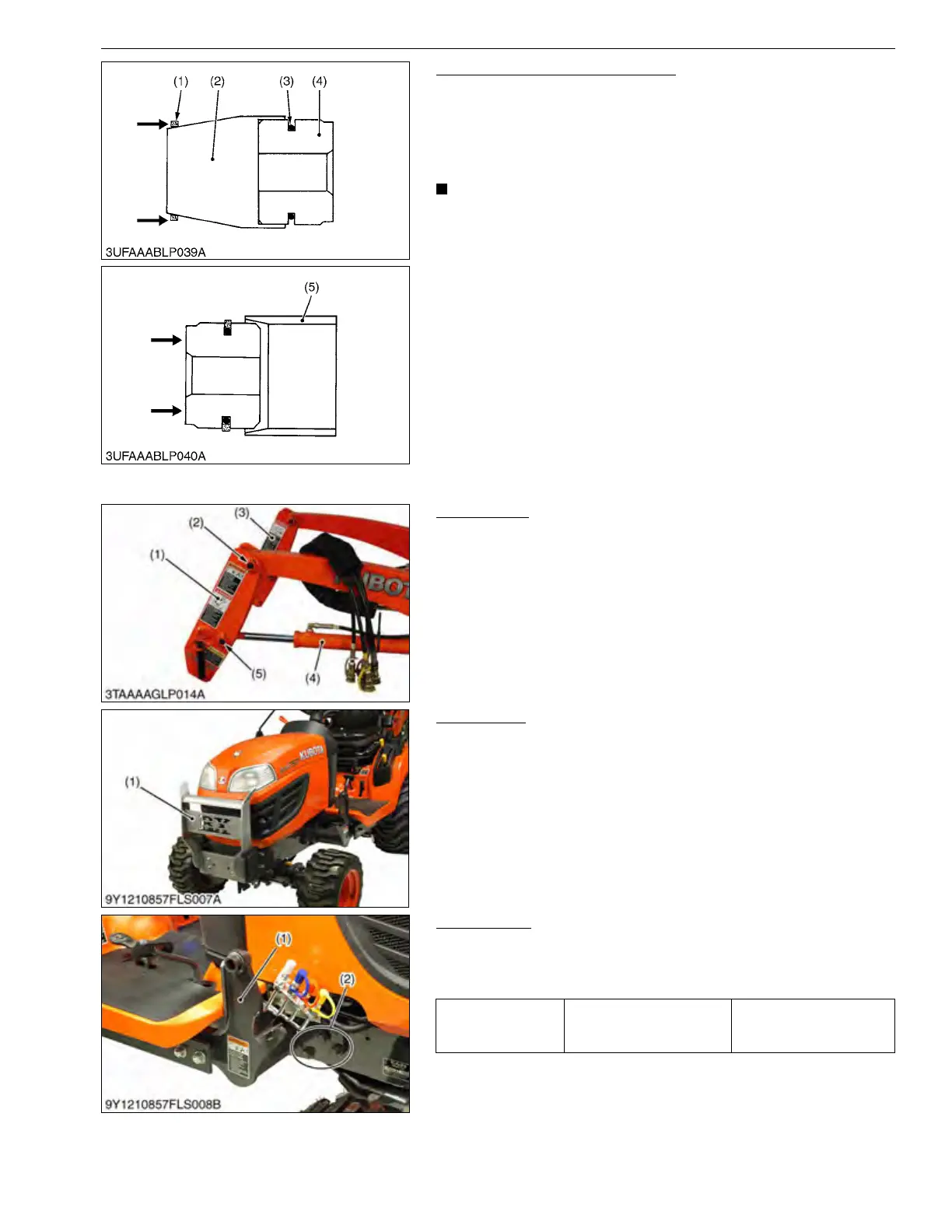

Installing O-ring and Piston Seal
1. Place the slide jig (2) on the piston (4).
2. Install the O-ring (3) to the piston using the slide jig.
3. Install the piston seal (1) over the O-ring using the slide jig.
4. Compress the piston seal to the correct size by installing the
piston into the correcting jig (5).
NOTE
• Do not turn (roll) the piston seal as you install it.
9Y1210855FLS0012US0
(2) Side Frames, Front Guard and Main Frames
Side Frames
1. Remove the pins (2), (5).
2. Remove the side frames (1) from the boom assembly (3) and
the boom cylinder (4).
9Y1210855FLS0013US0
Front Guard
1. Remove the front guard (1).
9Y1210855FLS0014US0
Main Frames
1. Remove the main frame mounting screw (2) from the tractor
body.
2. Remove the main frame (1).
9Y1210855FLS0015US0
(1) Piston Seal
(2) Slide Jig
(3) O-ring
(4) Piston
(5) Correcting Jig
(1) Side Frame
(2) Pin
(3) Boom Assembly
(4) Boom Cylinder
(5) Pin
(1) Front Guard
Tightening torque
Main frame mounting screw
(M14)
147 N·m
15.0 kgf·m
108 lbf·ft
(1) Main Frame (2) Main Frame Mounting Screw
KiSC issued 02, 2017 A
