MOWER
BX1870,BX2370,BX2670,LA203A,LA243A,RCK48(P),RCK54(P),RCK60B,RCK60D,RCK54D, WSM
7-S13
5. CHECKING AND ADJUSTING
[1] MOWER ADJUSTMENT
To avoid serious injury:
• Park the tractor on a firm, flat and level surface and set the parking brake.
• Stoop the engine, remove the key, and allow the blades to stop before making adjustments.
• Wear heavy gloves or wrap end of blade with a rag when you handle blades.
• Before starting the engine, make sure that all levers (including auxiliary control levers) are in their neutral
positions, that the parking brake is engaged, and that both the clutch and the Power Take-Off (PTO) are
disengaged (OFF).
9Y1210855MOS0010US0

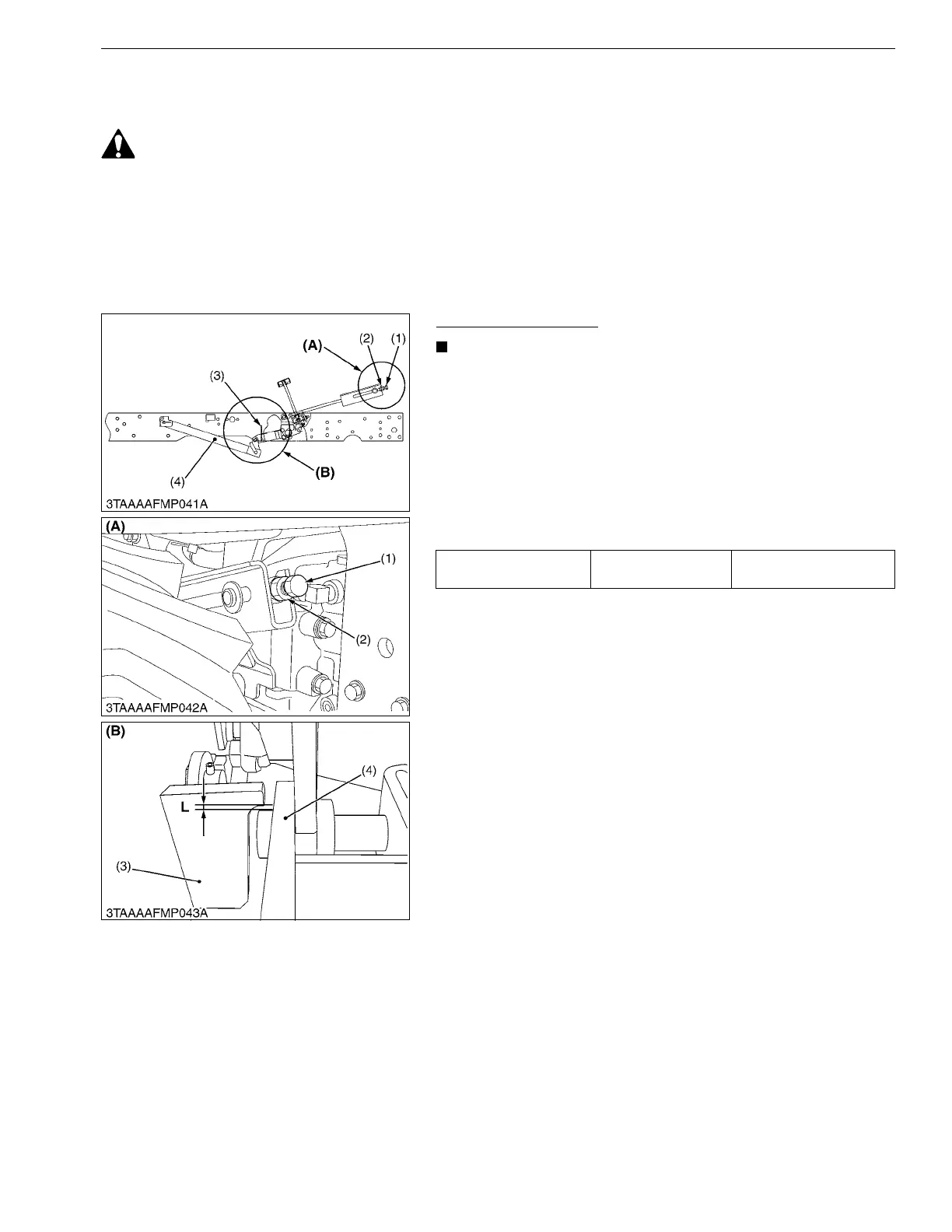

Adjusting Mower Link
Readjustment is necessary after following situation:
• Gear box is disassembled for maintenance.
• Attach different drive over mower deck.
• Re-attach frame link.
1. Tire pressure must be correct.
2. Move the hydraulic control lever rearward to raise the mower to
the highest position.
3. Stop the engine and remove the key.
4. Adjust the left side links with bolt so that the clearance "L" is as
follows.
9Y1210855MOS0011US0
Clearance "L" between
stopper and rear link
Factory specification
0 to 0.5 mm
0 to 0.01 in.
(1) Bolt
(2) Lock Nut
(3) Stopper
(4) Rear Link
L: 0 to 0.5 mm (0 to 0.01 in.)
(A) Adjustment Point
(B) Check Point
To Next Page
