(13) DC Outlet

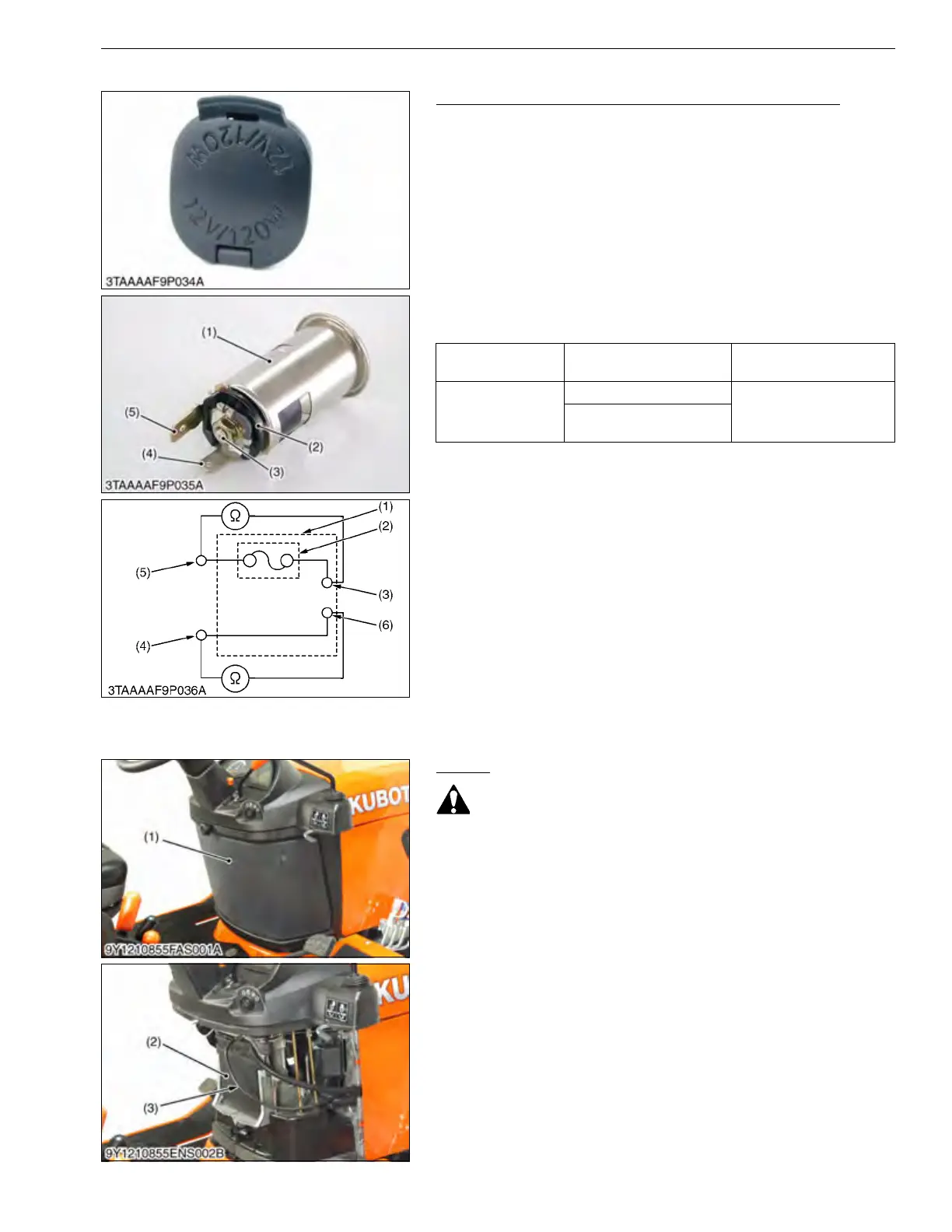

DC Outlet Connector Voltage and DC Outlet Continuity
1. Disconnect the connector from the DC outlet. And turn the main
switch "ON".
2. Measure the voltage with a voltmeter across the connector red
/ blue lead and the chassis.
If the voltage differs from the battery voltage the wiring harness
is faulty.
3. Disconnect the connector from the DC outlet. Since the DC
outlet can not be removed easily, measure the continuity with a
ohm meter across the plus terminal (4) and the nut (3), and
across the earth terminal (5) and the DC outlet case (6).
4. If the resistance differs from 0 ohm, the DC outlet body (1) is
faulty.
9Y1210855ELS0046US0
(14) Meter Panel
[A] Removing The Meter Panel
Battery
• When disconnecting the battery cables, disconnect the
negative cable from the battery first. When connecting,
connect the positive cable to the battery first.
1. Remove the under panel (1).
2. Disconnect the negative cable (3) from the battery (2).
9Y1210855ELS0047US0
DC outlet connector
voltage
Red / Blue lead – Chassis Battery voltage
DC outlet continuity
Plus terminal – Nut
0 Ω
Earth terminal –
DC outlet case
(1) DC Outlet Body
(2) Fuse
(3) Nut
(4) Plus Terminal (for Battery)
(5) Earth Terminal (for Chassis)
(6) DC Outlet Case
(1) Under Panel
(2) Battery
(3) Negative Cable
To Next Page
