ELECTRICAL SYSTEM
BX1870,BX2370,BX2670,LA203A,LA243A,RCK48(P),RCK54(P),RCK60B,RCK60D,RCK54D, WSM
6-S29

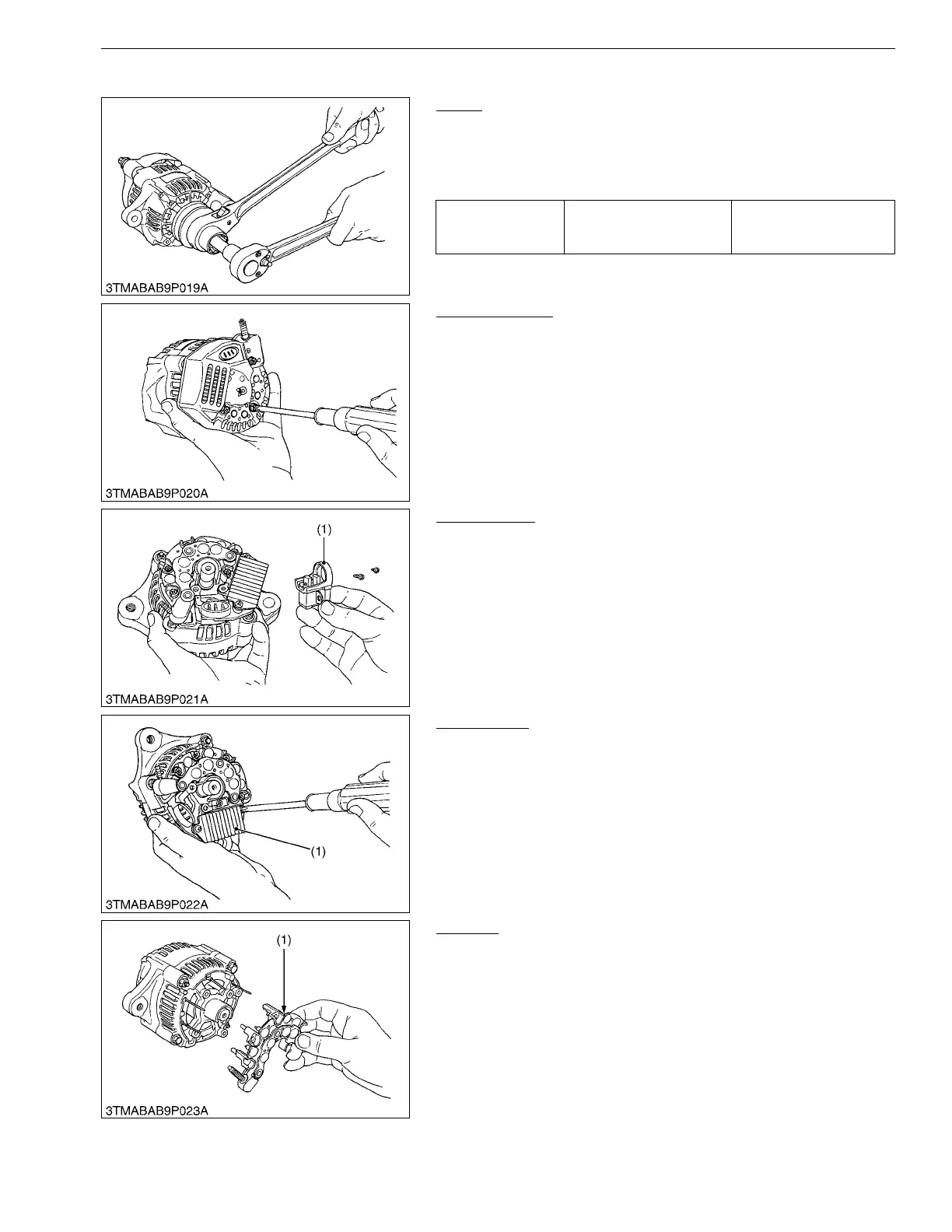

(2) Alternator
Pulley
1. Secure the hexagonal end of the pulley shaft with a
double-ended ratchet wrench as shown in the figure, loosen the
pulley nut with a socket wrench and remove it.
(When reassembling)
9Y1210436ELS0004US0
Rear End Cover
1. Remove the three rear end cover screws and the B terminal nut,
and remove the rear end cover.
9Y1210855ELS0055US0
Brush Holder
1. Remove the two screws holding the brush holder, and remove
the brush holder (1).
9Y1210855ELS0059US0
IC Regulator
1. Remove the three screws holding the IC regulator, and remove
the IC regulator (1).
9Y1210855ELS0060US0
Rectifier
1. Remove the four screws holding the rectifier and the stator lead
wires.
2. Remove the rectifier (1).
9Y1210436ELS0008US0
Tightening torque Pulley nut
58.4 to 78.9 N·m
5.95 to 8.05 kgf·m
43.1 to 58.2 lbf·ft
(1) Brush Holder
(1) IC Regulator
(1) Rectifier
