ELECTRICAL SYSTEM
BX1870,BX2370,BX2670,LA203A,LA243A,RCK48(P),RCK54(P),RCK60B,RCK60D,RCK54D, WSM
6-M7
4. LIGHTING SYSTEM
The lighting system consists of main switch, head light switch, turn signal light switch, hazard switch, head lights,
turn signal lights, tail lights, and etc..

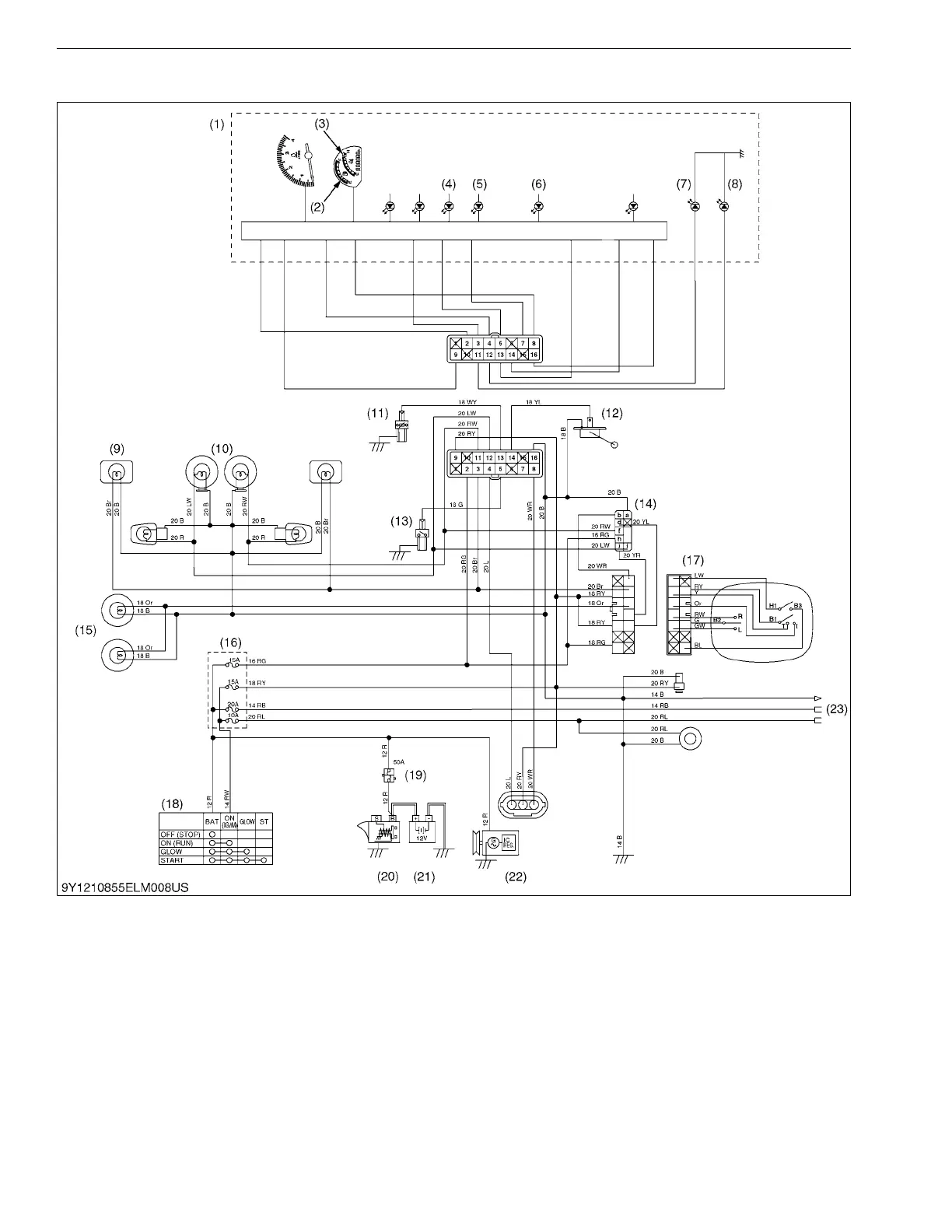

9Y1210855ELM0009US0
(1) Meter Panel
(2) Fuel Gauge
(3) Water Temperature Gauge
(4) Battery Charge Indicator
(5) Oil Pressure Lamp
(6) Glow Indicator
(7) Turn (Left)
(8) Turn (Right)
(9) Tail Light (12.8 W)
(10) Hazard Lamp (23 W)
(11) Thermo Unit
(12) Fuel Sensor
(13) Oil Pressure Switch
(14) Flasher Unit
(15) Head Light (37.5 W)
(16) Fuse
(17) Combination Switch
(18) Main Switch
(19) Slow Blow Fuse
(20) Starter Motor
(21) Battery
(22) Alternator
(23) Working Light
