Kubota BX1870 Workshop Manual

MOWER
BX1870,BX2370,BX2670,LA203A,LA243A,RCK48(P),RCK54(P),RCK60B,RCK60D,RCK54D, WSM
7-S7
[2] RCK54D-26BX, RCK60D-26BX
Assembling Mower

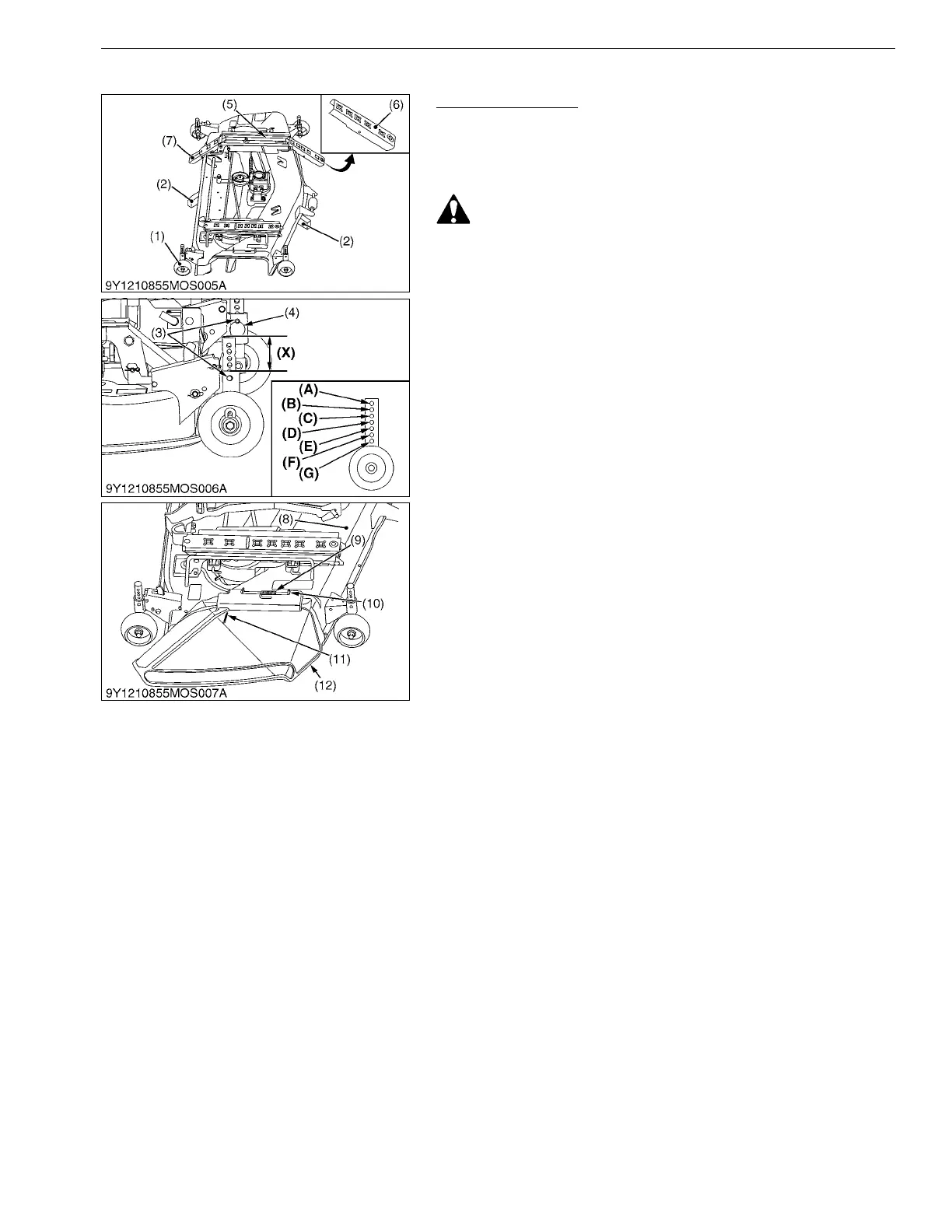

1. Place the mower on blocks as illustrated.
2. Attach all the anti-scalp rollers to the arms of the deck. Put clevis
pins from outside and snap rings inside in the "F" position.
4.5 holes (X) must be visible.
DANGER
To avoid serious injury or death:
• Do not operate the mower without the discharge deflector
properly in position.
3. Attach the discharge deflector to the deck with the spring (9),
discharge pin (10) and cotter pin (11).
Secure the spring to the discharge deflector as illustrated.
9Y1210855MOS0030US0
(1) Anti-scalp Roller
(2) Block
(3) Clevis Pin
(4) Snap Ring
(5) F Spring
(6) Ramp F
(7) Ramp R
(8) Deck
(9) Spring
(10) Discharge Pin
(11) Cotter Pin
(12) Discharge Deflector
KiSC issued 02, 2017 A

Kubota BX1870 Specifications

General

Engine Type	Diesel
Engine Power	18 hp
Transmission	Hydrostatic
Fuel Capacity	6.6 gallons
Wheelbase	55.1 inches
Type	Sub-Compact Utility Tractor
Engine	Kubota D722
PTO Power	13.5 hp
Number of Cylinders	3
Cooling	Liquid
Drive	4WD
Drive Type	4WD
Width	44.5 inches
Hydraulic System Type	Open center
PTO Speed	540 RPM
Displacement	0.719 L
Fuel Tank Capacity	6.6 gallons
Gears	Infinite (2-range) forward and reverse
Front Tire Size	18x8.5-10
Rear Tire Size	26x12-12
