Kubota BX1870 Workshop Manual

TRANSAXLE
BX1870,BX2370,BX2670,LA203A,LA243A,RCK48(P),RCK54(P),RCK60B,RCK60D,RCK54D, WSM
2-S29
(2) Hydraulic Cylinder
Hydraulic Cylinder

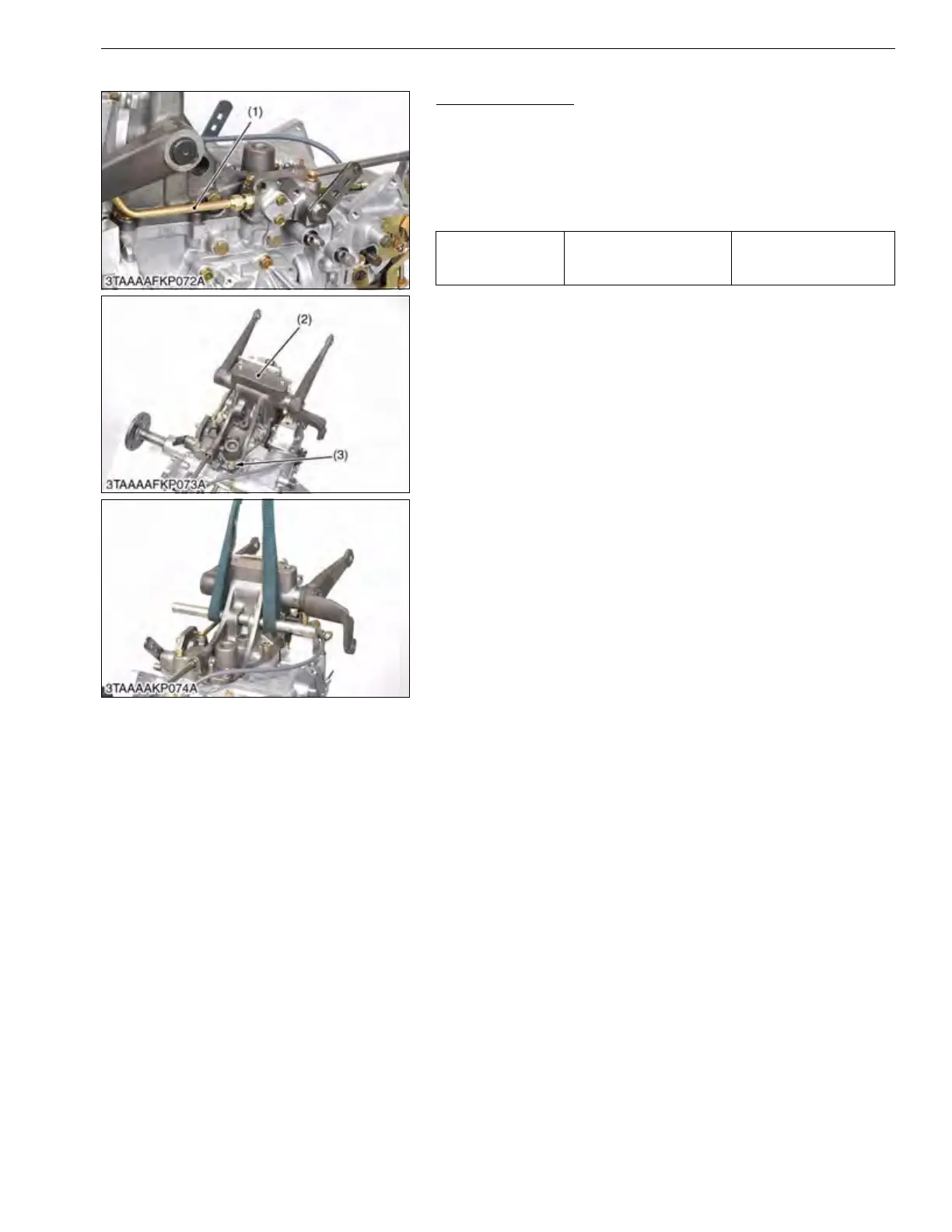

1. Disconnect the delivery pipe (1).
2. Remove the hydraulic cylinder mounting bolts (3).
3. Remove the hydraulic cylinder (2).
(When reassembling)
• Apply liquid gasket (Three Bond 1208D or equivalent) to the
joint surface of the transaxle case to the hydraulic cylinder.
9Y1210855TXS0041US0
Tightening torque
Hydraulic cylinder
mounting bolt
40 to 44 N·m
4.0 to 4.5 kgf·m
29 to 32 lbf·ft
(1) Delivery Pipe
(2) Hydraulic Cylinder
(3) Bolt
KiSC issued 02, 2017 A
