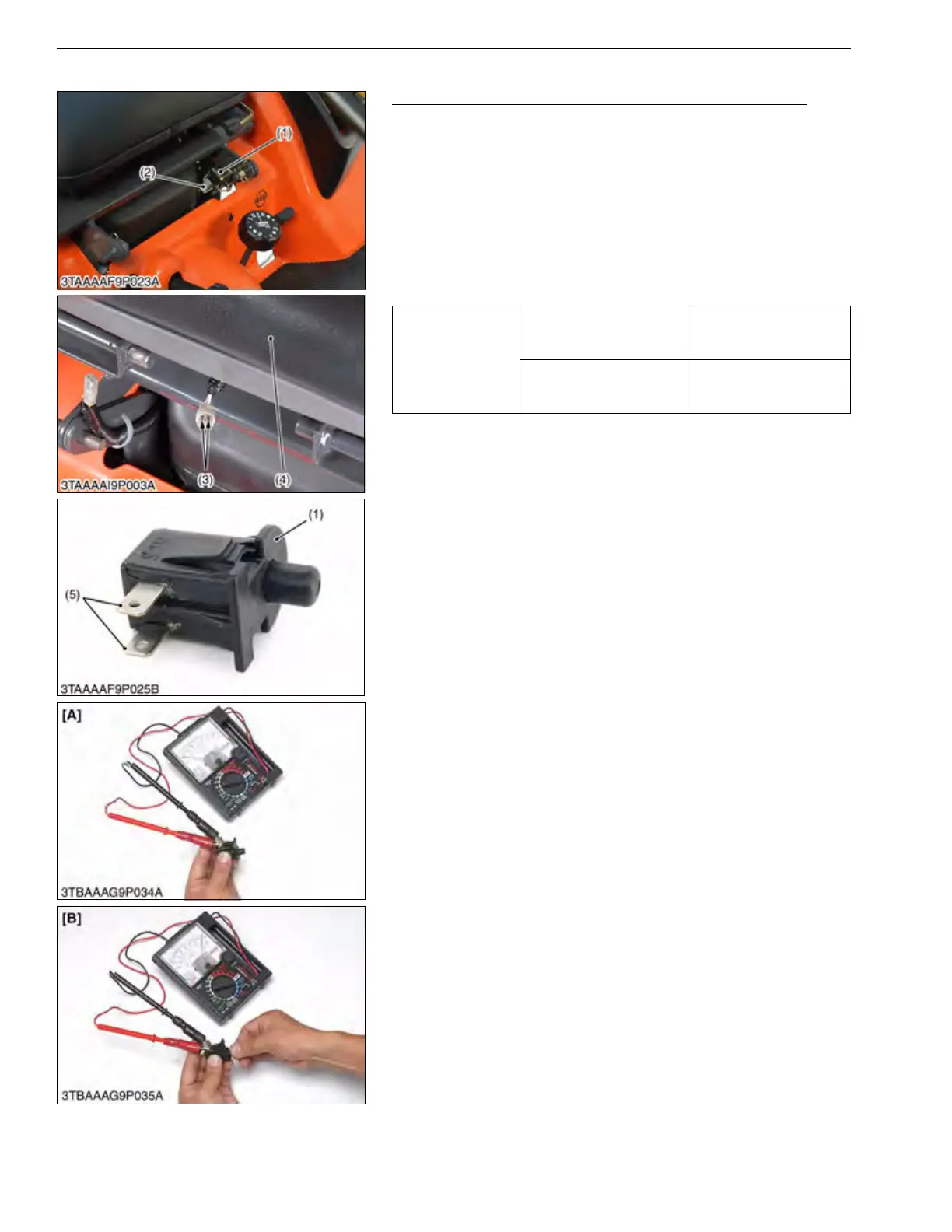

(6) Operator Presence Control (OPC) Switch
Seat Switch and Seat Turnover Switch Continuity Check
1. Disconnect the 2P connectors (2) from the seat turnover switch
(1) and the seat switch.
2. Remove the seat turnover switch (1).
3. Connect the circuit tester to the terminals (5).
(When switch is not pushed / When operator leave the seat)
1. Measure the resistance between terminals (5).
2. If continuity is not infinity, the switch is faulty. Replace it.
(When switch is pushed / When operator sits on the seat)
1. Measure the resistance between terminals (5).
2. If continuity is not 0 Ω, the switch is faulty. Replace it.
9Y1210855ELS0016US0
Resistance
When switch is not pushed
/ When operator leave the
seat
Infinity
When switch is pushed /
When operator sits on the
seat
0 Ω
(1) Seat Turnover Switch
(2) 2P Connector
(3) Seat Switch 2P Connector
(4) Seat
(5) Terminal
[A] Seat switch is not pushed.
[B] Seat switch is pushed.
