Kubota BX1870 Workshop Manual

ELECTRICAL SYSTEM
BX1870,BX2370,BX2670,LA203A,LA243A,RCK48(P),RCK54(P),RCK60B,RCK60D,RCK54D, WSM
6-S11

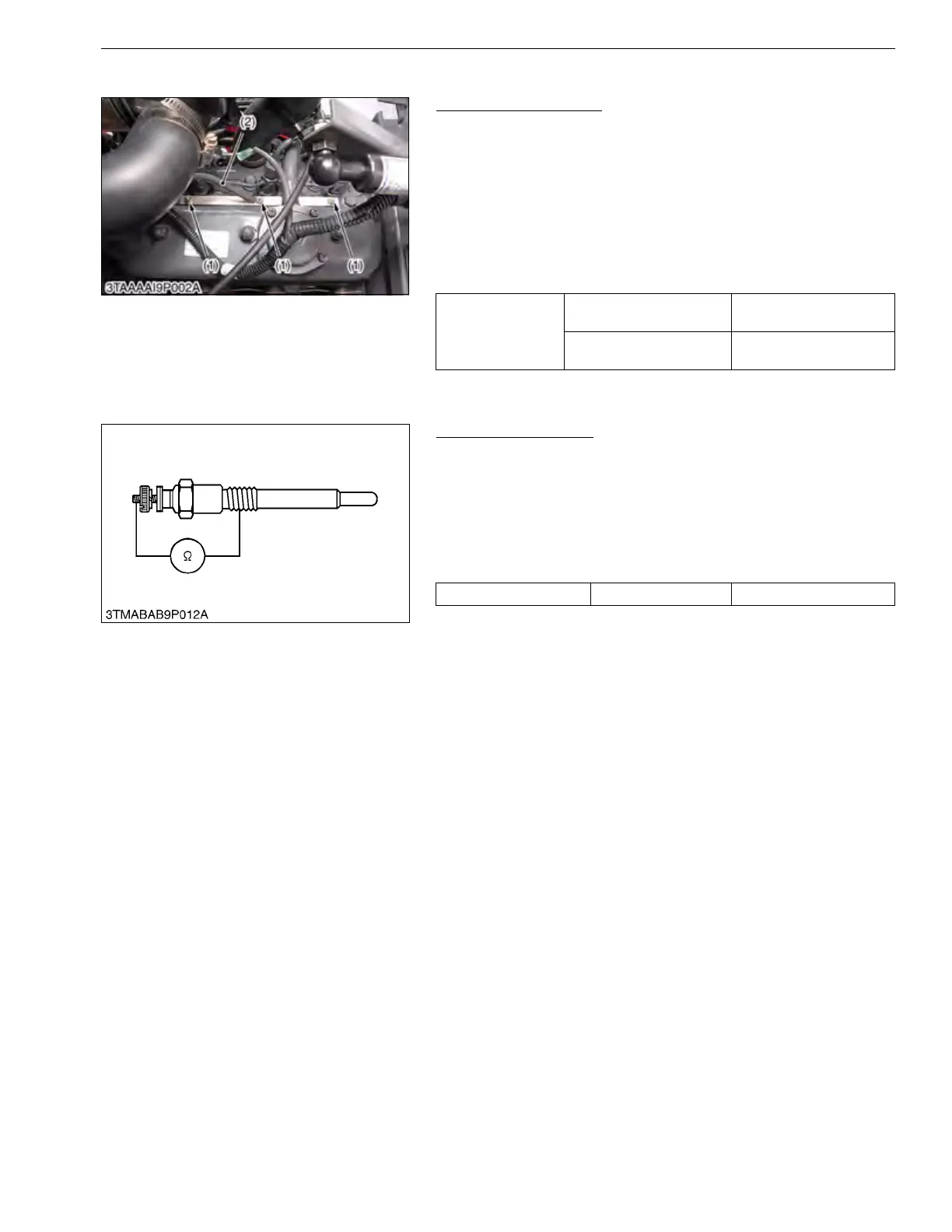

(4) Glow Plug
Lead Terminal Voltage
1. Disconnect the wiring lead (2) from the glow plug (1) after
turning the main switch off.
2. Turn the main switch key to the "PREHEAT" position, and
measure the voltage between the lead terminal and the chassis.
3. Turn the main switch key to the "START" position, and
measure the voltage with a voltmeter between the lead terminal
and the chassis.
4. If the voltage at either position differs from the battery voltage,
the wiring harness or main switch is faulty.
9Y1210855ELS0012US0
Glow Plug Continuity
1. Disconnect the lead from the glow plugs.
2. Measure the resistance with an ohmmeter between the glow
plug terminal and the chassis.
3. If 0 ohm is indicated, the screw at the tip of the glow plug and
the housing are short-circuited.
4. If the factory specification is not indicated, the glow plug is
faulty.
9Y1210855ELS0013US0
Voltage (Lead
terminal – Chassis)
Main switch key at
"PREHEAT"
Approx. battery voltage
Main switch key at
"START"
Approx. battery voltage
(1) Glow Plug (2) Wiring Lead (Positive)
Glow plug Factory specification Approx. 0.9 Ω
KiSC issued 02, 2017 A

Kubota BX1870 Specifications

General

Engine Type	Diesel
Engine Power	18 hp
Transmission	Hydrostatic
Fuel Capacity	6.6 gallons
Wheelbase	55.1 inches
Type	Sub-Compact Utility Tractor
Engine	Kubota D722
PTO Power	13.5 hp
Number of Cylinders	3
Cooling	Liquid
Drive	4WD
Drive Type	4WD
Width	44.5 inches
Hydraulic System Type	Open center
PTO Speed	540 RPM
Displacement	0.719 L
Fuel Tank Capacity	6.6 gallons
Gears	Infinite (2-range) forward and reverse
Front Tire Size	18x8.5-10
Rear Tire Size	26x12-12
