Kubota BX1870 Workshop Manual

FRONT LOADER
BX1870,BX2370,BX2670,LA203A,LA243A,RCK48(P),RCK54(P),RCK60B,RCK60D,RCK54D, WSM
8-S5
(2) Mounting Front Loader to Tractor
Side Frame and Hoses
1. Slowly drive the tractor between the loader side frames until the
rear portion of both side frames touches the main frames as
shown.
2. Stop the engine.
3. Connect four hoses with couplers to the fitting on the control
valve as indicated with color marks. Then connect the protective
caps and plugs to each other.
4. Start the engine and run at idle.
5. Slowly move the loader control lever to dump position to lower
the side frames into the main frames and engage the bosses of
the main frames to the guide bosses of the side frames. Then
lift the front wheels slightly with the loader.
IMPORTANT
• Do not try to lift the front wheels with the stand.
6. Stop the engine. Reinstall the mounting pins and secure them
with the locking rods.
7. Start the engine.
8. Raise the boom until the stand can be rotated.
9. Stop the engine.
10. Store the stand to their original positions and secure it with the
spring pin as shown.
11. Start the engine.
12. Lower the boom and level the bucket.
9Y1210855FLS0006US0

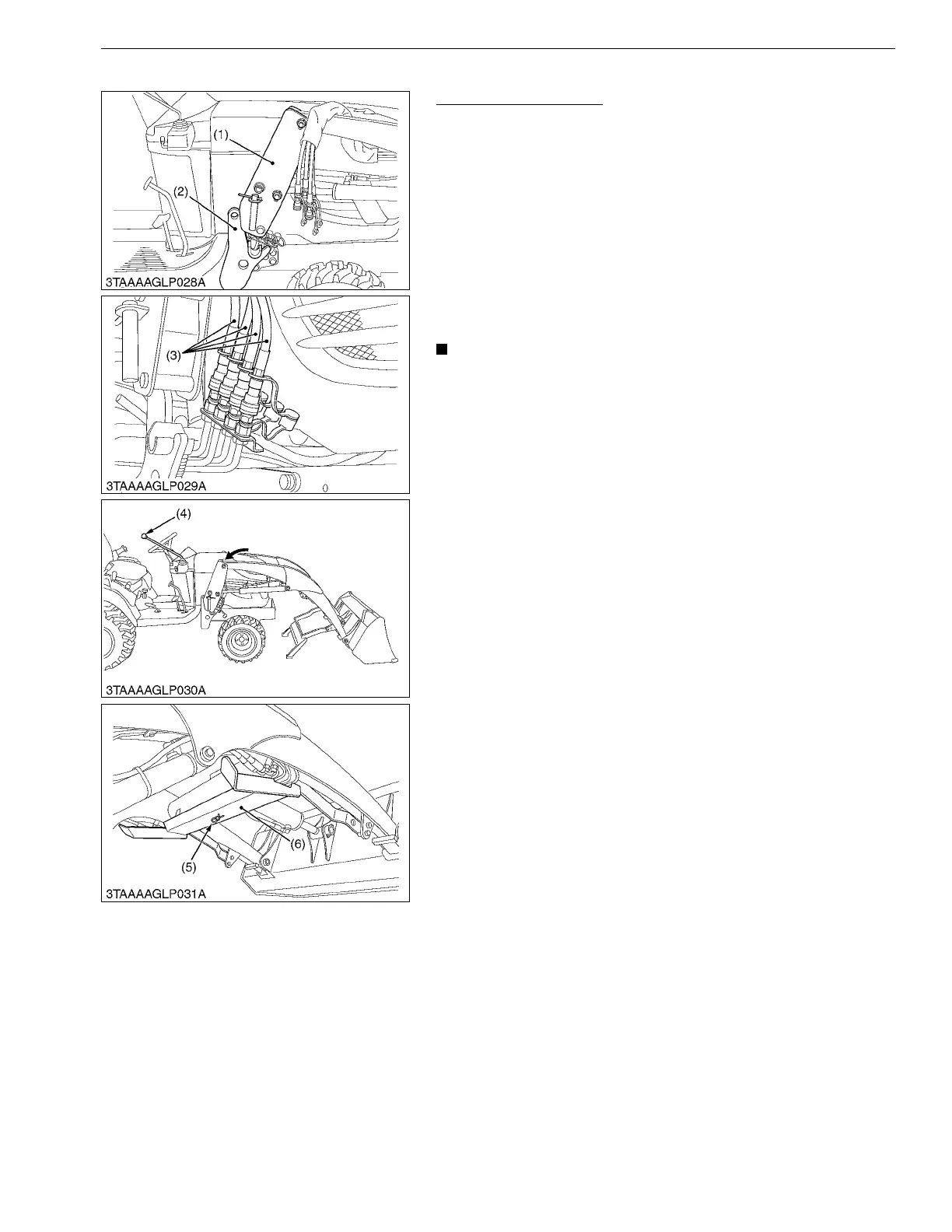

(1) Side Frame
(2) Main Frame
(3) Hose
(4) Loader Control Lever
(5) Spring Pin
(6) Stand
KiSC issued 02, 2017 A
