TRANSAXLE
BX1870,BX2370,BX2670,LA203A,LA243A,RCK48(P),RCK54(P),RCK60B,RCK60D,RCK54D, WSM
2-M14
[5] BRAKE SECTION
The mechanical wet disc brakes are used for the travelling brake. The brake is operated by the brake pedal (13)
through the mechanical linkages and provide stable braking and require little adjustment.
The brake body is incorporated in the transmission case and axle cover filled with transmission oil.
For greater braking force, four brake discs (11) are provided at the brake shaft, and the friction plates (5) fixed to
the transmission case is arranged between the brake discs (11).
Travelling Brake
When the brake pedal (13) is depressed, the brake rod (15) pulls the brake cam lever (8).
Therefore, the cam plates also moves and rides on the steel balls set in the grooves of the transmission case to
press the brake disc, the final gear shaft is braked by the frictional force generated by the cam plate and brake disc.
Parking Brake
When the parking brake is applied, the brake pedal (13) is locked by the parking brake lock pedal (14).
9Y1210855TXM0015US0

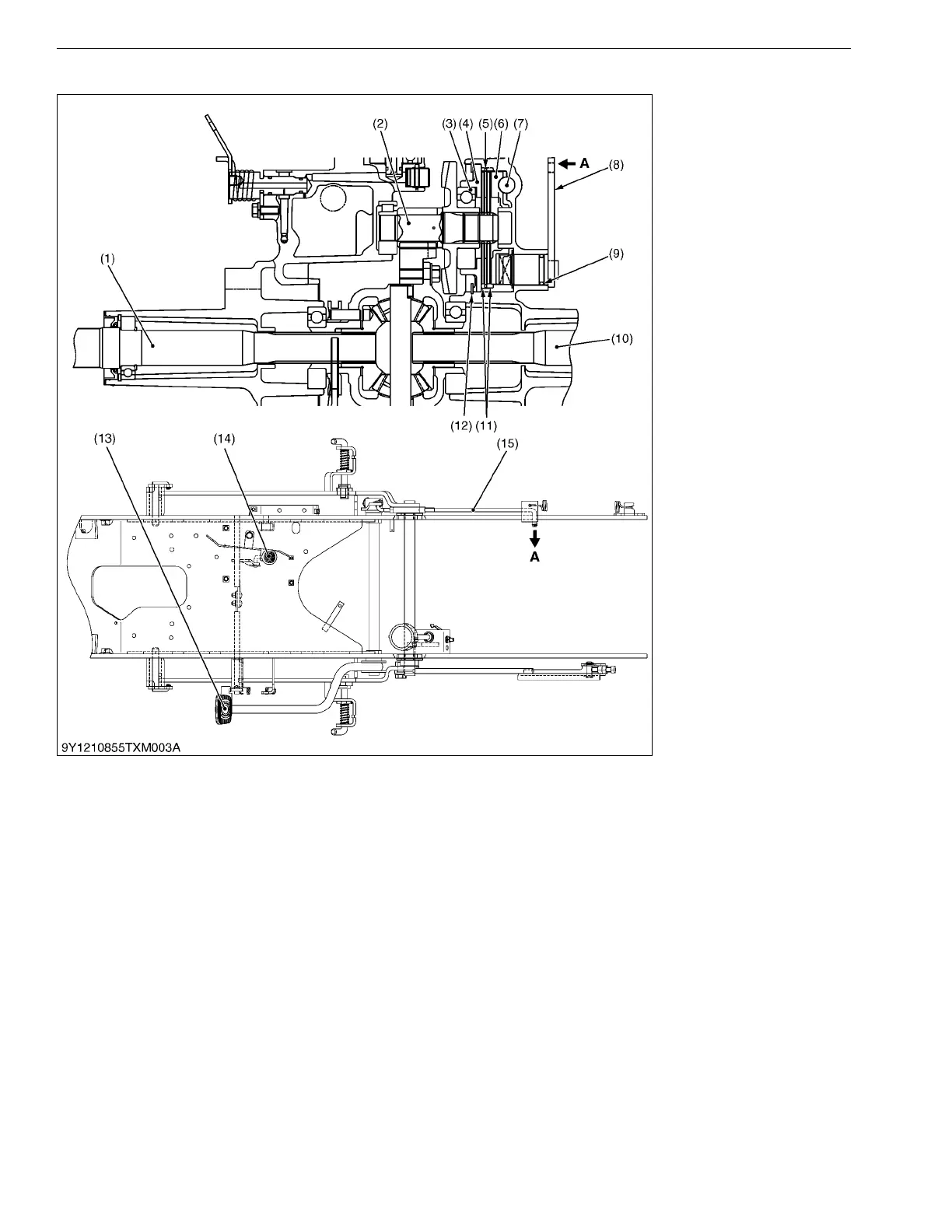

(1) Rear Axle LH
(2) Final Gear Shaft
(3) Shim
(4) Bearing Holder
(5) Friction Plate
(6) Actuator
(7) Steel Ball
(8) Cam Lever
(9) O-ring
(10) Rear Axle RH
(11) Brake Disc
(12) Internal Circlip
(13) Brake Pedal
(14) Parking Brake Lock Pedal
(15) Brake Rod
A: Connects with Brake Cam
Lever and Brake Rod
To Next Page
