HYDRAULIC SYSTEM
BX1870,BX2370,BX2670,LA203A,LA243A,RCK48(P),RCK54(P),RCK60B,RCK60D,RCK54D, WSM
5-S12
[4] DISASSEMBLING AND ASSEMBLING
(1) Hydraulic Cylinder and Control Valve

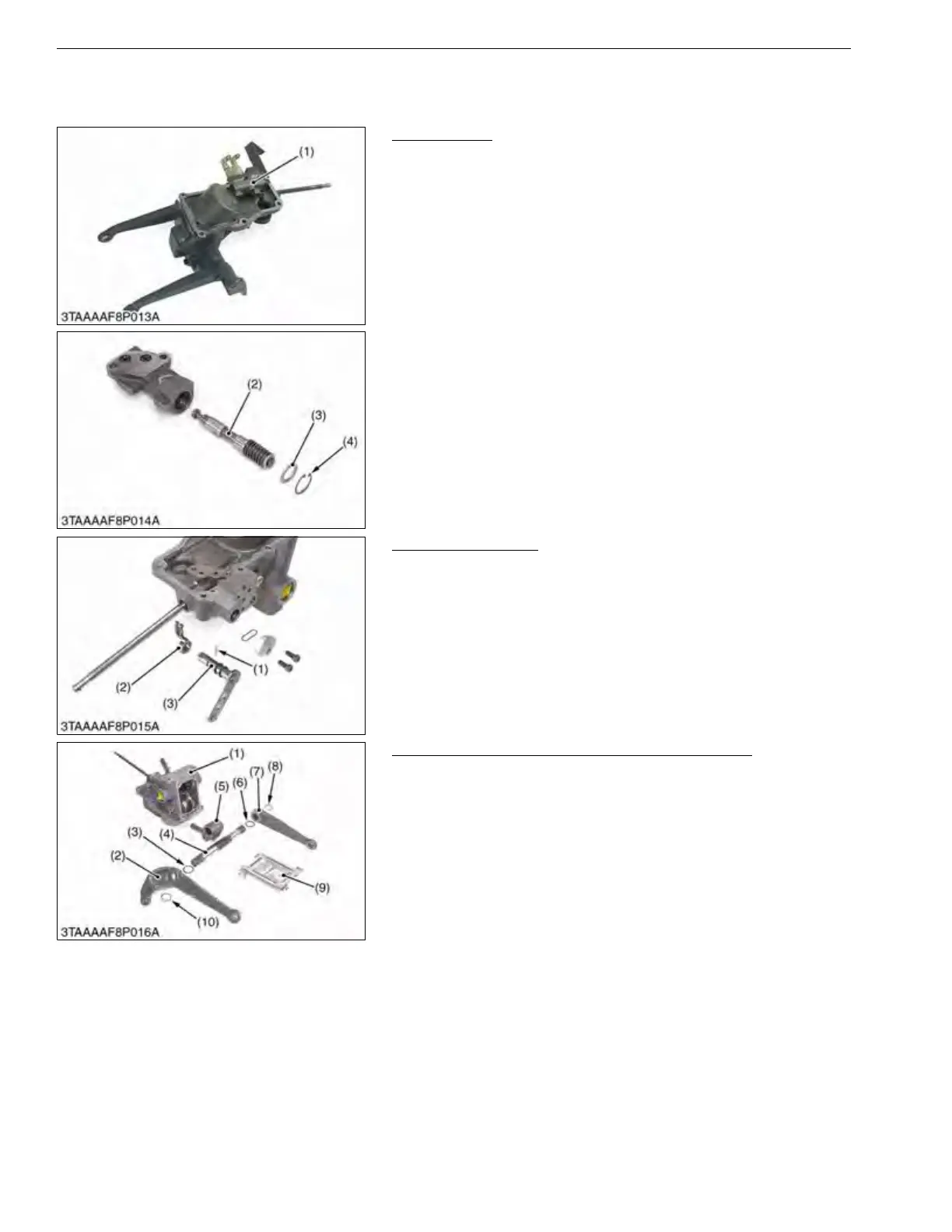

Control Valve
1. Remove the control valve (1).
2. Remove the internal snap ring (4) and draw out the spool (2).
9Y1210855HYS0012US0
Control Valve Lever
1. Pull out the pin (1).
2. Remove the control valve lever (3) and arm (2).
9Y1210855HYS0013US0
Lift Arm, Hydraulic Arm Shaft and Hydraulic Arm
1. Remove the external snap rings (8), (10), and remove the lift
arms (2), (7).
2. Draw out the hydraulic arm shaft (4).
(When reassembling)
• Align the alignment marks of the hydraulic arm (5) and hydraulic
arm shaft (4).
• Align the alignment marks of the lift arms (2), (7) and hydraulic
arm shaft (4).
• Apply grease to the right and left bushings and O-rings.
• Be careful not to damage the O-ring.
9Y1210855HYS0014US0
(1) Control Valve
(2) Spool
(3) Plain Washer
(4) Internal Snap Ring
(1) Pin
(2) Arm
(3) Control Valve Lever
(1) Hydraulic Cylinder Block
(2) Lift Arm LH
(3) O-ring
(4) Hydraulic Arm Shaft
(5) Hydraulic Arm
(6) O-ring
(7) Lift Arm RH
(8) External Snap Ring
(9) Cover
(10) External Snap Ring
