ELECTRICAL SYSTEM

BX1870,BX2370,BX2670,LA203A,LA243A,RCK48(P),RCK54(P),RCK60B,RCK60D,RCK54D, WSM

6-S28

[2] DISASSEMBLING AND ASSEMBLING

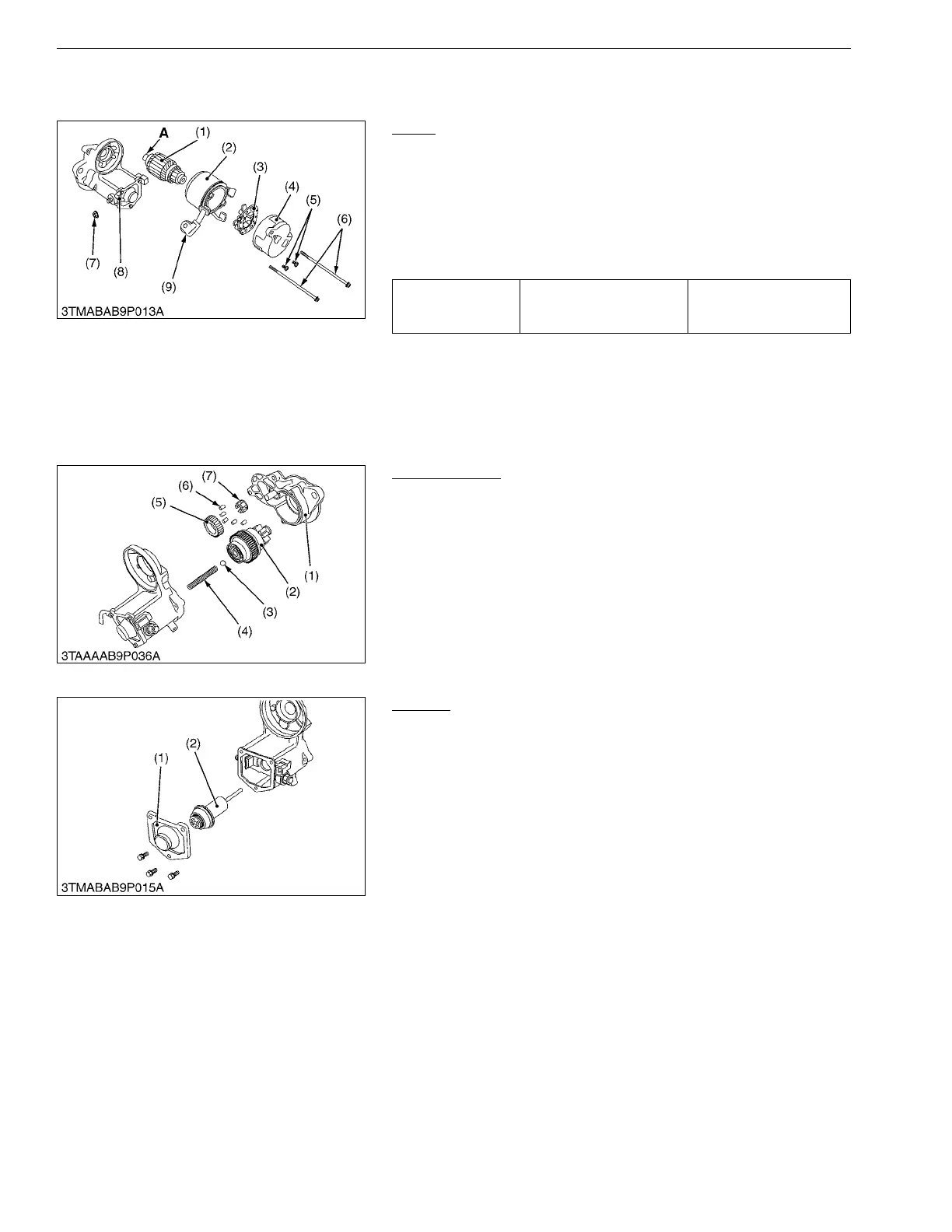

(1) Starter

Motor

1. Disconnect the connecting lead (9) from the magnet switch (8).

2. Remove the screws (6), and then separate the end frame (4),

yoke (2) and armature (1).

3. Remove the two screws (5), and then remove the brush holder

(3) from the end frame (4).

(When reassembling)

• Apply grease to the spline teeth "A" of the armature (1).

9Y1210855ELS0052US0

Magnet Switch

1. Remove the drive end frame (1) mounting screws.

2. Remove the overrunning clutch (2), ball (3), spring (4), gears

(5), rollers (6) and retainer (7).

(When reassembling)

• Apply grease to the gear teeth of the gears (5) and overrunning

clutch (2), and ball (3).

9Y1210855ELS0053US0

Plunger

1. Remove the end cover (1).

2. Remove the plunger (2).

9Y1210855ELS0054US0

Tightening torque Nut (7)

5.9 to 11.8 N·m

0.6 to 1.2 kgf·m

4.3 to 8.7 lbf·ft

(1) Armature

(2) Yoke

(3) Brush Holder

(4) End Frame

(5) Screw

(6) Screw

(7) Nut

(8) Magnet Switch

(9) Connecting Lead

A: Spline Teeth

(1) Drive End Frame

(2) Overrunning Clutch

(3) Ball

(4) Spring

(5) Gear

(6) Roller

(7) Retainer

(1) End Cover (2) Plunger
