Kubota BX1870 Workshop Manual

TRANSAXLE
BX1870,BX2370,BX2670,LA203A,LA243A,RCK48(P),RCK54(P),RCK60B,RCK60D,RCK54D, WSM
2-M11

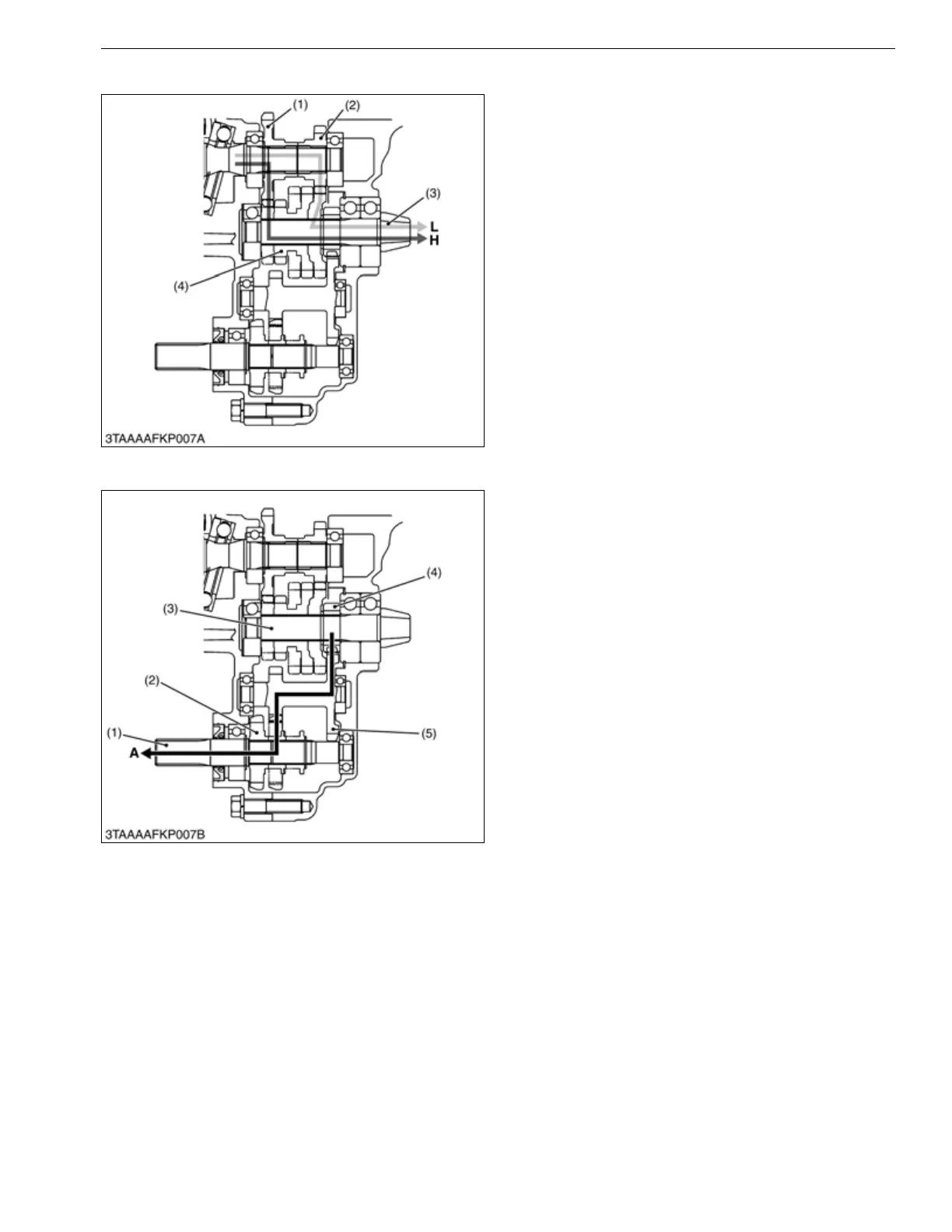

[2] RANGE GEAR SHIFT SECTION
Two kinds of power flow are selected by operating
the range gear shift lever to shift the 16T-24T shifter gear
(4) on the spiral bevel gear shaft (3).
 Low Range
17T Gear Shaft (2) → Shifter Gear (24T) (4) → Spiral
Bevel Pinion Shaft (3).
 High Range
25T Gear (1) → Shifter Gear (16T) (4) → Spiral
Bevel Pinion Shaft (3).
9Y1210855TXM0011US0
[3] FRONT WHEEL DRIVE SECTION
2-wheel drive or 4-wheel drive is selected by
changing the position of 19T shifter gear (2) with the front
wheel drive lever.
 Front Wheel Drive "Disengaged"
When the front wheel drive lever is set to
"Disengaged" position, the 19T shifter gear (2) is
neutral and power is not transmitted to the front wheel
drive shaft (1).
 Front Wheel Drive "Engaged"
When the front wheel drive lever is set to "Engaged"
position, the 19T shifter gear (2) slides to the right to
engage with 13T-25T gear shaft (5). Therefore, the
power from spiral bevel pinion shaft (3) is transmitted to
the front wheel drive shaft (1) through the gears.
9Y1210855TXM0012US0
(1) 25T Gear
(2) 17T Gear
(3) Spiral Bevel Pinion Shaft
(4) 16T-24T Shifter Gear
L: Low Range
H: High Range
(1) Front Wheel Drive Shaft
(2) 19T Shifter Gear
(3) Spiral Bevel Pinion Shaft
(4) 12T Gear
(5) 13T-25T Gear Shaft
A: Front Wheel Drive
"Engaged"
KiSC issued 02, 2017 A

Kubota BX1870 Specifications

General

Engine Type	Diesel
Engine Power	18 hp
Transmission	Hydrostatic
Fuel Capacity	6.6 gallons
Wheelbase	55.1 inches
Type	Sub-Compact Utility Tractor
Engine	Kubota D722
PTO Power	13.5 hp
Number of Cylinders	3
Cooling	Liquid
Drive	4WD
Drive Type	4WD
Width	44.5 inches
Hydraulic System Type	Open center
PTO Speed	540 RPM
Displacement	0.719 L
Fuel Tank Capacity	6.6 gallons
Gears	Infinite (2-range) forward and reverse
Front Tire Size	18x8.5-10
Rear Tire Size	26x12-12
