Kubota BX1870 Workshop Manual

TRANSAXLE
BX1870,BX2370,BX2670,LA203A,LA243A,RCK48(P),RCK54(P),RCK60B,RCK60D,RCK54D, WSM
2-M9

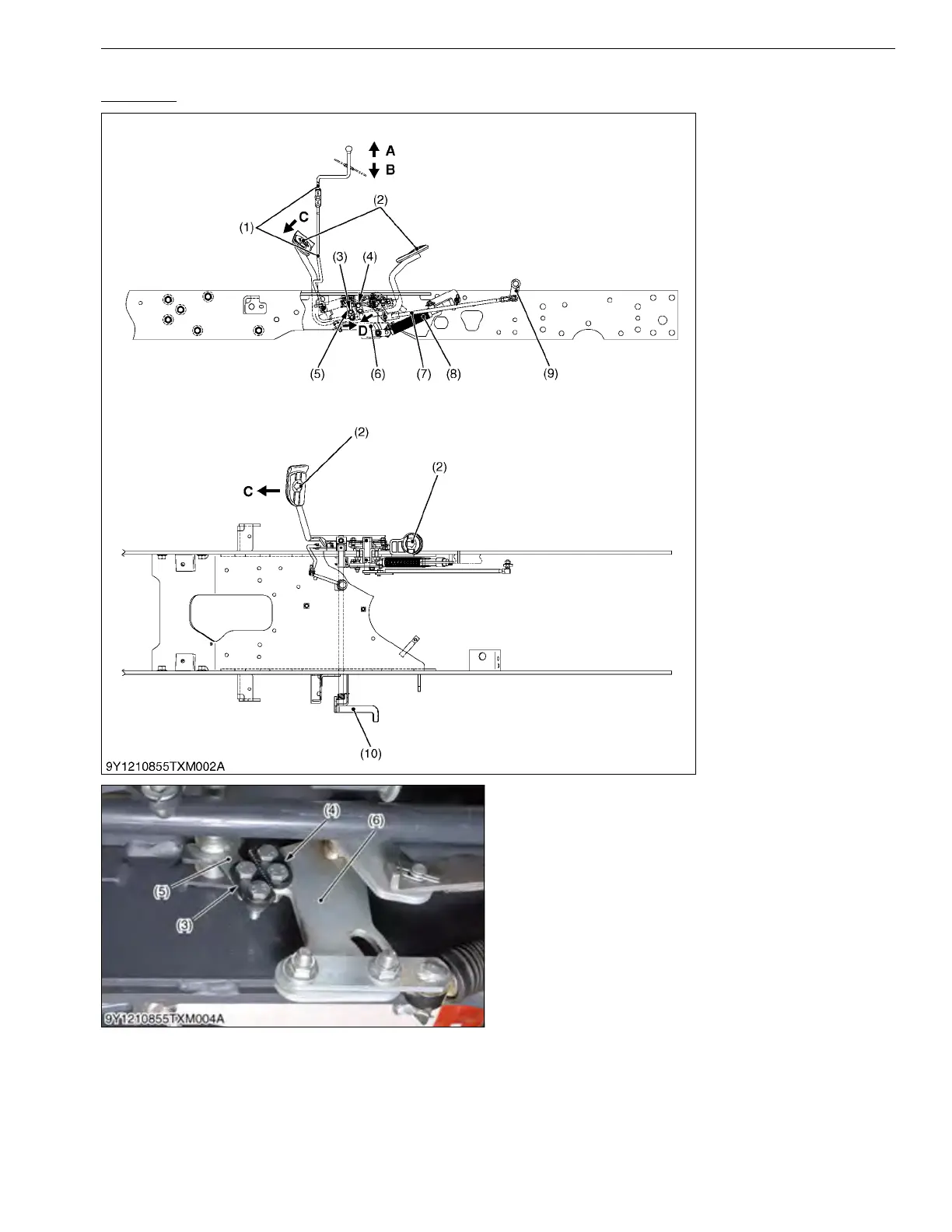

(4) Speed Set Linkage
Speed Set
When pushing and holding the speed set rod (1) and
depressing the speed control pedal (2), the desired
speed is set.
When pushing the speed set rod (1), the cruise plate
(5) is rotated counter clockwise.
When depressing the speed control pedal (2)
forward, the HST pedal link clockwise.
Since both the cruise lock (3) of the cruise plate (5)
and the cruise lock (4) of HST pedal link (6) are locked,
the speed control pedal (2) is held at a selected position.
9Y1210855TXM0009US0
(1) Speed Set Rod
(2) Speed Control Pedal
(3) Cruise Lock
(4) Cruise Lock
(5) Cruise Plate
(6) HST Pedal Link
(7) Speed Change Rod
(8) Damper
(9) Trunnion Arm
(10) Release Plate
A: Speed Set Rod "OFF"
B: Speed Set Rod "ON"
C: Speed Control Pedal
"Forward"
D: Cruise Lock "Locked"
KiSC issued 02, 2017 A

Kubota BX1870 Specifications

General

Engine Type	Diesel
Engine Power	18 hp
Transmission	Hydrostatic
Fuel Capacity	6.6 gallons
Wheelbase	55.1 inches
Type	Sub-Compact Utility Tractor
Engine	Kubota D722
PTO Power	13.5 hp
Number of Cylinders	3
Cooling	Liquid
Drive	4WD
Drive Type	4WD
Width	44.5 inches
Hydraulic System Type	Open center
PTO Speed	540 RPM
Displacement	0.719 L
Fuel Tank Capacity	6.6 gallons
Gears	Infinite (2-range) forward and reverse
Front Tire Size	18x8.5-10
Rear Tire Size	26x12-12
