Kubota BX1870 Workshop Manual

INFORMATION
BX1870,BX2370,BX2670,LA203A,LA243A,RCK48(P),RCK54(P),RCK60B,RCK60D,RCK54D, WSM
I-17

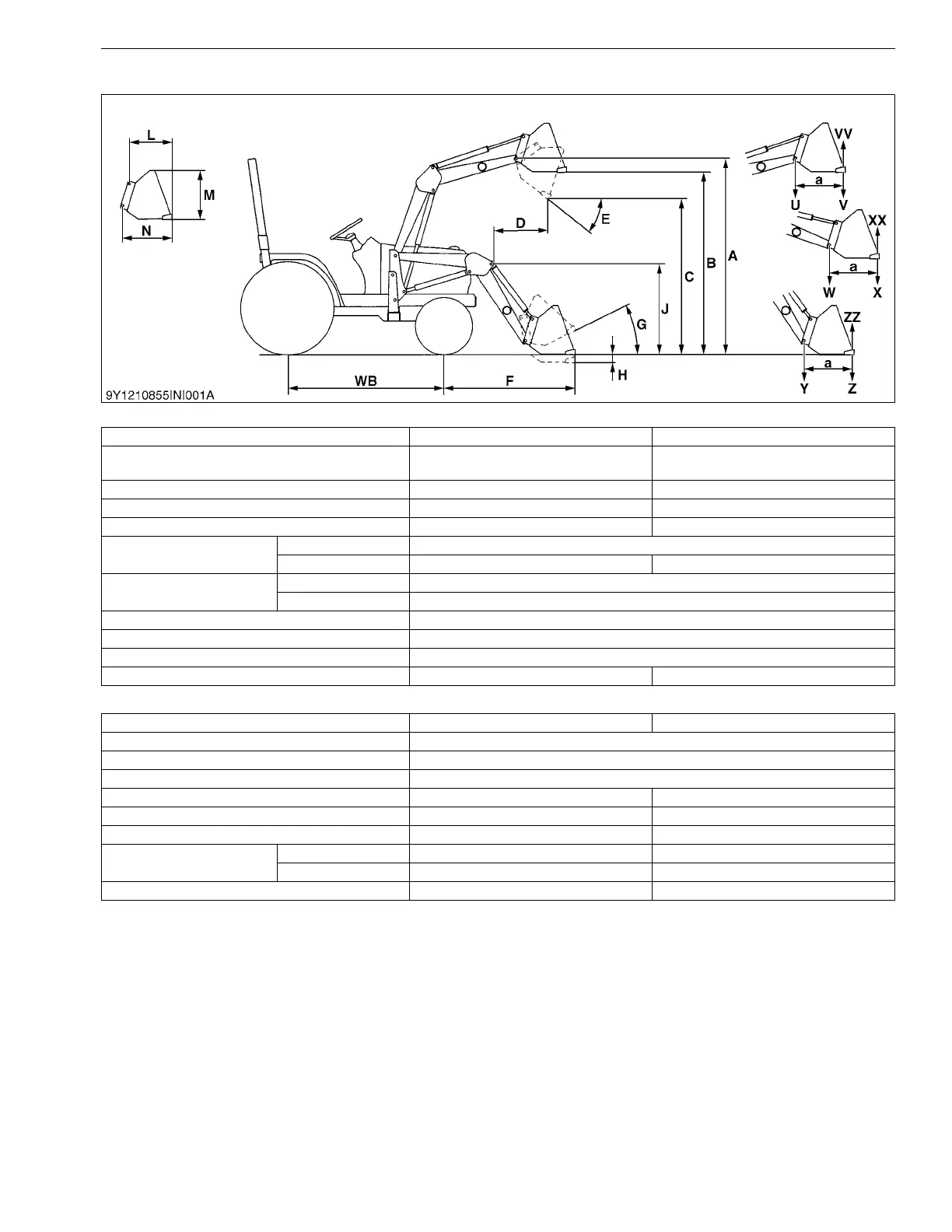

[3] FRONT LOADER
Loader Specifications
Bucket Specifications
9Y1210855INI0013US0
Loader Model LA203A LA243A
Tractor Model BX1870D (BX1860)
BX2370D and BX2670D
(BX2360 and BX2660)
Wheel Base (WB) 1340 mm (52.8 in.) 1400 mm (55.1 in.)
Front Tires 16 × 7.5-8 18 × 8.5-10
Rear Tires 24 × 12-12 26 × 12-12
Boom Cylinder
Bore 40 mm (1.57 in.)
Stroke 281 mm (11.1 in.) 326 mm (12.8 in.)
Bucket Cylinder
Bore 65 mm (2.56 in.)
Stroke 204 mm (8.03 in.)
Control Valve One detente float position, two stage bucket dump, power beyond circuit
Rated Flow 14 L/min. (3.7 U.S.gals/min., 3.1 Imp.gals/min.)
Maximum Pressure 12.3 MPa (125 kgf/cm
2
, 1778 psi)
Net Weight (Approximate) 157 kg (346 lbs) 170 kg (375 lbs)
Loader Model LA203A LA243A
Model SQUARE 48"
Type Rigid
Width 1219 mm (48.0 in.)
Depth L 455 mm (17.9 in.) 495 mm (19.5 in.)
Height M 445 mm (17.5 in.) 465 mm (18.3 in.)
Length N 498 mm (19.6 in.) 538 mm (21.2 in.)
Capacity
Struck 0.12 m
3
(4.2 cu.ft.) 0.14 m
3
(4.9 cu.ft.)
Heaped 0.14 m
3
(4.9 cu.ft.) 0.17 m
3
(6.1 cu.ft.)
Weight 56 kg (123 lbs) 60 kg (132 lbs)
KiSC issued 02, 2017 A

Kubota BX1870 Specifications

General

Engine Type	Diesel
Engine Power	18 hp
Transmission	Hydrostatic
Fuel Capacity	6.6 gallons
Wheelbase	55.1 inches
Type	Sub-Compact Utility Tractor
Engine	Kubota D722
PTO Power	13.5 hp
Number of Cylinders	3
Cooling	Liquid
Drive	4WD
Drive Type	4WD
Width	44.5 inches
Hydraulic System Type	Open center
PTO Speed	540 RPM
Displacement	0.719 L
Fuel Tank Capacity	6.6 gallons
Gears	Infinite (2-range) forward and reverse
Front Tire Size	18x8.5-10
Rear Tire Size	26x12-12
