TRANSAXLE
BX1870,BX2370,BX2670,LA203A,LA243A,RCK48(P),RCK54(P),RCK60B,RCK60D,RCK54D, WSM
2-S16
[2] PREPARATION

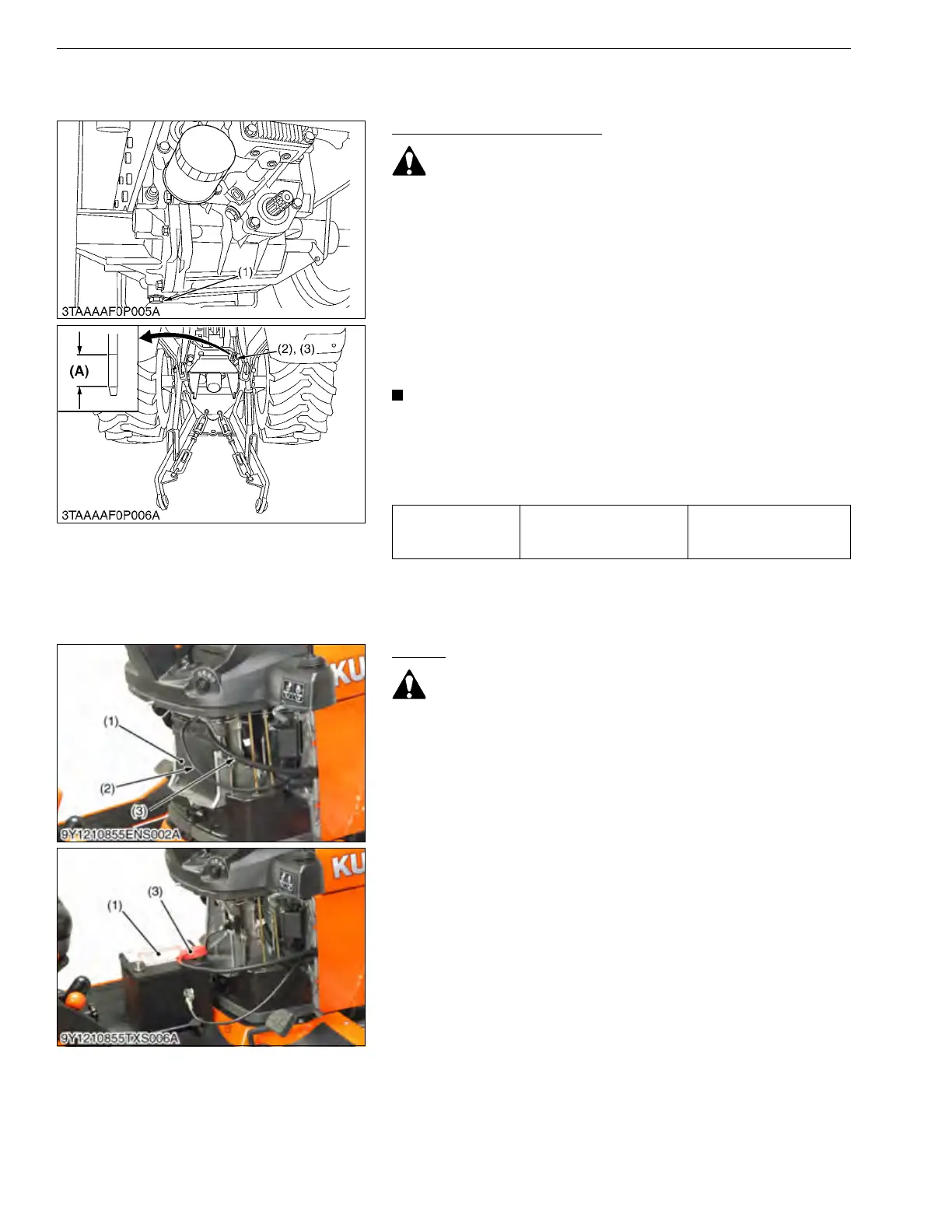

(1) Separating Transaxle
Draining Transmission Fluid
• Be sure to stop the engine before checking and changing
the transmission fluid.
1. Place oil pan under the tractor.
2. Remove the drain plug (1) at the bottom of the transmission
case.
3. Drain the transmission fluid and reinstall the drain plug.
(When refilling)
• Fill new oil from filling port after removing the filling plug (2) up
to the upper notch on the dipstick (3).
• After running the engine for few minutes, stop it and check the
oil level again, if low, add oil to prescribed level.
• Do not operate the tractor immediately after changing the
transmission fluid.
• Run the engine at medium speed for a few minutes to
prevent damage to the transmission.
• Do not mix different brands oil together.
9Y1210855TXS0014US0
Battery
• When disconnecting the battery cables, disconnect the
negative cable from the battery first. When connecting,
connect the positive cable to the battery first.
1. Remove the under panel.
2. Disconnect the negative cable (2) from the battery (1).
3. Disconnect the positive cable (3) from the battery (1) and
remove the battery (1).
9Y1210855TXS0015US0
Transmission fluid Capacity
11.6 L
3.1 U.S.gals
2.6 Imp.gals
(1) Drain Plug
(2) Filling Plug
(3) Dipstick
(A) Oil level is acceptable within this
range.
(1) Battery
(2) Negative Cable
(3) Positive Cable
To Next Page
