Kubota BX1870 Workshop Manual

GENERAL
BX1870,BX2370,BX2670,LA203A,LA243A,RCK48(P),RCK54(P),RCK60B,RCK60D,RCK54D, WSM
G-23
(3) Check Points of Every 50 Hours
Checking Engine Start System
WARNING
To avoid personal injury or death:
• Do not allow anyone near the tractor while testing.
• If the tractor does not pass the test do not operate the
tractor.
 Preparation before testing.
1. Sit on the operator's seat.
2. Set the parking brake and stop the engine.
3. Shift the range gear shift lever (1) to "NEUTRAL" position.
4. Check the speed control pedal "NEUTRAL" position.
5. Shift the PTO clutch control lever (2) to "OFF" position.
 Test 1: Switch for the speed control pedal
1. Make sure that the range gear shift lever (1) is set in
"NEUTRAL" position.
2. Depress the speed control pedal (3).
3. Turn the key to "START" position.
4. The engine must not crank.
 Test 2: Switch for the PTO clutch lever
1. Make sure that the range gear shift lever (1) is set in
"NEUTRAL" position.
2. Make sure that the speed control pedal (3) is set in "NEUTRAL"
position.
3. Shift the PTO clutch control lever (2) to "ON" position.
4. Turn the key to "START" position.
5. The engine must not crank.

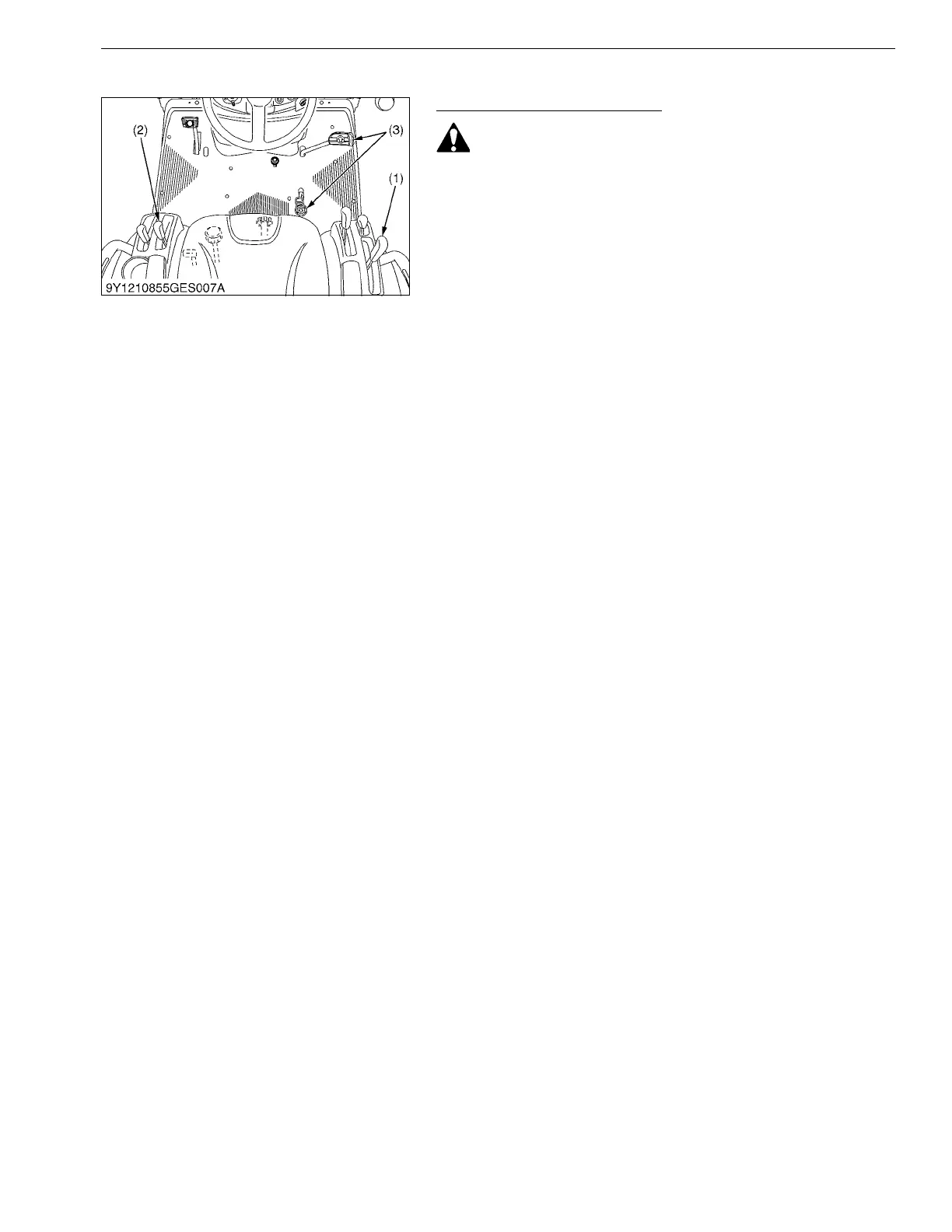

9Y1210855GEG0020US0
(1) Range Gear Shift Lever
(2) PTO Clutch Control Lever
(3) Speed Control Pedal
KiSC issued 02, 2017 A

Kubota BX1870 Specifications

General

Engine Type	Diesel
Engine Power	18 hp
Transmission	Hydrostatic
Fuel Capacity	6.6 gallons
Wheelbase	55.1 inches
Type	Sub-Compact Utility Tractor
Engine	Kubota D722
PTO Power	13.5 hp
Number of Cylinders	3
Cooling	Liquid
Drive	4WD
Drive Type	4WD
Width	44.5 inches
Hydraulic System Type	Open center
PTO Speed	540 RPM
Displacement	0.719 L
Fuel Tank Capacity	6.6 gallons
Gears	Infinite (2-range) forward and reverse
Front Tire Size	18x8.5-10
Rear Tire Size	26x12-12
