Kubota BX1870 Workshop Manual

ELECTRICAL SYSTEM
BX1870,BX2370,BX2670,LA203A,LA243A,RCK48(P),RCK54(P),RCK60B,RCK60D,RCK54D, WSM
6-S12

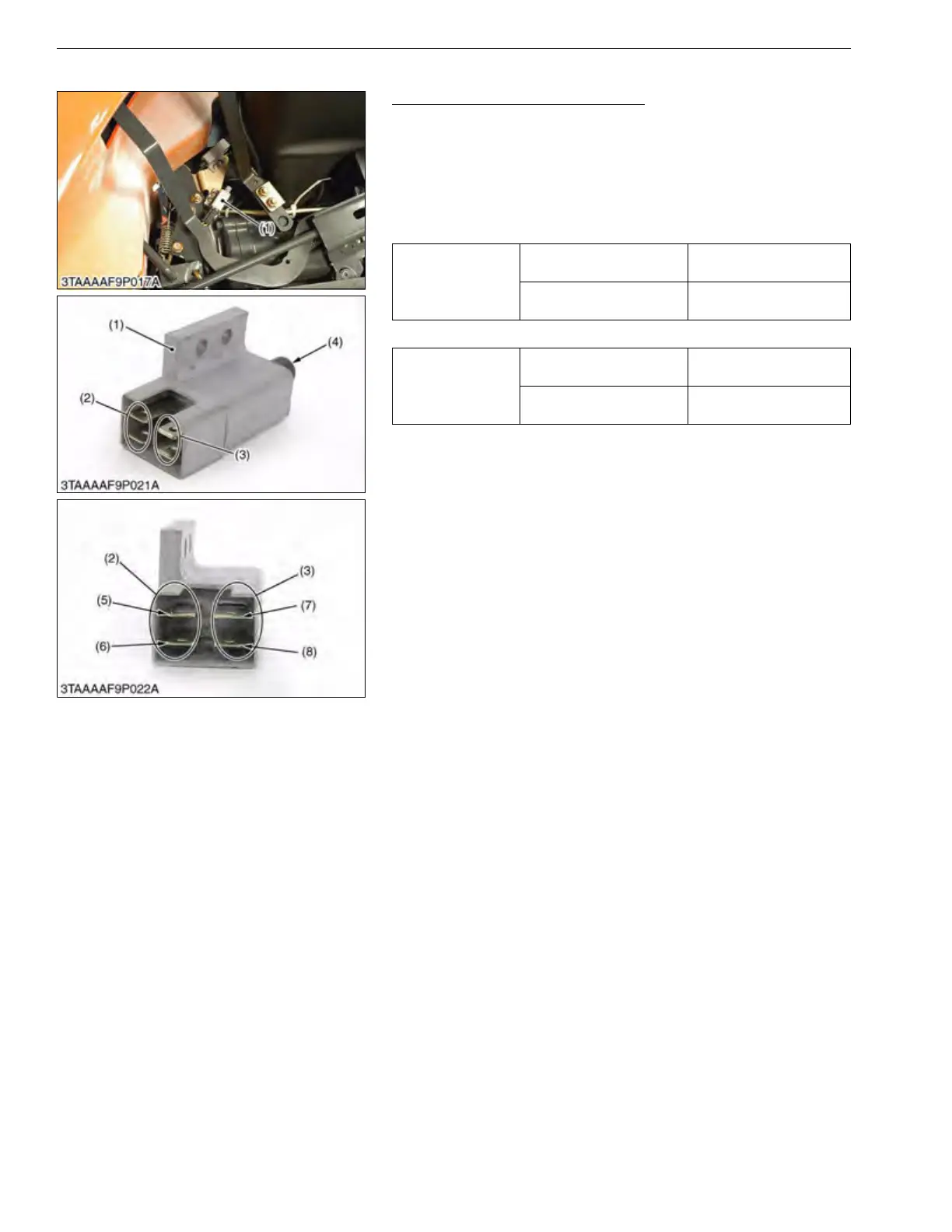

(5) Safety Switch
PTO Shift Lever Switch Continuity
1. Remove the left rear wheel.
2. Remove the PTO shift lever switch (1).
3. Measure the resistance with an ohmmeter across the switch
terminals.
4. If the resistance values specified below are not indicated, the
safety switch is faulty.
Plunger is pushed into the switch body
Plunger is released
9Y1210855ELS0014US0
Resistance
1 terminal (5) –
2 terminal (6)
0 Ω
3 terminal (7) –
4 terminal (8)
0 Ω
Resistance
1 terminal (5) –
2 terminal (6)
Infinity
3 terminal (7) –
4 terminal (8)
Infinity
(1) PTO Shift Lever Switch
(2) 2P Connector (LH)
(3) 2P Connector (RH)
(4) Plunger
(5) 1 Terminal
(6) 2 Terminal
(7) 3 Terminal
(8) 4 Terminal
KiSC issued 02, 2017 A

Kubota BX1870 Specifications

General

Engine Type	Diesel
Engine Power	18 hp
Transmission	Hydrostatic
Fuel Capacity	6.6 gallons
Wheelbase	55.1 inches
Type	Sub-Compact Utility Tractor
Engine	Kubota D722
PTO Power	13.5 hp
Number of Cylinders	3
Cooling	Liquid
Drive	4WD
Drive Type	4WD
Width	44.5 inches
Hydraulic System Type	Open center
PTO Speed	540 RPM
Displacement	0.719 L
Fuel Tank Capacity	6.6 gallons
Gears	Infinite (2-range) forward and reverse
Front Tire Size	18x8.5-10
Rear Tire Size	26x12-12
