PRESCRIBE Command Reference
6
If an attempt is made to create figures outside of the printable area using these
commands, the coordinates are adjusted automatically so that the figures print inside the
printable area. As in the example below, this can produce printed results different from
what is expected.
Printing extremely complex figures can exhaust printing system memory. Downloadable
fonts can be particularly taxing on printing system memory, producing unexpected print
results. It may be possible to correct the problem by removing some of the downloaded
fonts or by simplifying the graphic. To determine current memory usage, refer to a status
page.
Path Mode Graphics Commands
The following commands provide a variety of path construction operators and painting
operators for stroking or filling paths.
Command Function Page
ARC draw filled-in ARC 27
BLK draw filled-in BLocK 39
BOX draw BOX 41
CIR draw CIRcle 51
DAP Draw to Absolute Position 72
DPAT select Dashed PATtern 77
DRP Draw to Relative Position 79
DRPA Draw to Relative Position specified by Angle 81
DZP Draw to Zero-relative Position 86
FPAT generate Fill PATtern 109
GPAT set Gray PATtern 121
PAT select fill PATtern 182
PIE draw PIE chart 197
SPD Set Pen Diameter 314
XPAT generate eXpanded fill PATtern 389
Command Function Page
CLIP CLIP current path 53
CLPR CLiP Rectangular area 54
CLSP CLoSe Path 56
CPTH Character PaTH 63

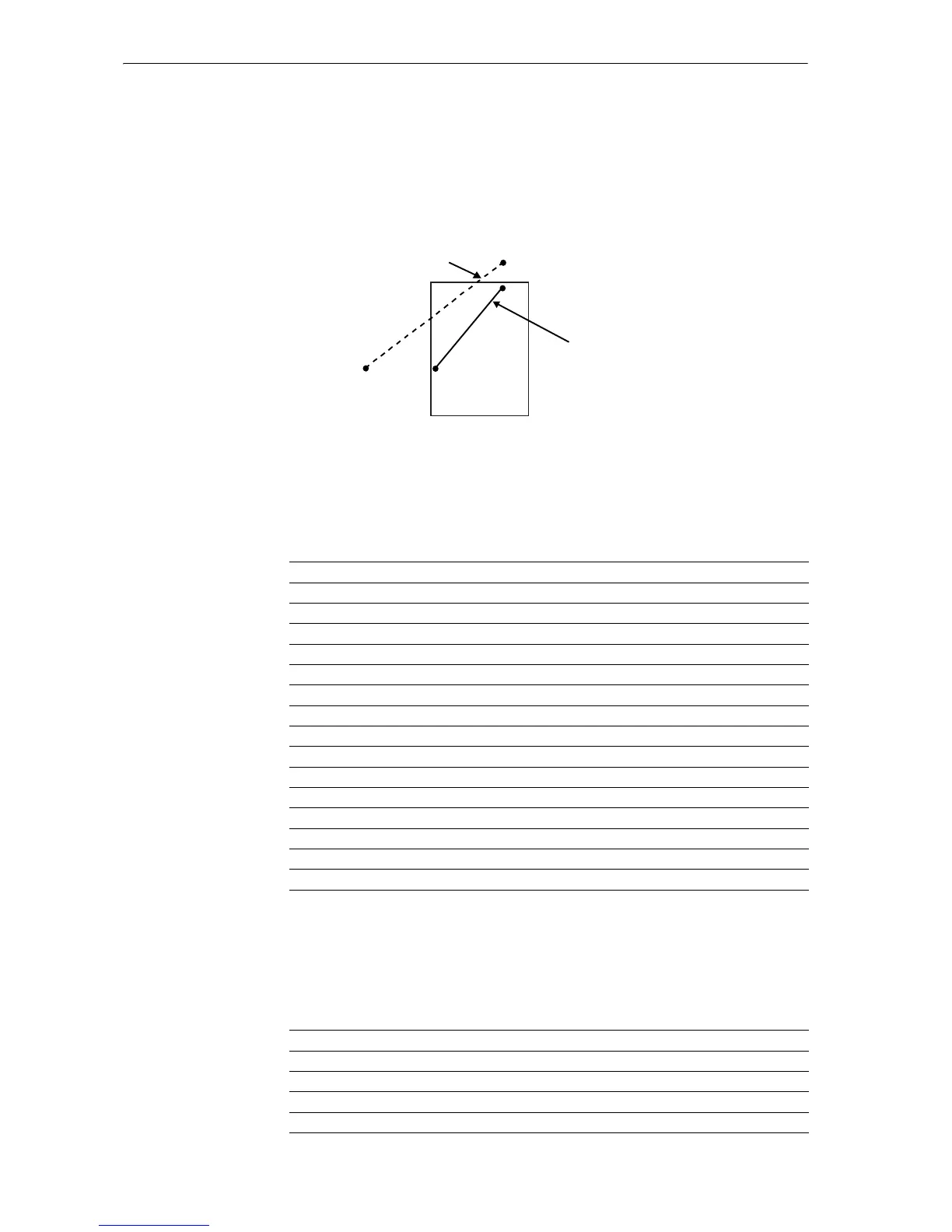

Print settings according to command
Actual printed result
To Next Page
